Special Tool(s)

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S) SPECIFICATION

G03982912
 Anglemaster II Driveline Inclinometer 164-R2402 or equivalent
CAUTION: Prior to checking driveline angularity, inspect the U-joints for correct operation.
NOTE: An incorrect driveline angle can cause a vibration or shudder. For additional information, refer to NOISE, VIBRATION & HARSHNESS .
  1. Check the vehicle for evidence of overload or sagging. Check for specified air pressures in all four tires.
  2. Normalize the suspension.
  3. Drive the vehicle onto a drive-on hoist or back onto a front-end alignment rack.
  4. Inspect the suspension and chassis. Verify that the vehicle curb position ride height is within specification. For additional information, refer to SUSPENSION SYSTEM-GENERAL INFORMATION .
    • Measure the curb position ride height with the vehicle empty and all fluids full.

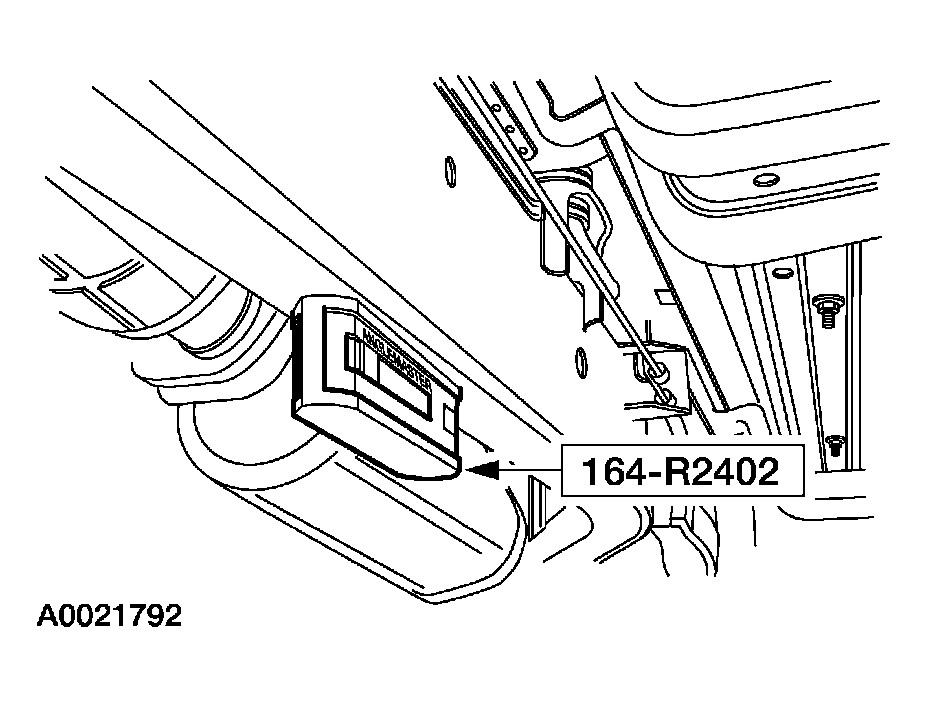

  5. Place the special tool on a clean, flat level section on the bottom of the frame rail. Press the ALT ZERO button to calibrate the inclinometer to the vehicle.
    Fig 1: Locating Special Tool Flush Against Bottom Of Driveshaft
    G03971100Courtesy of FORD MOTOR CO.

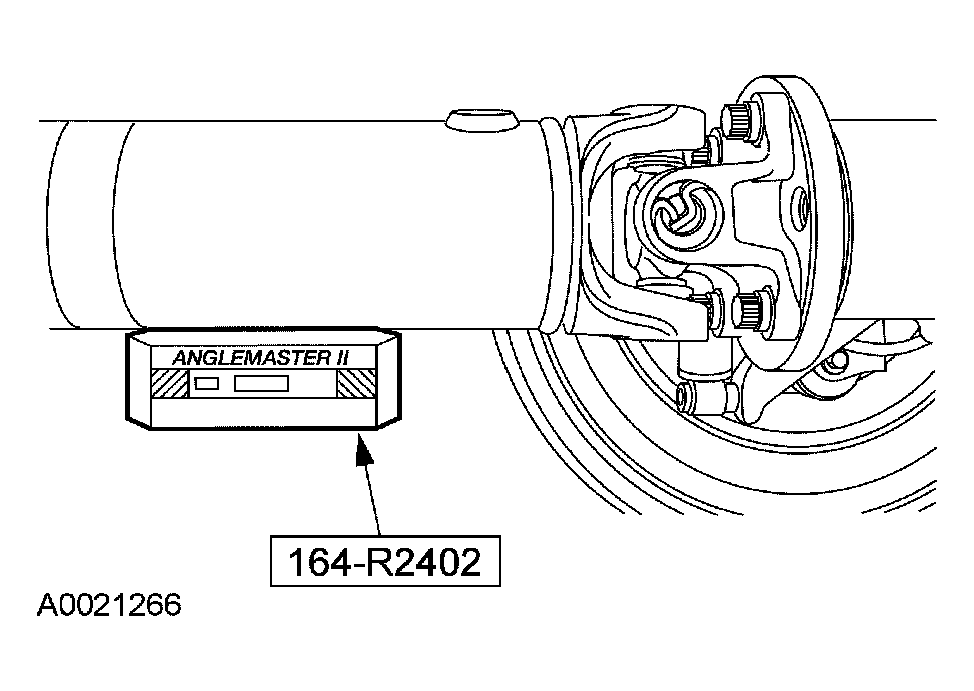

  6. For the driveshaft angle reading, place the special tool flush against the bottom of the driveshaft. Check and record the reading. Compare the results with the correct angles. For additional information, refer to SPECIFICATIONS .
    Fig 2: Checking And Recording Reading
    G03878437Courtesy of FORD MOTOR CO.

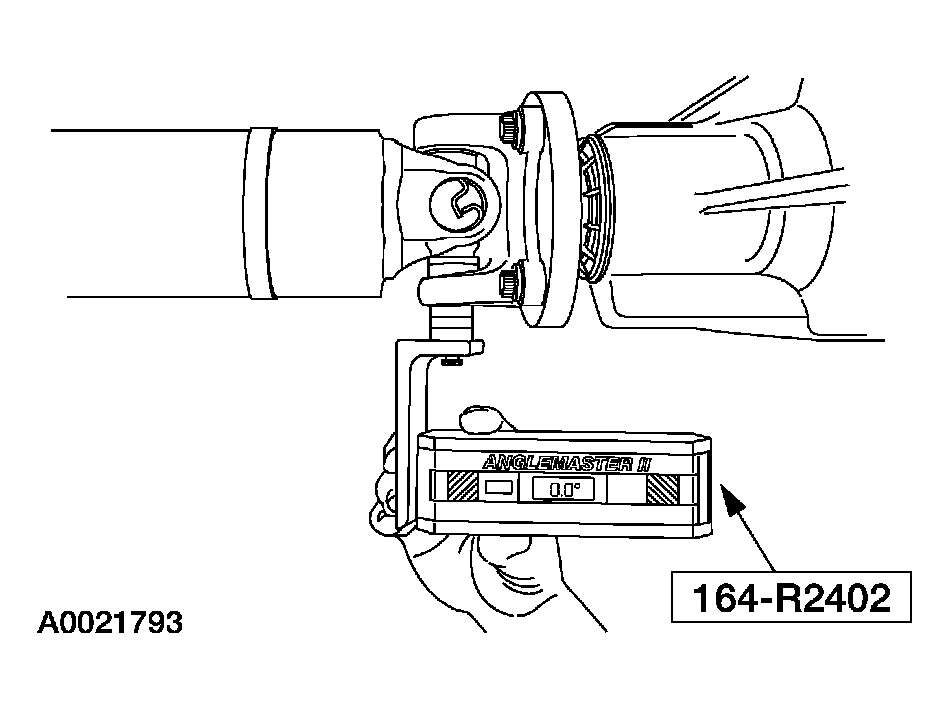

  7. To check the pinion angle, rotate the driveshaft so that the rear axle pinion flange yoke ear is parallel to the floor. Remove the U-joint snap ring, then install the special tool. Check and record the pinion angle reading.
    • If the angle is not within specifications, repair or adjust to obtain the correct angle. Inspect the rear suspension, rear axle, rear axle mounting or the frame for wear or damage.
      Fig 3: Inspecting Rear Suspension, Rear Axle And Rear Axle Mounting
      G03971102Courtesy of FORD MOTOR CO.

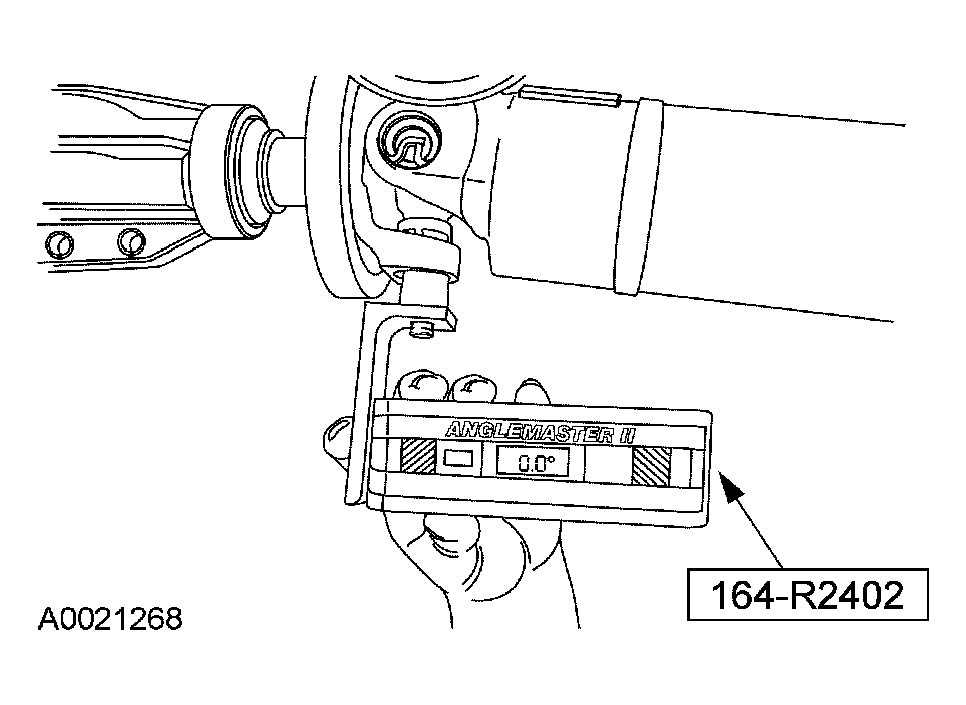

  8. To check the engine angle, rotate the driveshaft so that the slip yoke ear is parallel to the floor. Remove the U-joint snap ring, then install the special tool. Check and record the engine angle reading.
    • If the angle is not within specifications, repair or adjust to obtain the correct angles. Inspect the powertrain/drivetrain mounts or frame rails for wear or damage.
      Fig 4: Inspecting Powertrain/Drivetrain Mounts Or Frame Rails For Wear Or Damage
      G03878439Courtesy of FORD MOTOR CO.
