Wheel Studs - Semi-Floating Axle: Removal

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Never use a hammer to remove the wheel stud or damage to the axle flange, wheel bearing or hub bearing can occur.

    All semi-floating axles

  1. Remove the rear disc brake caliper anchor plate. For additional information, refer to REAR DISC BRAKE .
  2. Index-mark and remove the rear brake disc.
    Fig 1: Identifying Index-Mark
    G03883225Courtesy of FORD MOTOR CO.

    3. Dana 60 semi-floating axles

  3. Remove the parking brake shoe adjusting screw spring.

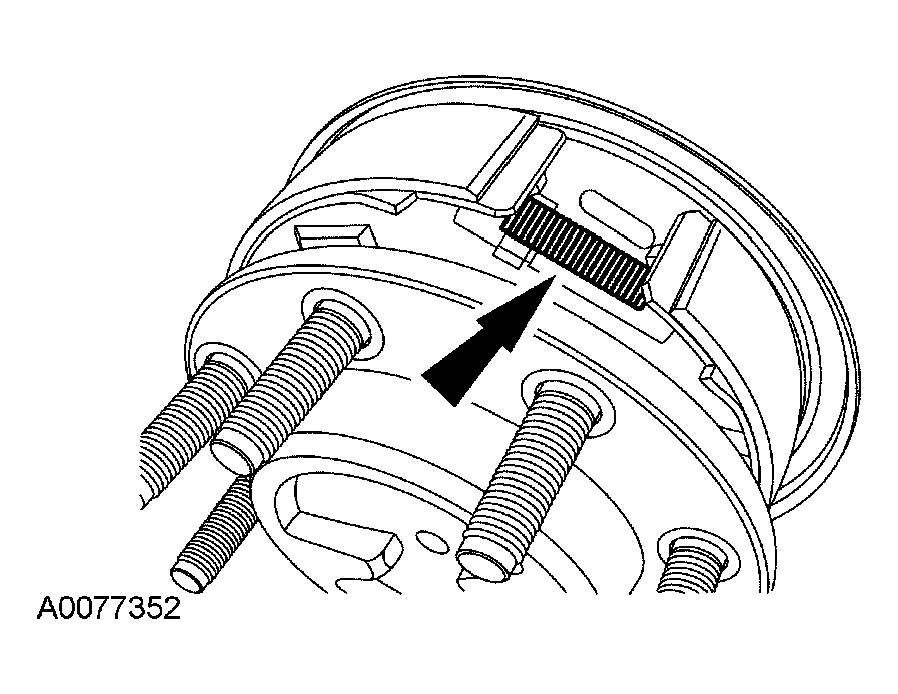

    Fig 2: Removing Parking Brake Shoe Adjusting Screw Spring
    G03883226Courtesy of FORD MOTOR CO.
  4. Remove the parking brake shoe adjusting screw.

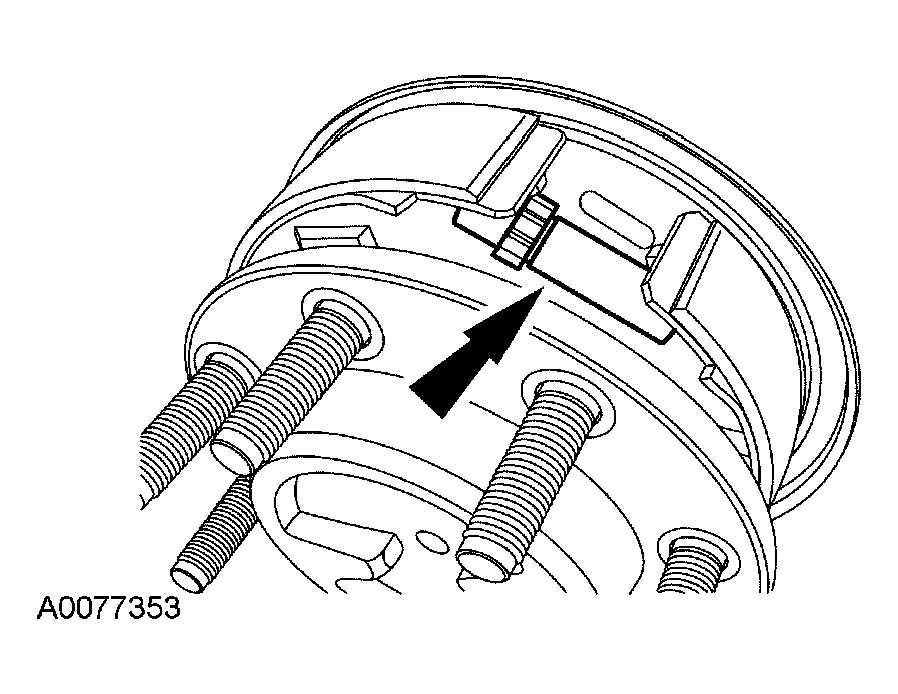

    Fig 3: Removing Parking Brake Shoe Adjusting Screw
    G03883227Courtesy of FORD MOTOR CO.

    5. All semi-floating axles

  5. Using the special tool, remove and discard the wheel stud.
    Fig 4: Removing Wheel Stud (All Semi-Floating Axles)
    G03883228Courtesy of FORD MOTOR CO.
