Glossary of Terms: Radial/Lateral

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Radial is in the plane of rotation; lateral is at 90 degrees to the plane of rotation.

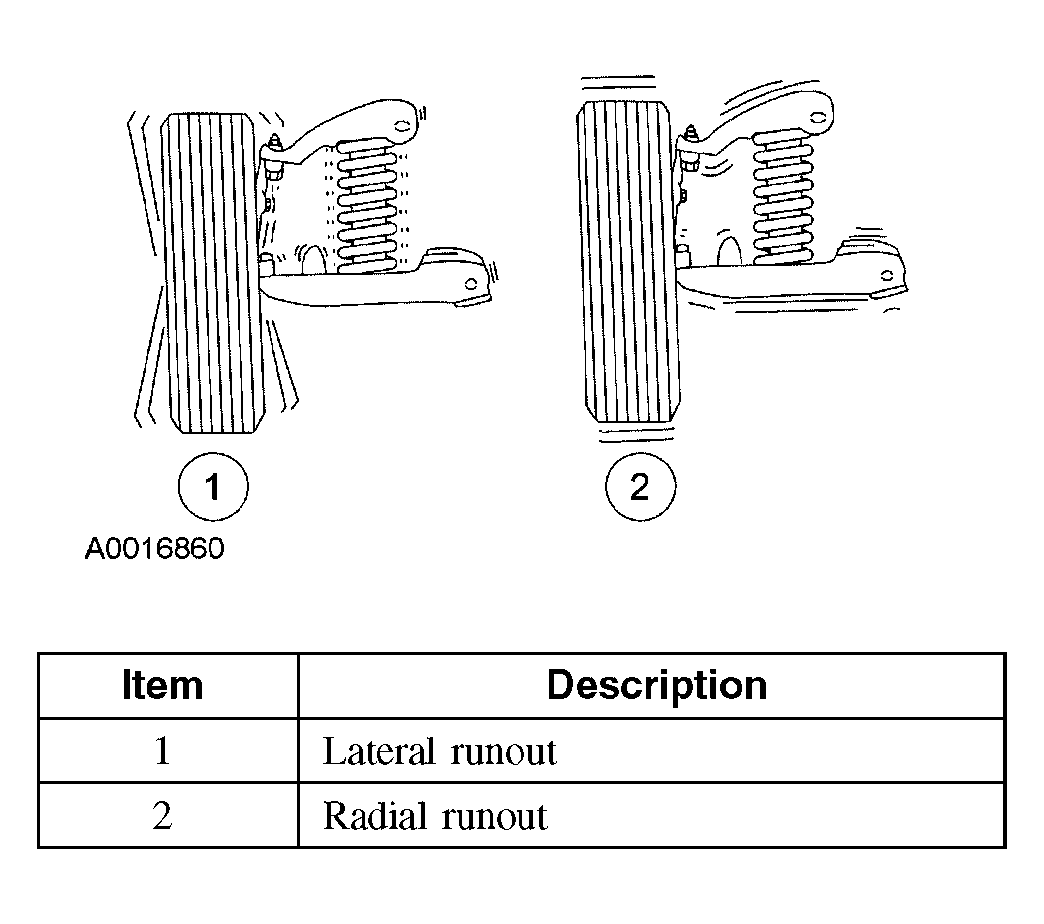

Fig 1: Checking Lateral And Radial Runout
G03891460Courtesy of FORD MOTOR CO.
