Air Conditioning (A/C) Pressure Sensor
WARNING: This page does not describe the selected car, but rather 32 other vehicles, including the 2005 Mercury Sable, 2005 Mercury Mountaineer, 2005 Mercury Monterey, 2005 Mercury Montego, and 2005 Mercury Mariner. However, it is still accessible from the selected car via links, so may be relevant.

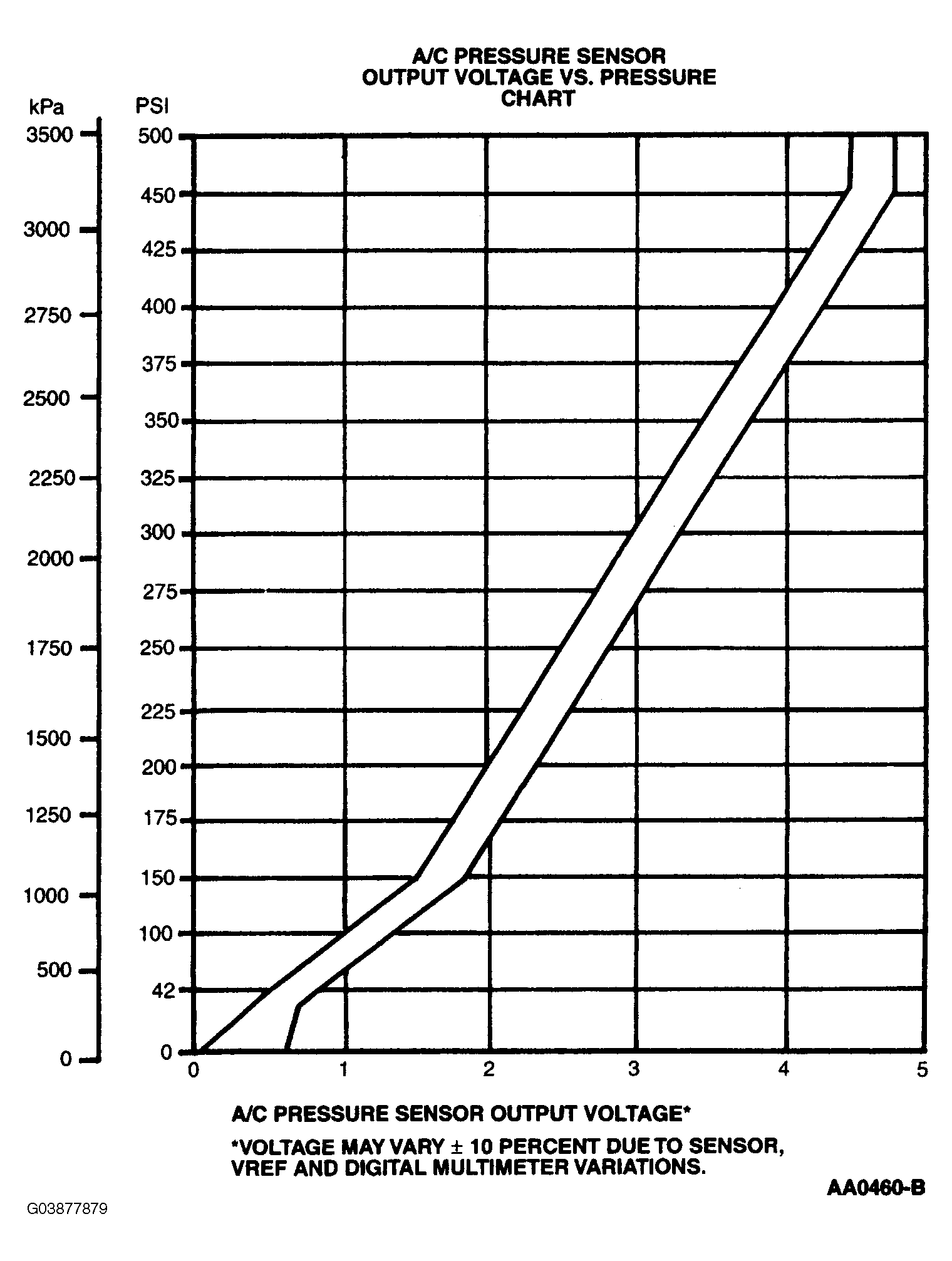

The A/C pressure sensor is located in the high pressure (discharge) side of the A/C system. The A/C pressure sensor provides a voltage signal to the PCM that is proportional to the A/C pressure. The PCM uses this information for A/C clutch control, fan control and idle speed control.
