Oil Cooler Tubes (Cougar): Removal
WARNING: This page is about a different car, the 2002 Mercury Cougar and 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

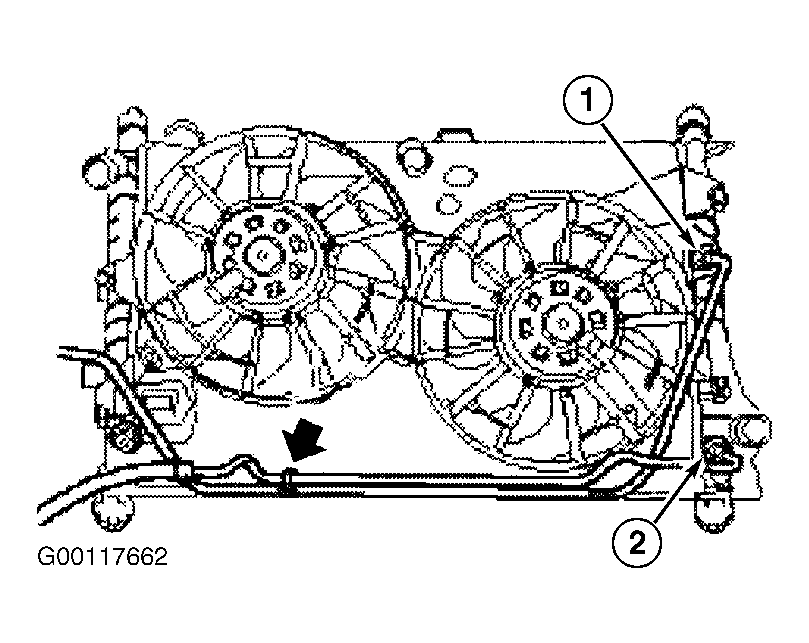

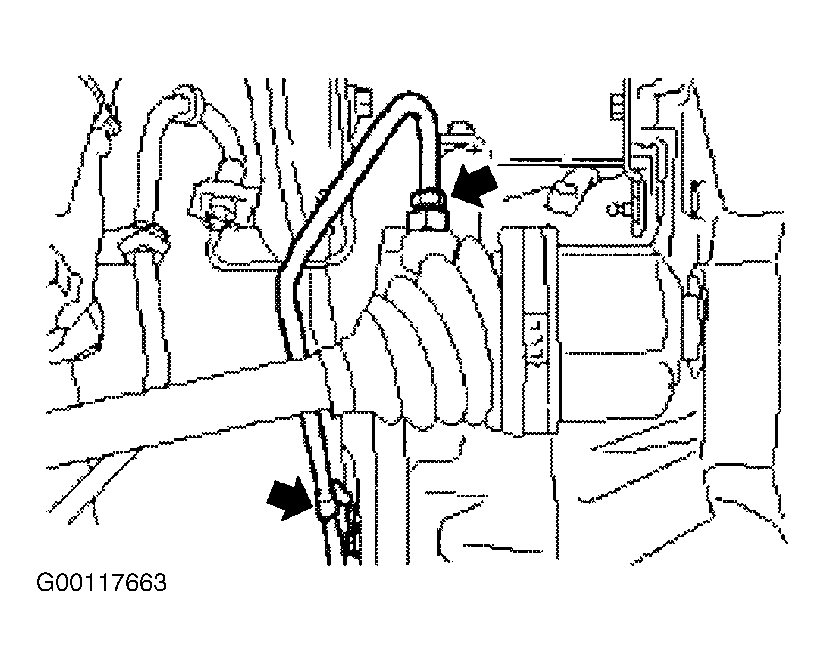

Raise the vehicle. Place a drain pan under vehicle. Remove the fluid cooler return tube from the transaxle. Unscrew the return tube union. See Fig 1 . Unclip the return tube from the bracket. Remove the fluid cooler feed tube from the transaxle. See Figure . Disconnect the feed tube (1), from the radiator. See Fig 2 . Disconnect the return tube (2), from the radiator. Unclip the tubes from the bracket.
