Intermediate & Overdrive Servo: Installation
WARNING: This page is about a different car, the 2002 Mercury Cougar and 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Servo return spring force is very high. Failure to follow these instructions may result in personal injury.
CAUTION:
Do not use a screwdriver to install the retaining ring or damage to the case may occur. Use only snap ring pliers to install the retaining ring.
NOTE:
If the servo cover will not seat deep enough in the bore to install the servo cover retaining ring, use a blunt punch or small hammer and gently tap the cover around the outer edge until the servo cover retaining ring can be installed.

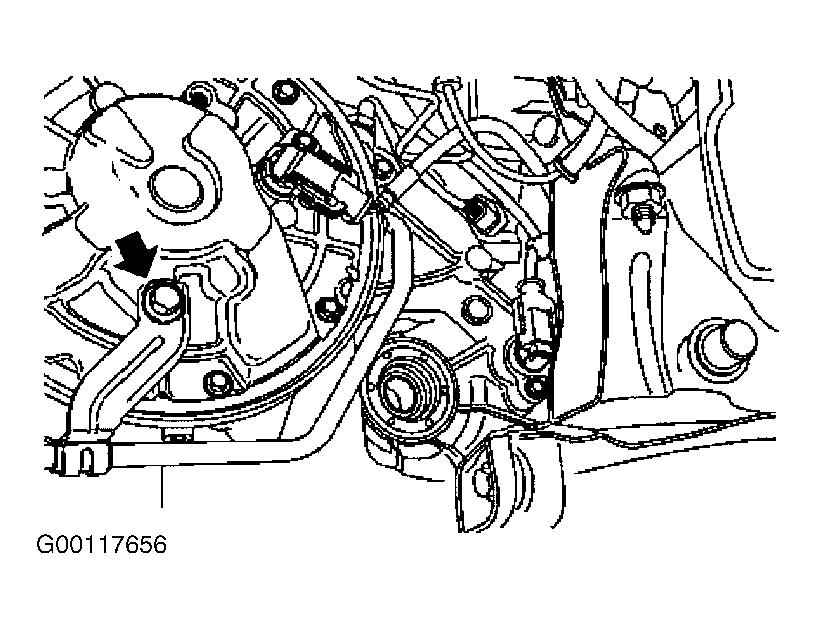

- Install the servo cover remover/installer. See Figure . Tighten the bolt on the servo cover remover/installer. Install the servo cover retaining ring. If the case is stamped "WG", install a wide-groove snap ring, or the servo will be damaged.

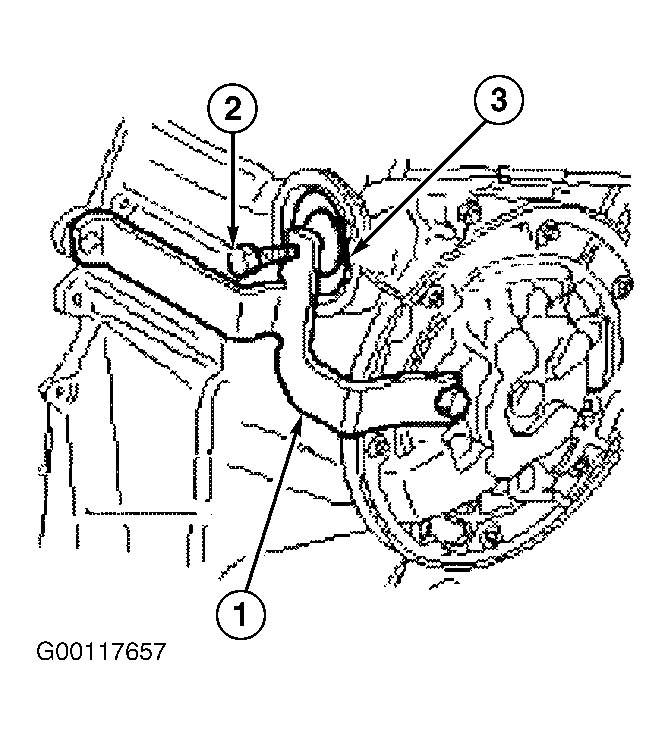

- Loosen the servo cover remover/installer bolt. When the spring tension is released, remove the servo cover remover/installer. Install the transmission fluid cooler line. See Figure . Install the splash shield. Lower the vehicle.
- Start the vehicle. Place gearshift lever in each gear and allow to engage. Check for leaks. Fill the transaxle with appropriate fluid to proper level and check for correct transaxle operation. See LUBRICATION .
