Pinpoint Test Schematic and Connectors

WARNING: This page is about a different car, the 2004 Ford Pickup Heritage. However, it is still accessible from the selected car via links, so may be relevant.

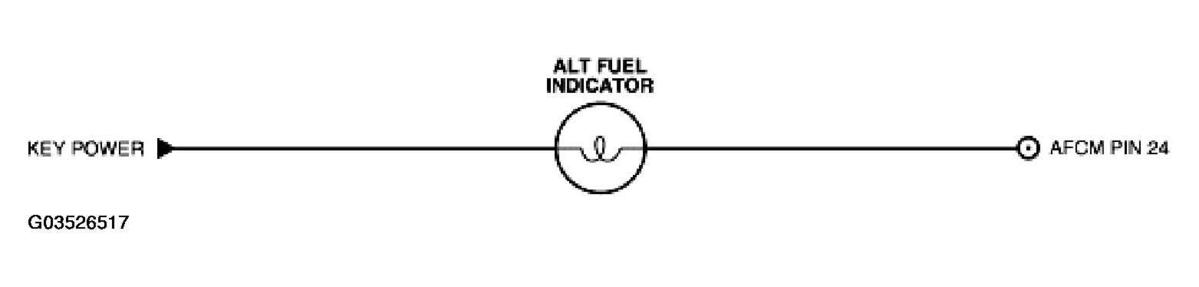

Fig 1: Identifying ALT Fuel Indicator Lamp Circuit
G03526517Courtesy of FORD MOTOR CO.
Fig 2: Identifying ALT Fuel Switch Circuit
G03526518Courtesy of FORD MOTOR CO.
