Pinpoint Test Schematic and Connectors

WARNING: This page is about a different car, the 2004 Ford Pickup Heritage. However, it is still accessible from the selected car via links, so may be relevant.

For AFCM connector views, refer to  ALTERNATIVE FUEL CONTROL MODULE (AFCM)  .

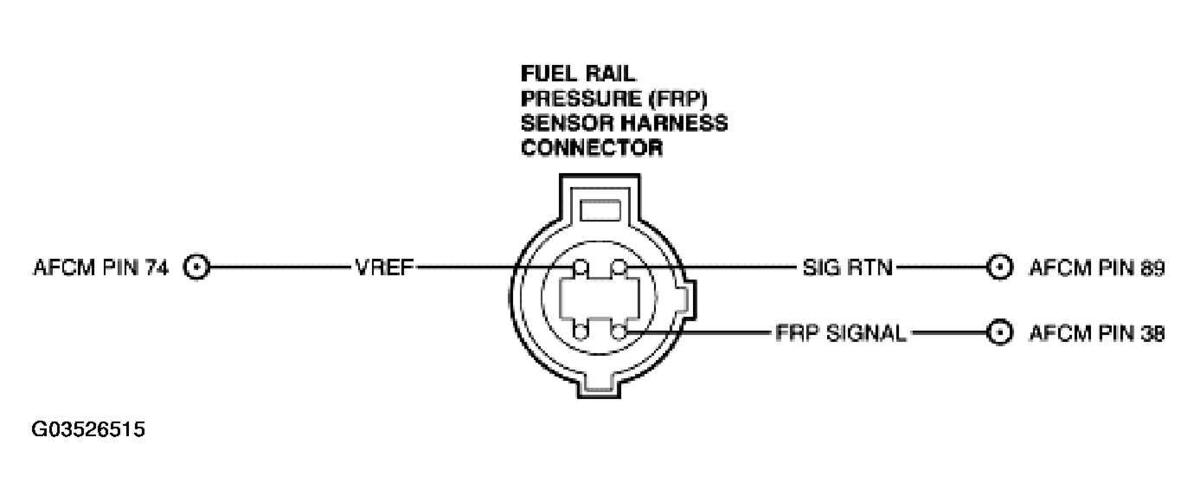

Fig 1: Identifying Fuel Rail Pressure (FRP) Sensor Harness Connector Terminals
G03526515Courtesy of FORD MOTOR CO.
