Pinpoint Test Schematic and Connectors

WARNING: This page is about a different car, the 2004 Ford Pickup Heritage. However, it is still accessible from the selected car via links, so may be relevant.

For AFCM connector views, refer to  ALTERNATIVE FUEL CONTROL MODULE (AFCM)  .

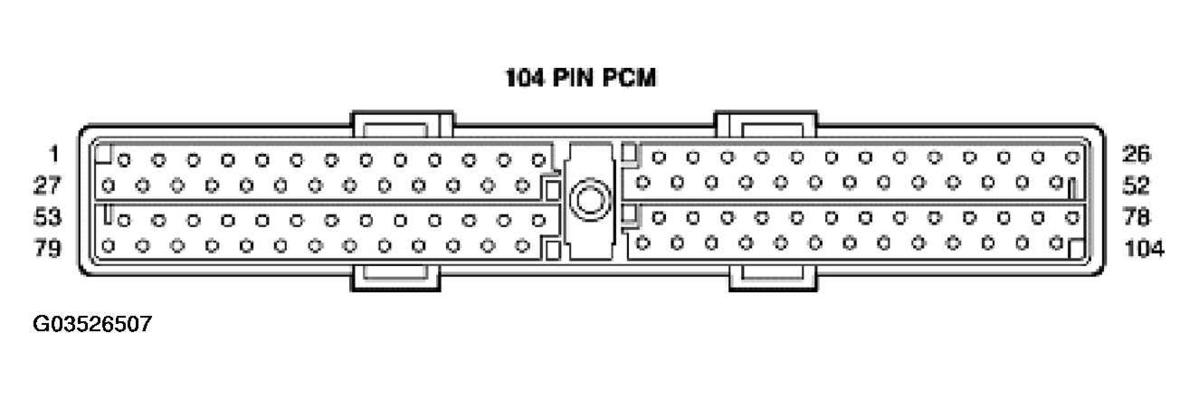

Fig 1: Identifying 104 Pin PCM Terminals
G03526507Courtesy of FORD MOTOR CO.

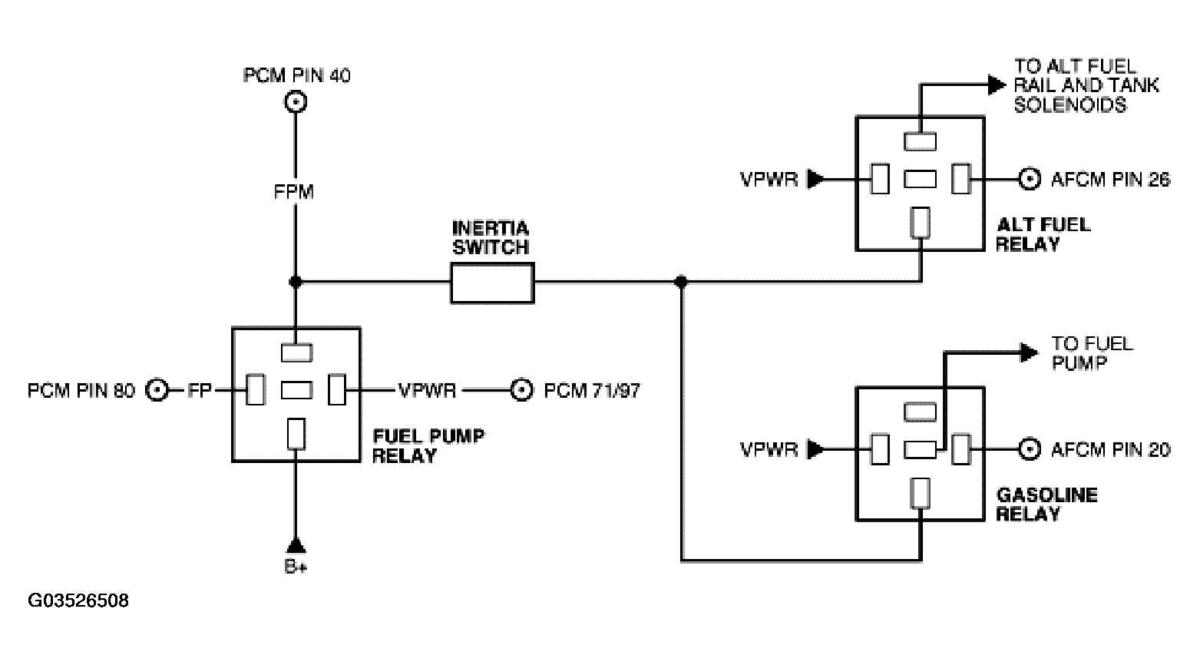

Fig 2: Fuel System Relay Schematic
G03526508Courtesy of FORD MOTOR CO.
