Gas Regulator

WARNING: This page is about a different car, the 2004 Ford Pickup Heritage. However, it is still accessible from the selected car via links, so may be relevant.

High pressure CNG enters the high pressure regulator from the CNG fuel tank. The gas regulator delivers fuel at approximately 724 kPa (105 psia) to the fuel rail solenoid.

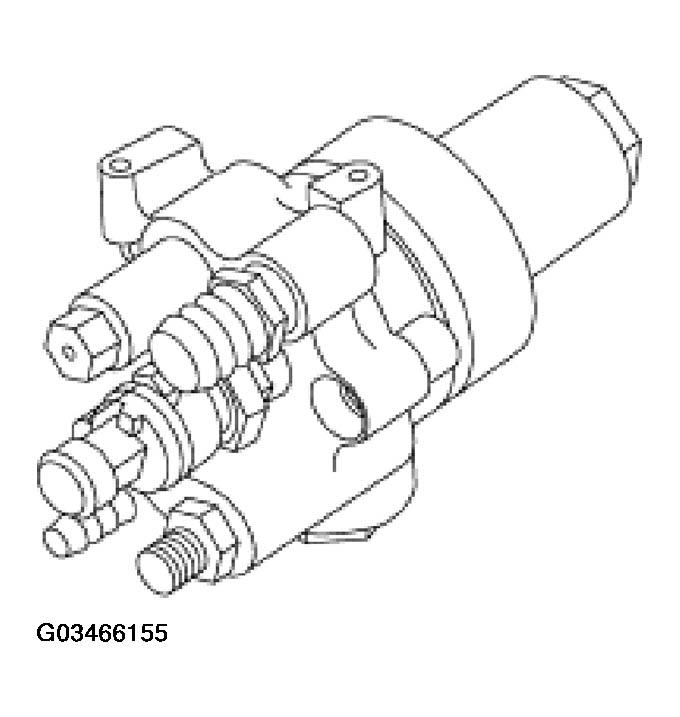

Fig 1: Identifying Gas Regulator
G03466155Courtesy of FORD MOTOR CO.
