Applications Using a Fuel Pump Relay for Fuel Pump On/Off Control

WARNING: This page does not describe the selected car, but rather 30 other vehicles, including the 2004 Mercury Sable, 2004 Mercury Mountaineer, 2004 Mercury Monterey, 2004 Mercury Marauder, and 2004 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.

The Fuel Pump (FP) is a PCM output signal that is used to control the electric fuel pump. With the electronic EC power relay contacts closed, vehicle power (VPWR) is sent to the coil of the fuel pump relay. For electric fuel pump operation, the PCM grounds the FP circuit, which is connected to the coil of the fuel pump relay. This energizes the coil and closes the contacts of the relay, sending B+ through the FP PWR circuit to the electric fuel pump. When the ignition key is turned on, the electric fuel pump runs for about one second, but is then turned off by the PCM if engine rotation is not detected.

For applications with two speed fuel pumps, a normally closed low speed fuel pump relay (Fig 1) is wired into the fuel pump ground circuit. With the low speed fuel pump relay contacts in the normally closed position, there is no extra resistance in the ground circuit for high speed operation. For low speed fuel pump operation, the PCM will ground the Low Fuel Pump (LFP) circuit, which opens the relay contacts. With the relay contacts open, the fuel pump ground circuit now passes through a resistor that is wired into the circuit.

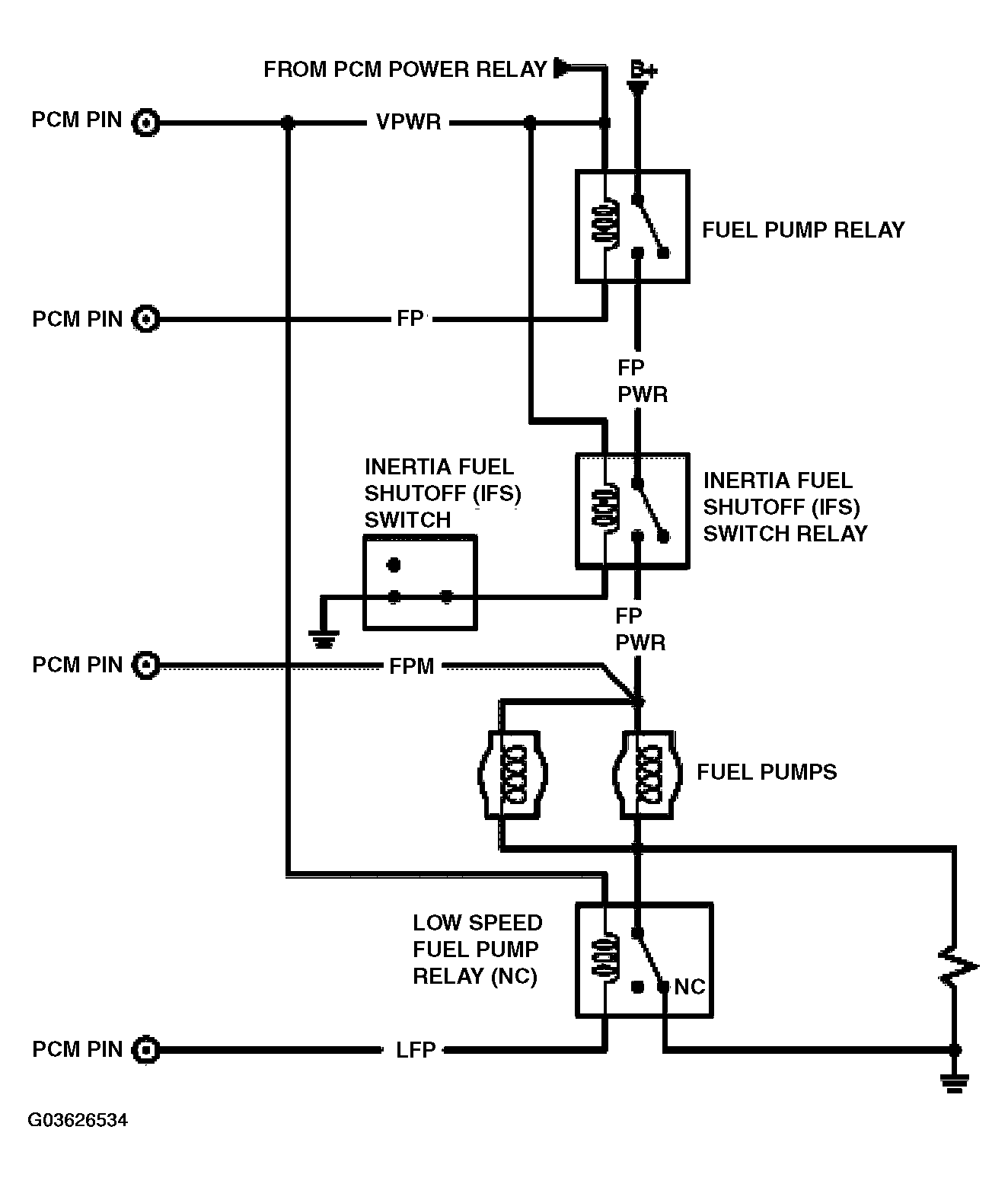

Fig 1: Identifying Low Speed Fuel Pump Relay Circuit

Courtesy of FORD MOTOR CO.
