Coil Pack: Notes
WARNING: This page does not describe the selected car, but rather 30 other vehicles, including the 2004 Mercury Sable, 2004 Mercury Mountaineer, 2004 Mercury Monterey, 2004 Mercury Marauder, and 2004 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.

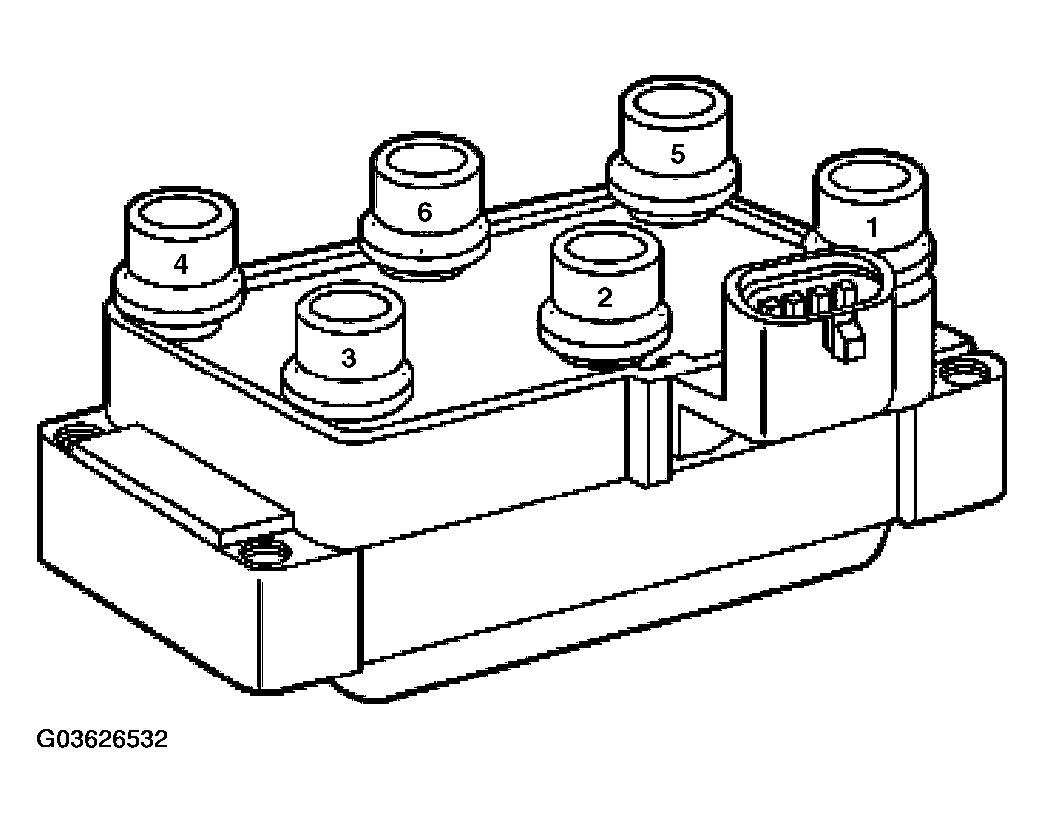

A coil in a coil pack (Figure) is turned on (for example is coil charging) by the PCM, and is turned off when firing two spark plugs at once. The spark plugs are paired so that as one spark plug fires on the compression stroke, the other spark plug fires on the exhaust stroke. The next time the coil is fired the order is reversed. The next pair of spark plugs fire according to the engine firing order.
