Air Conditioning Pressure Sensor
WARNING: This page does not describe the selected car, but rather 30 other vehicles, including the 2004 Mercury Sable, 2004 Mercury Mountaineer, 2004 Mercury Monterey, 2004 Mercury Marauder, and 2004 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.

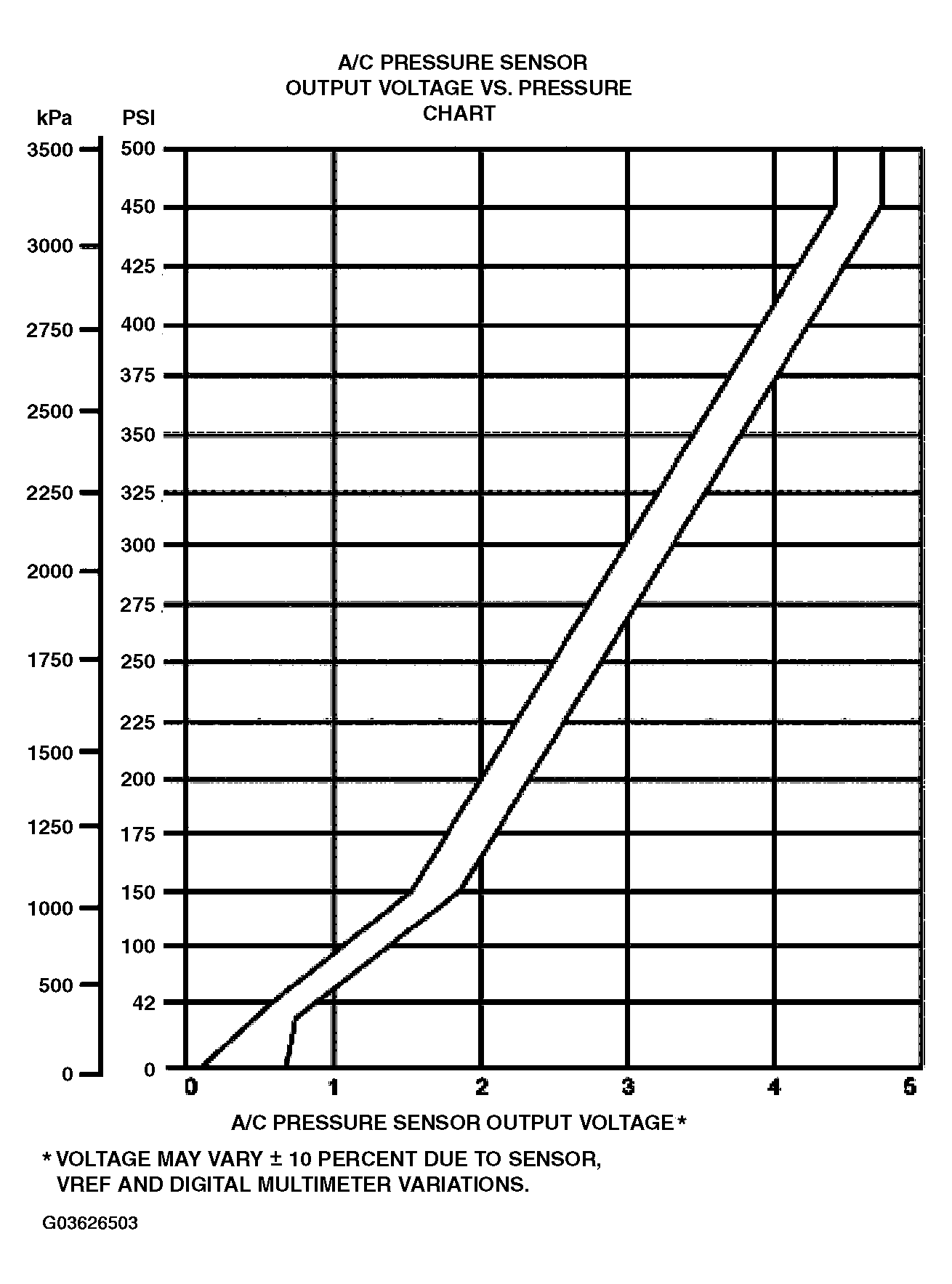

The air conditioning pressure (A/C pressure) sensor (Fig 2) is located in the high pressure (discharge) side of the air conditioning A/C system. The A/C pressure sensor provides a voltage signal to the powertrain control module (PCM) that is proportional to the A/C pressure. The PCM uses this information for A/C clutch control, fan control and idle speed control.
