4x4 Mode Switch
WARNING: This page does not describe the selected car, but rather 30 other vehicles, including the 2004 Mercury Sable, 2004 Mercury Mountaineer, 2004 Mercury Monterey, 2004 Mercury Marauder, and 2004 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.

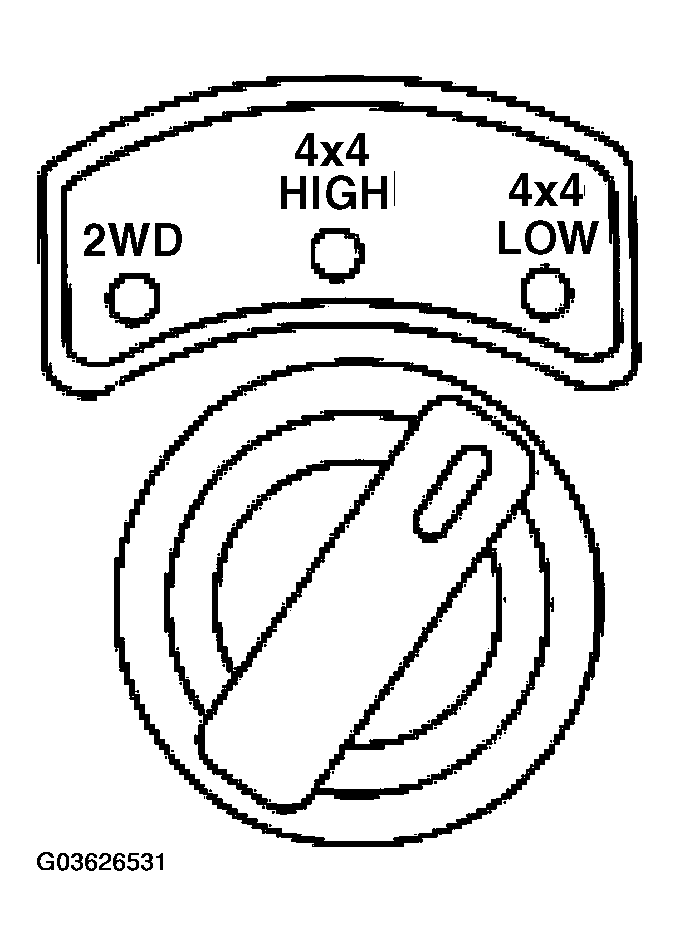

The generic electronic module (GEM) or the 4x4 module (4x4M) provides the PCM with an indication of 4x4L. This input is used to adjust the shift schedule. A 5.0 volt module pull-up indicates 4x4H or 2WD (Fig 1).
