Fuel Rail
WARNING: This page does not describe the selected car, but rather 30 other vehicles, including the 2004 Mercury Sable, 2004 Mercury Mountaineer, 2004 Mercury Monterey, 2004 Mercury Marauder, and 2004 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.

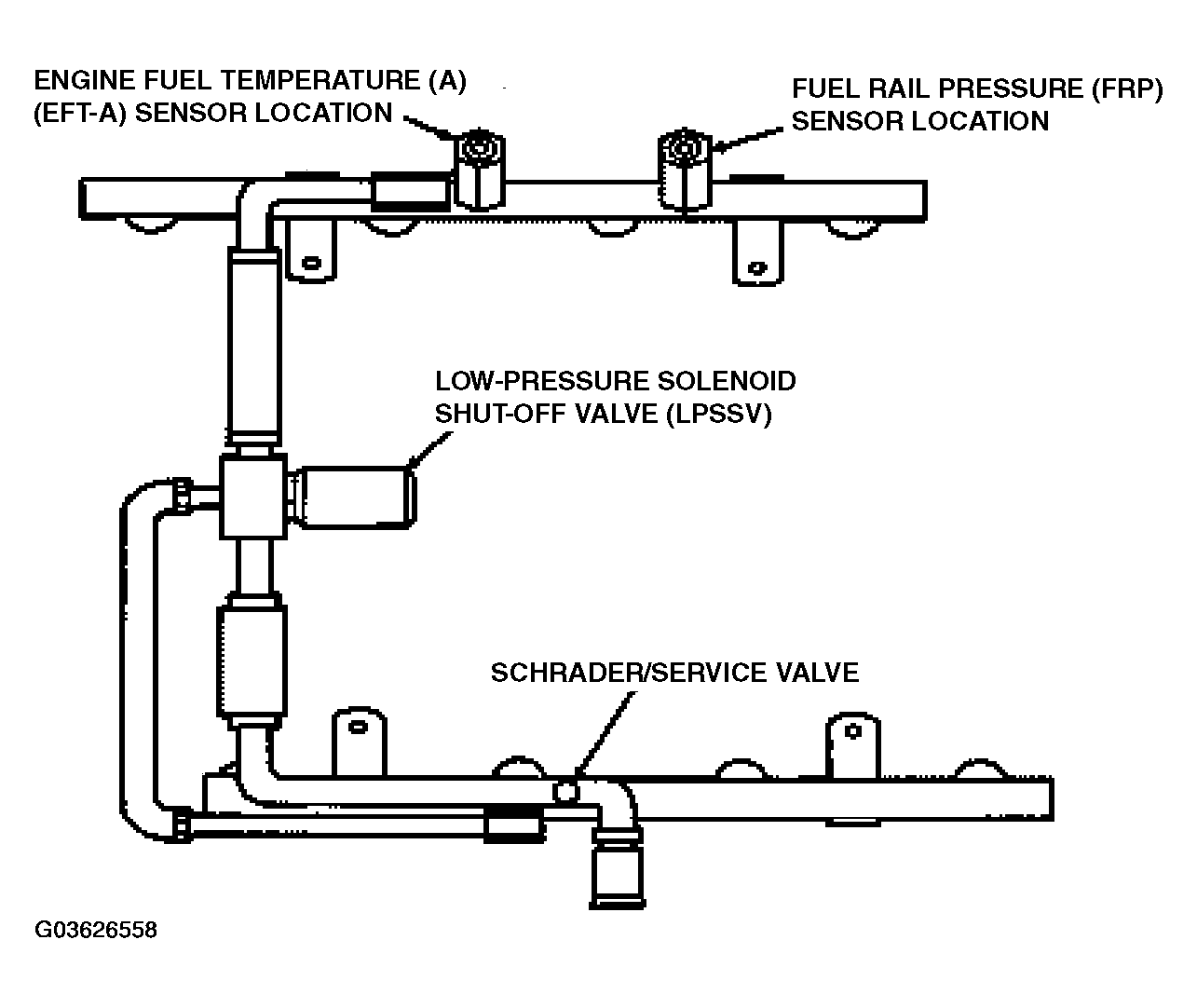

The fuel rail (Fig 1) distributes low pressure fuel from the chassis supply line to each fuel injector. Fuel pressure at the top of each fuel injector is maintained within 1% of the other fuel injectors at all times; this is done with nearly symmetric flow paths. The fuel rail is also designed to have minimal flow restriction by increasing the cross-sectional flow area and reducing the flow path length. The fuel rail contains several other parts in assembly (PIA) components that perform crucial functions. These include:
- Injection pressure sensor which measures the pressure of the fuel near the fuel injectors. This signal is used by the PCM to adjust the fuel injector pulsewidth and meter fuel to each engine combustion cylinder.
- Engine fuel temperature sensor which measures the pressure of the fuel near the fuel injectors. This signal is used by the PCM to adjust the fuel injector pulsewidth and meter fuel to each engine combustion cylinder.
- Low pressure solenoid shut-off valve which isolates the fuel rail from the upstream fuel system when the engine is OFF. This minimizes the amount of fuel available to flow through the fuel injectors when the engine is off or leak from a damaged fuel rail during and after a crash. The valve is controlled by the PCM fuel shutoff valve circuit and contains an inertia switch. The valve is only on for one second after a key-on or whenever CKP signals are being received by the PCM.
- Schrader/service valve (if equipped) provides a service port to the low pressure fuel system. This valve is needed to relieve the pressure in the system before and during service. This valve could also be used to monitor the pressure near the injectors during diagnostic procedures.
