Fuel Pump Module

WARNING: This page does not describe the selected car, but rather 30 other vehicles, including the 2004 Mercury Sable, 2004 Mercury Mountaineer, 2004 Mercury Monterey, 2004 Mercury Marauder, and 2004 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.

The fuel pump (FP) module (Fig 1, Fig 2 and Fig 3) is a device that contains the fuel pump and sender assembly. The fuel pump is located inside the FP module reservoir and supplies fuel through the FP module manifold to the engine and FP module jet pump. The jet pump continuously refills the reservoir with fuel, and a check valve located in the manifold outlet maintains system pressure when the fuel pump is not energized. A flapper valve located in the bottom of the reservoir allows fuel to enter the reservoir and prime the fuel pump during the initial fill.

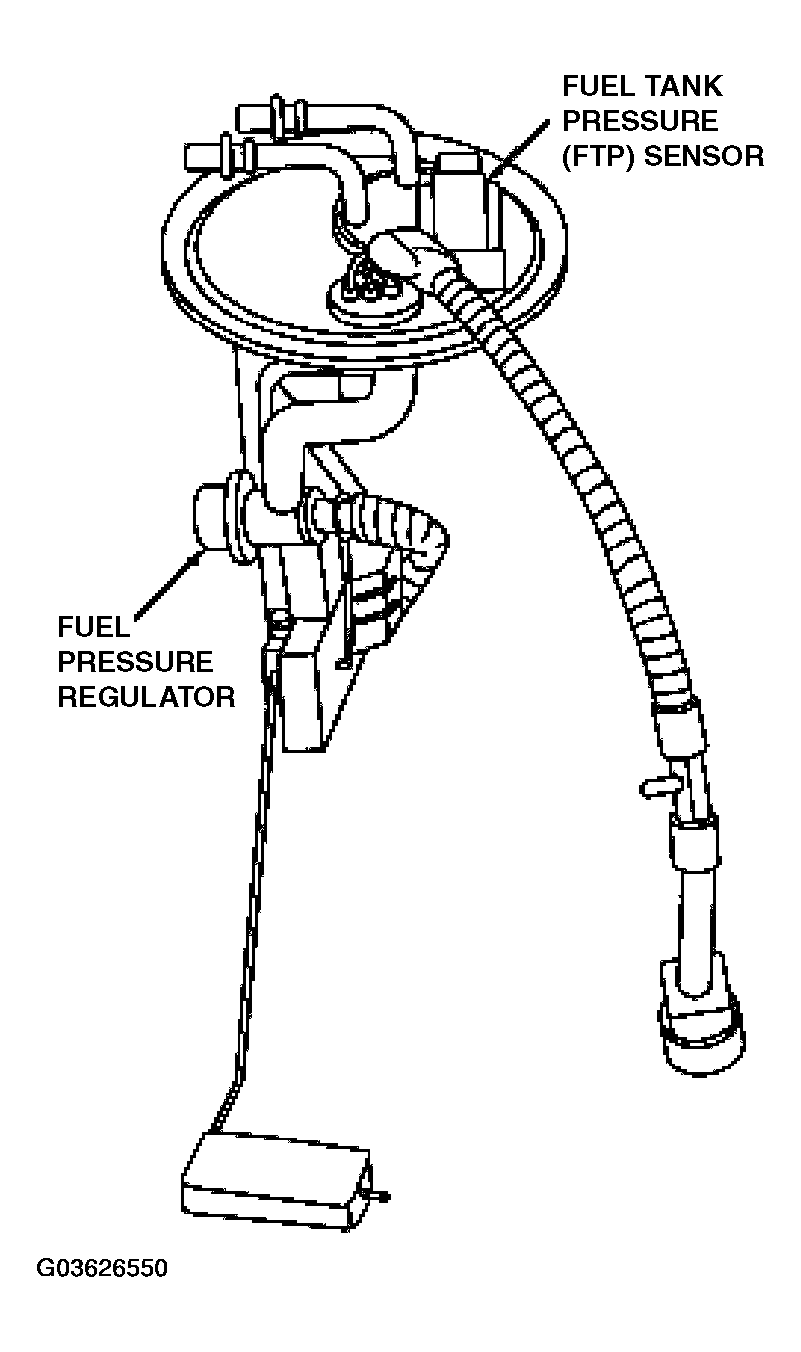

Fig 1: Identifying Fuel Pump Module (For Returnable Fuel Systems)

Courtesy of FORD MOTOR CO.

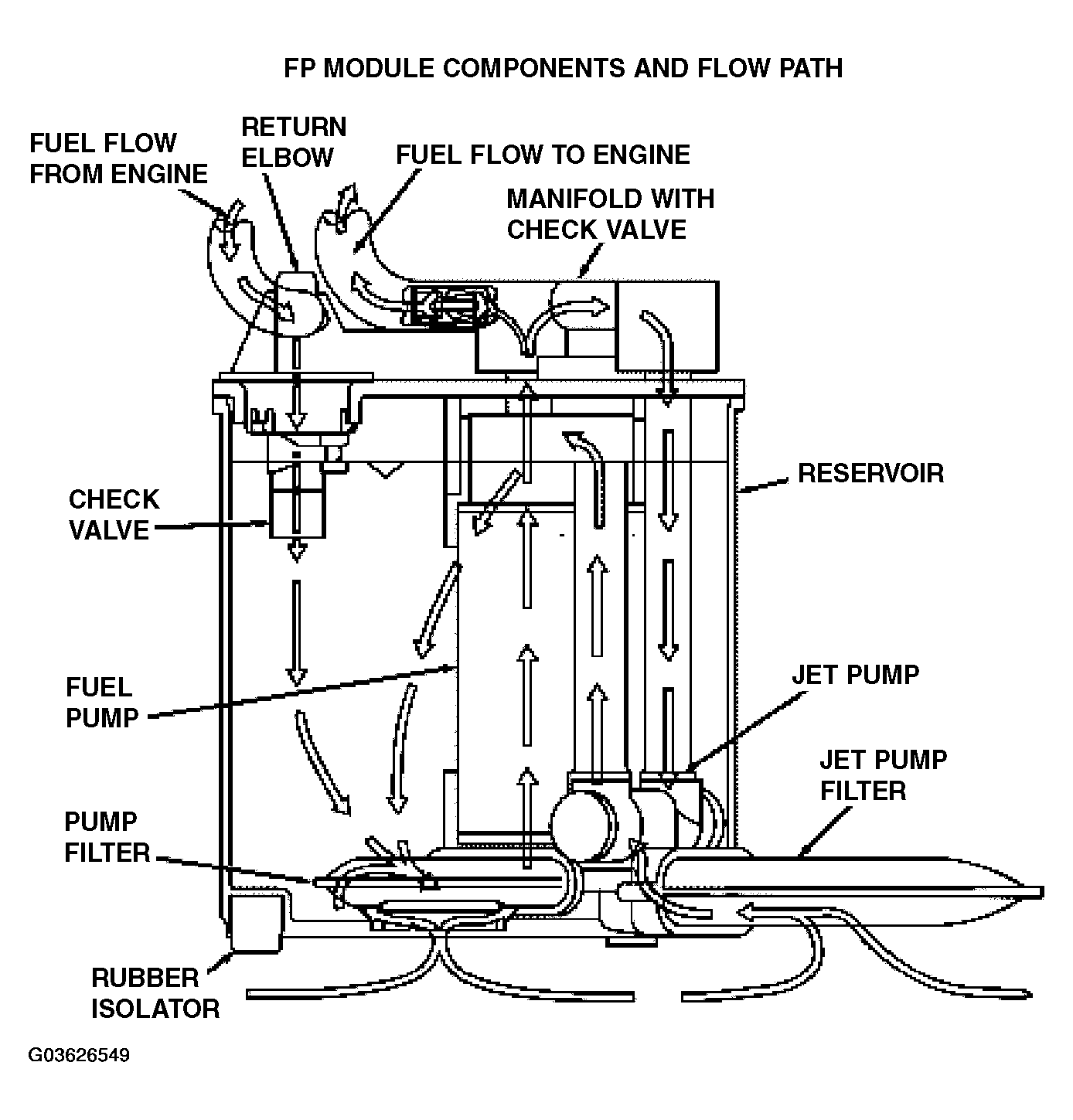

Fig 2: Identifying Fuel Pump Module (For Mechanical Returnless Systems)

Courtesy of FORD MOTOR CO.

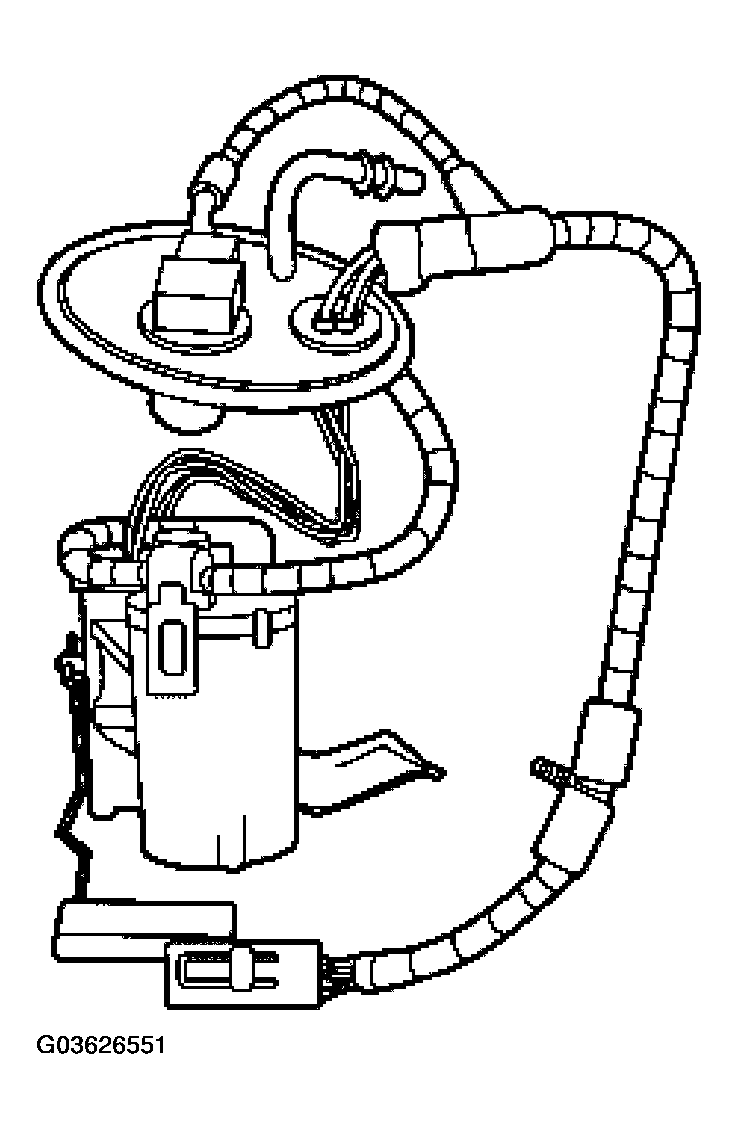

Fig 3: Identifying Fuel Pump Module (For Electronic Returnless Systems)

Courtesy of FORD MOTOR CO.
