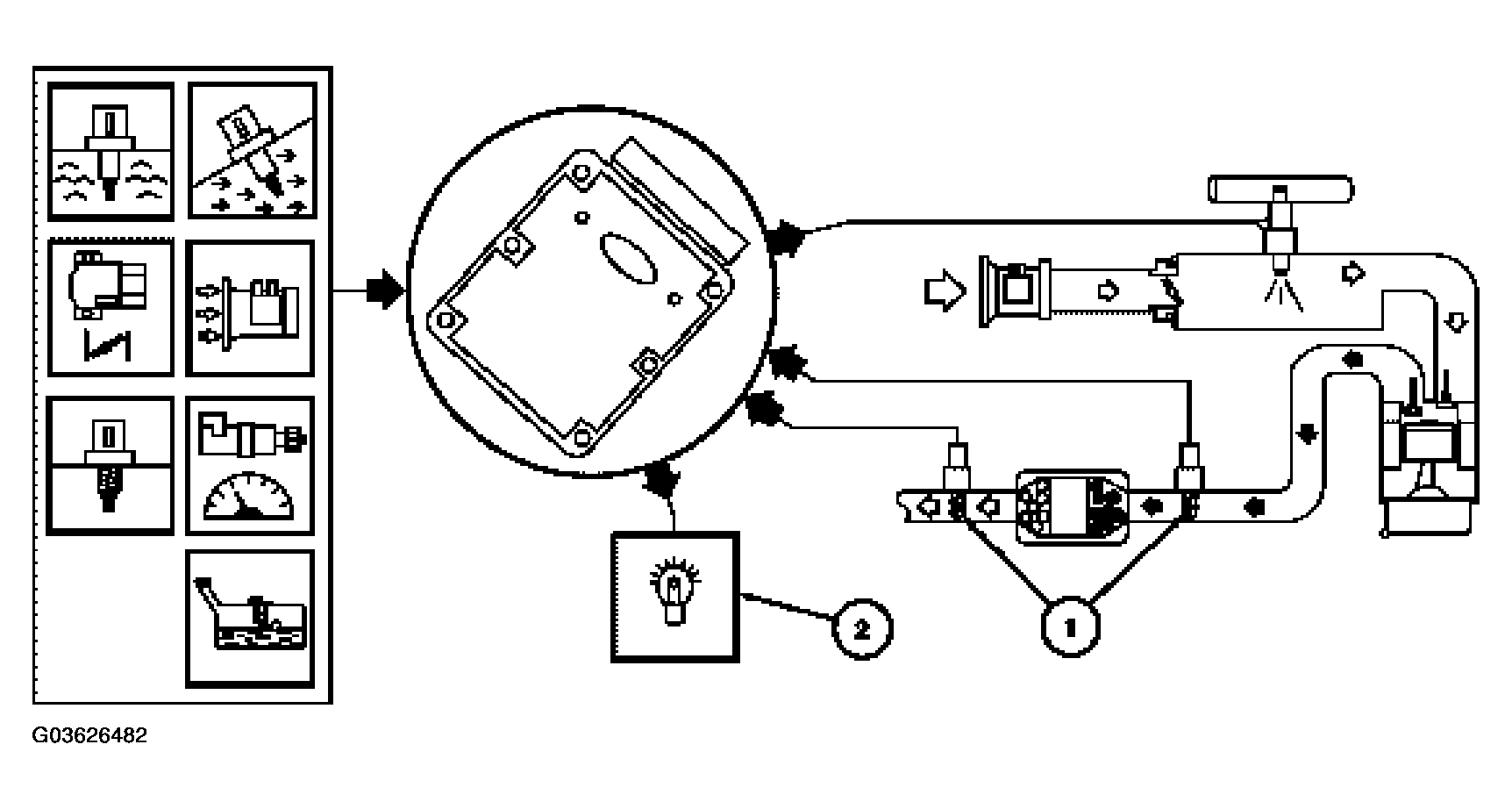

General Catalyst Monitor Operation
Monitor execution is once per drive cycle. Typical monitor duration is 700 seconds. In order for the catalyst monitor to run, the HO2S monitor must be complete and Secondary AIR and EVAP system functional with no stored DTCs. If the catalyst monitor does not complete during a particular driving cycle, the already accumulated switch/signal data is retained in Keep Alive Memory and is used during the next driving cycle to allow the catalyst monitor a better opportunity to complete.
Rear HOS2 sensors can be located in various configurations to monitor different kinds of exhaust systems. In-line engines and many V-engines are monitored by their individual bank. A rear HO2S sensor is used along with the front, fuel control HO2S sensor for each bank. Two sensors are used on an in-line engine; four sensors are used on a V-engine. Some V-engines have exhaust banks that combine into a single underbody catalyst. These systems are referred to as Y-pipe systems. They use only one rear HO2S sensor along with the two front, fuel-control HO2S sensors. Y-pipe system uses three sensors in all. For Y-piped systems, the two front HO2S sensor signals are combined by the PCM software to infer what the HO2S signal would have been in front of the monitored catalyst. The inferred front HO2S signal and the actual single, rear HO2S signal is then used to calculate the switch ratio.
Most vehicles that are part of the Low Emission Vehicle (LEV) catalyst monitor phase-in will monitor less than 100% of the catalyst volume. Often this is the first catalyst brick of the catalyst system. Partial volume monitoring is done on LEV and Ultra Low Emission Vehicle (ULEV) vehicles in order to meet the 1.75 emission standard.
Many applications that utilize partial-volume monitoring place the rear HO2S sensor after the first light-off catalyst can or, after the second catalyst can in a three-can per bank system. (A few application placed the HO2S in the middle of the catalyst can, between the first and second bricks).
Some Partial Zero Emission Vehicles (PZEV) will utilize three sets of HO2S sensors per engine bank. The front sensors or stream 1 (HO2S11/HO2S21) are the primary fuel control sensors. The next sensors downstream or stream 2 in the exhaust are utilized to monitor the light-off catalyst (HO2S12/HO2S22). The last sensors downstream or stream 3 in the exhaust (HO2S13/HO2S23) are utilized for very long term fuel trim in order to optimize catalyst efficiency (For Aft Oxygen Sensor Control). For addition heated oxygen sensor information, refer to the HEATED OXYGEN SENSOR (HO2S) MONITOR .
Index ratios for ethanol (Flex fuel) vehicle vary based on the changing concentration of alcohol in the fuel. The malfunction threshold typically increases as the percent of alcohol increases. For example, a malfunction threshold of 0.5 may be used at E10 (10% ethanol) and 0.9 may be used at E85 (85% ethanol). The malfunction thresholds are therefore adjusted based on the percentage of alcohol in the fuel.
