Component Locations

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2002 Mercury Grand Marquis, 2002 Lincoln Town Car, 2002 Ford Crown Victoria, 2001 Mercury Mountaineer, and 2001 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT LOCATIONS

Component Location
Brake Pedal Position Switch Mounted To Brake Pedal Bracket
Electronic Pressure Control Solenoid See Fig 2
Engine Coolant Temperature Sensor (1)
Intake Air Temperature Sensor (1)
Mass Air Flow Sensor (1)
Output Shaft Speed Sensor See Fig 2
Powertrain Control Module (2)
Shift Solenoids (SSA & SSB) See Fig 2
Throttle Position Sensor (1)
Torque Converter Clutch Solenoid See Fig 2
Transmission Fluid Temperature Sensor See Fig 2
Transmission Range Sensor See Fig 1
(1) See appropriate SELF-DIAGNOSTICS article in ENGINE PERFORMANCE.
(2) See POWERTRAIN CONTROL MODULE LOCATIONS  table under REMOVAL & INSTALLATION.

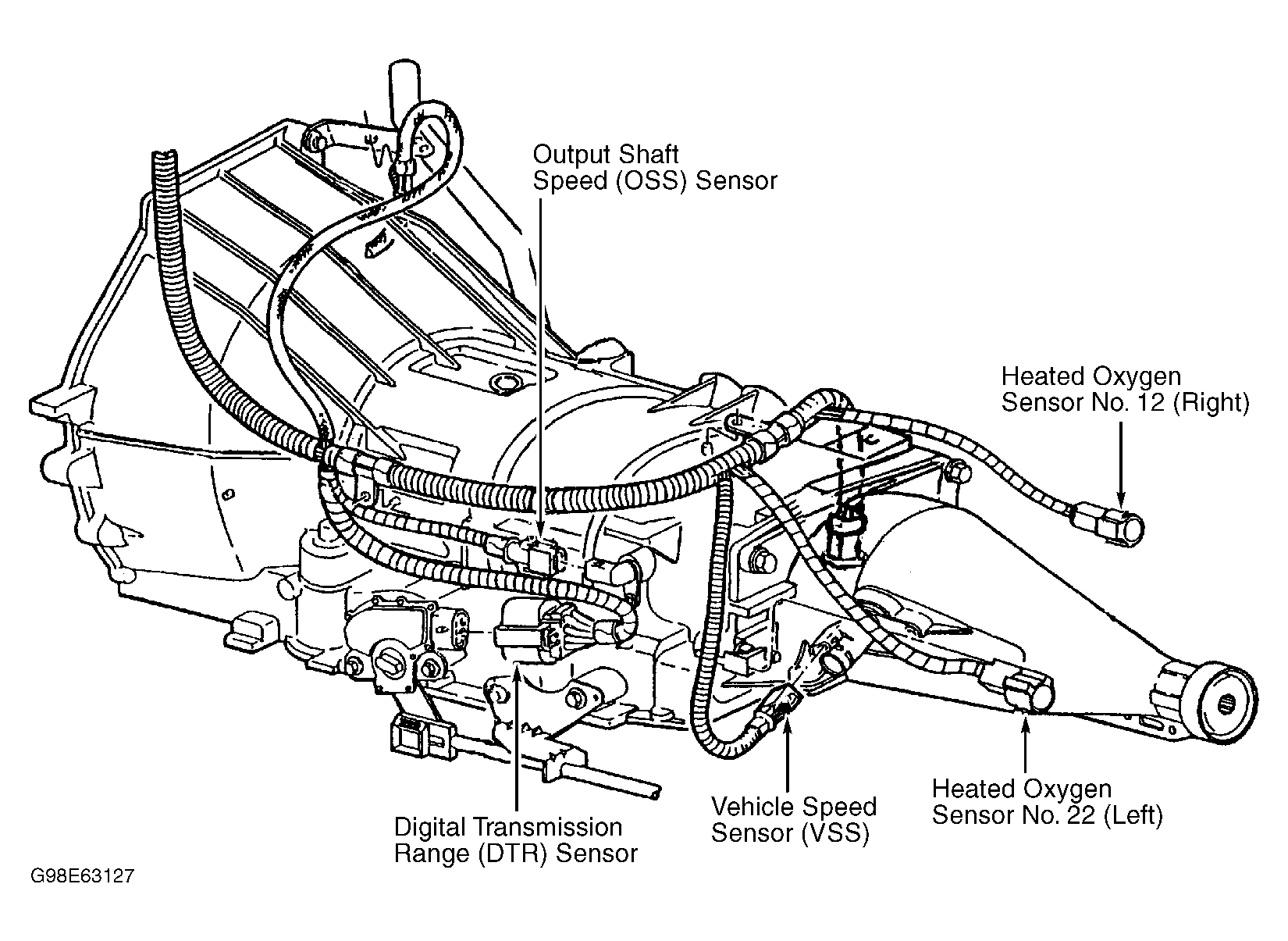

Fig 1: Identifying Transmission Range Sensor Location
G98E63127Courtesy of FORD MOTOR CO.

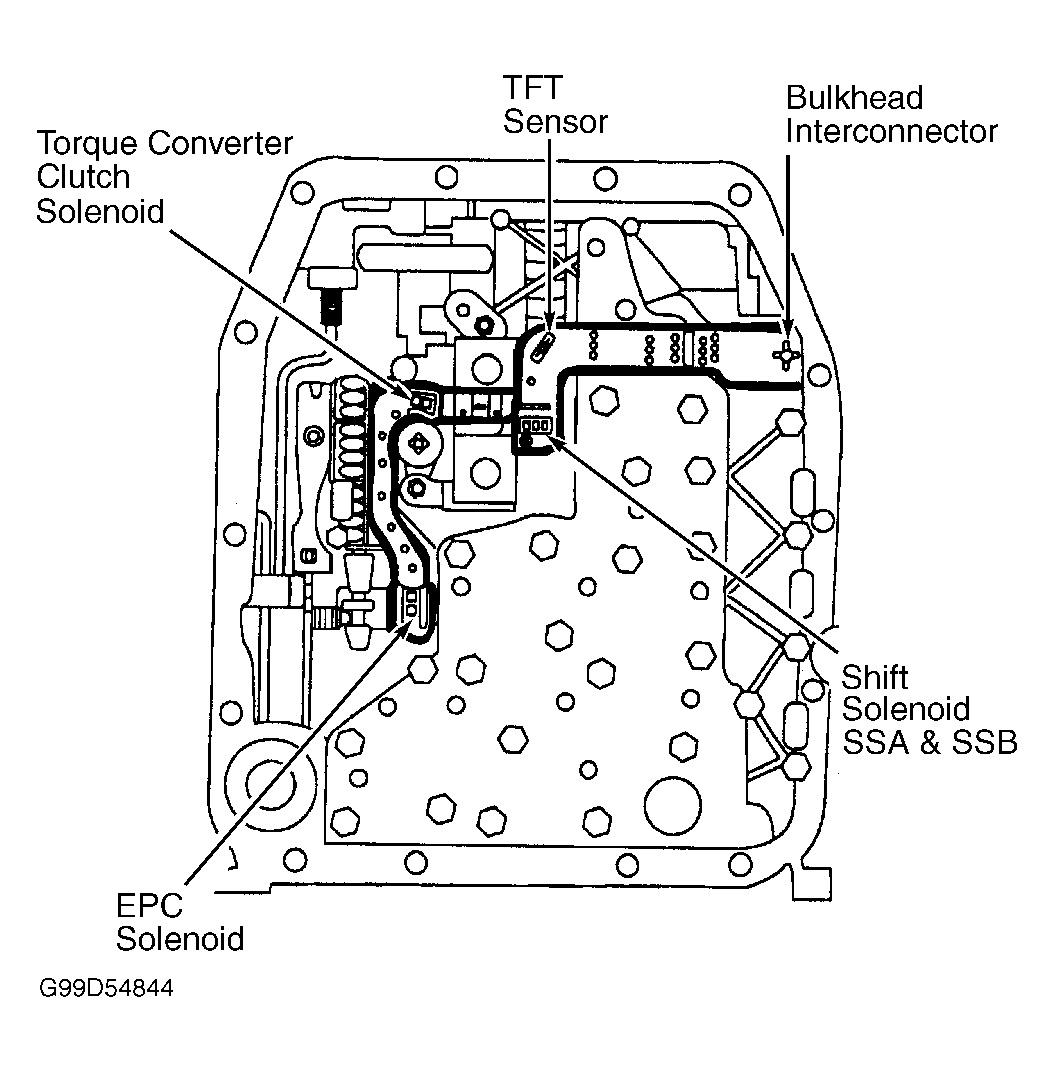

Fig 2: Identifying Transmission Internal Electronic Control Components
G99D54844Courtesy of FORD MOTOR CO.
