Shift Speeds - E-Series, Super Duty, E-350, E-450, E-550 With 6.8L

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This vehicle speed is limited to 121km/h (75 mph).

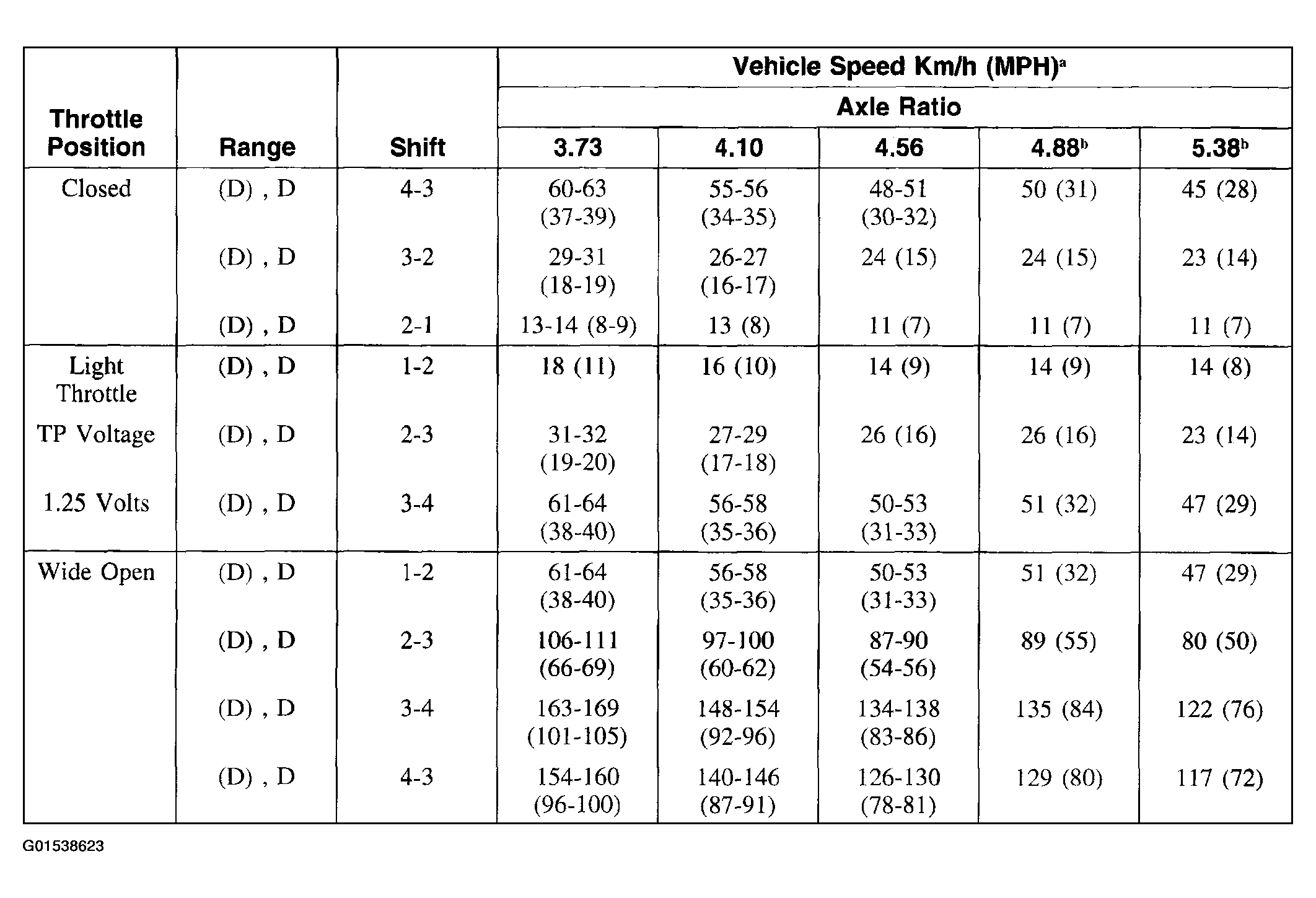

Fig 1: Shift Speeds Specifications - E-Series, Super Duty, E-350, E-450, E-550 With 6.8L (1 Of 2)

Courtesy of FORD MOTOR CO.

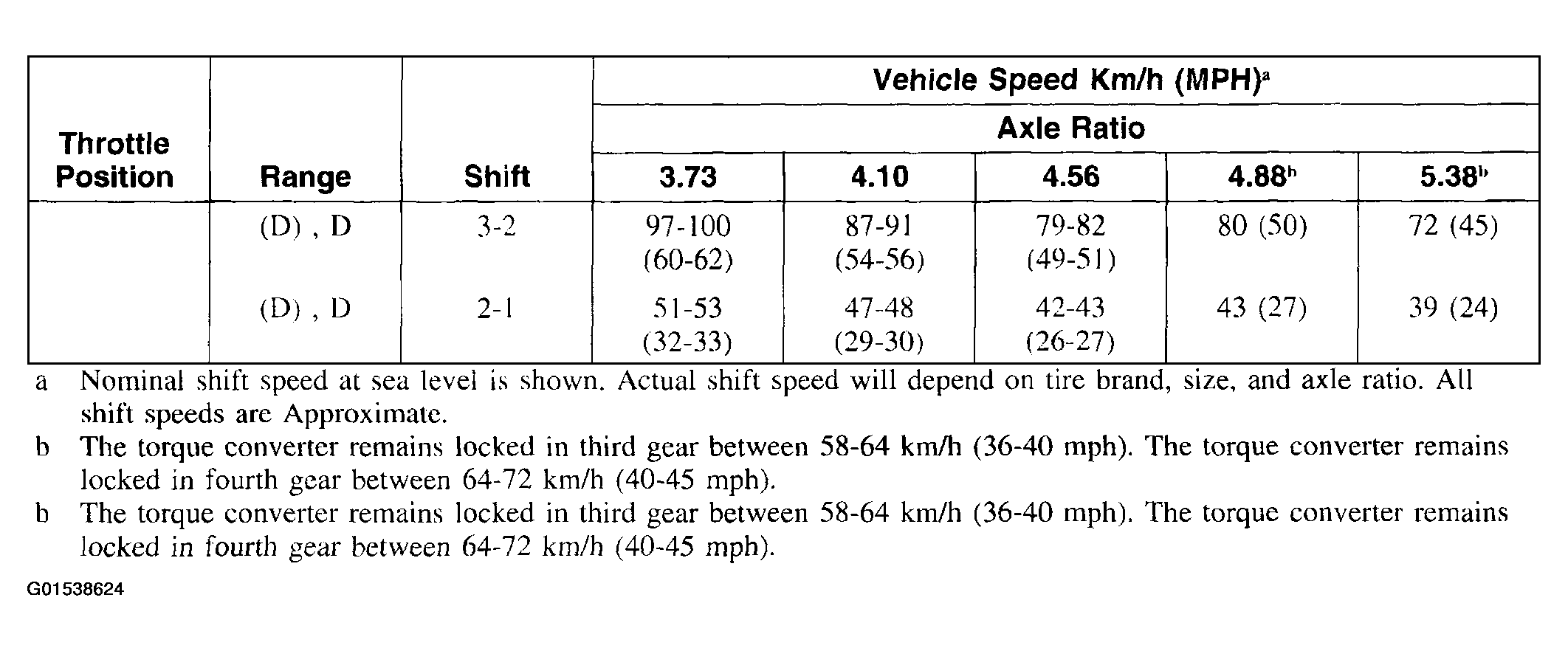

Fig 2: Shift Speeds Specifications - E-Series, Super Duty, E-350, E-450, E-550 With 6.8L (2 Of 2)

Courtesy of FORD MOTOR CO.
