Vehicle Speed Sensor (VSS) - 7.3L Diesel: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the vehicle speed sensor driven gear.
    1. Install the driven gear.
    2. Install the retaining clip.

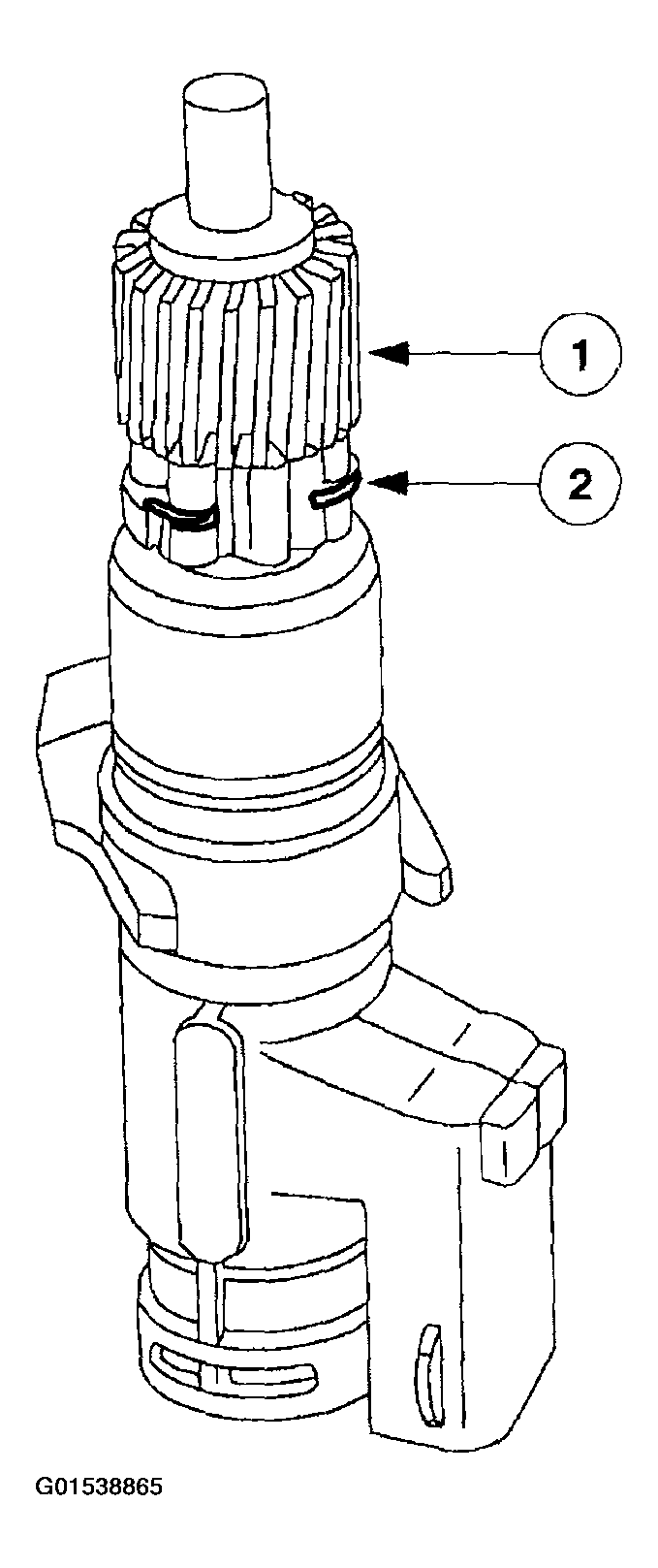

    Fig 1: Installing Vehicle Speed Sensor Driven Gear
    G01538865Courtesy of FORD MOTOR CO.
  2. Install the vehicle speed sensor (VSS).
    1. Install the VSS.
    2. Install the bolt.
    3. Connect the electrical connector.

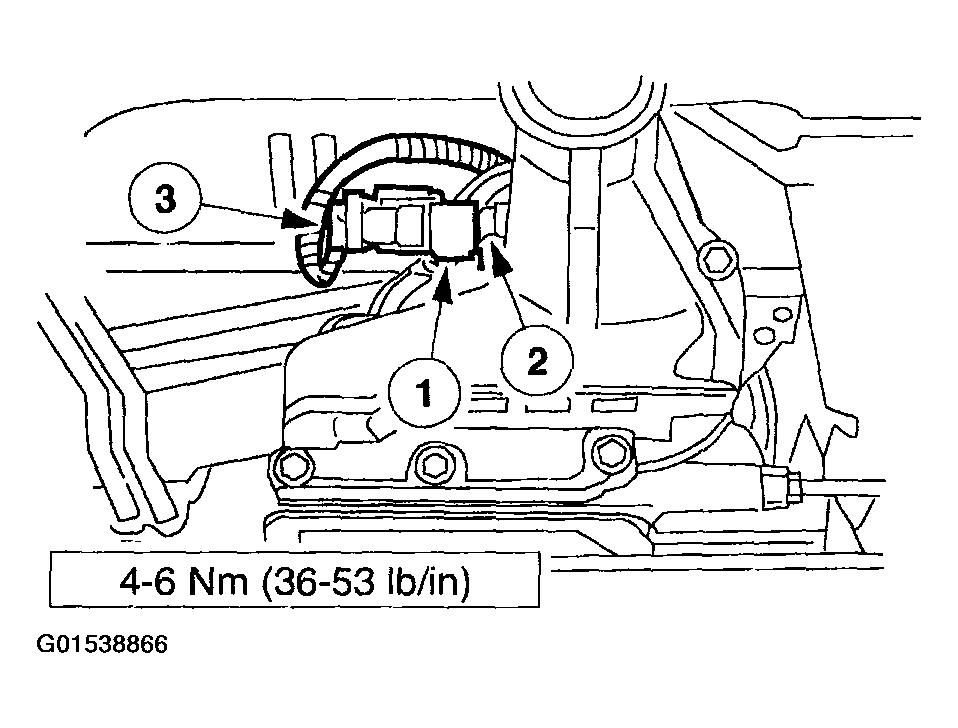

    Fig 2: Installing Vehicle Speed Sensor
    G01538866Courtesy of FORD MOTOR CO.
  3. Lower the vehicle.
