Transmission Insulator And Retainer: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the insulator and retainer.

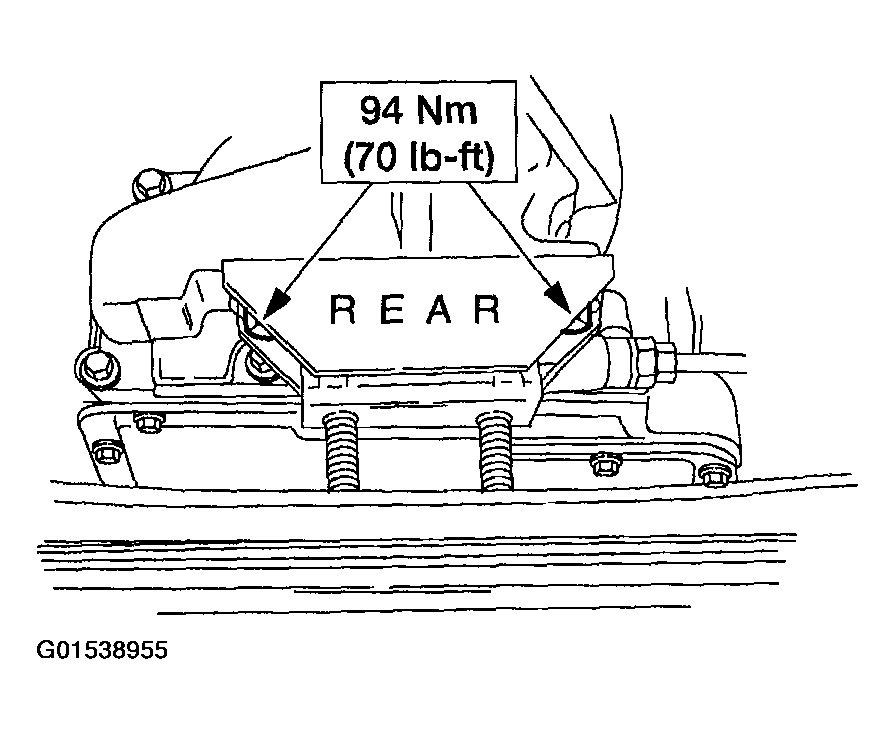

    Fig 1: Installing Insulator And Retainer
    G01538955Courtesy of FORD MOTOR CO.
  2. Lower the transmission on to the rear crossmember support.

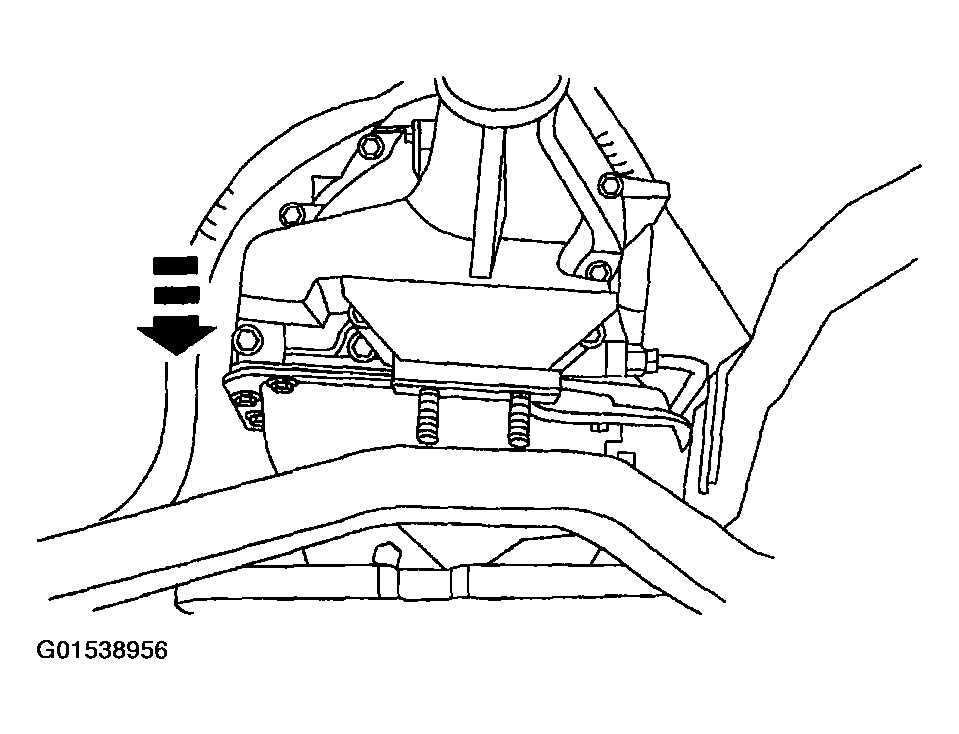

    Fig 2: Placing Tool Transmission On To Rear Crossmember Support
    G01538956Courtesy of FORD MOTOR CO.
  3. Install the nuts.

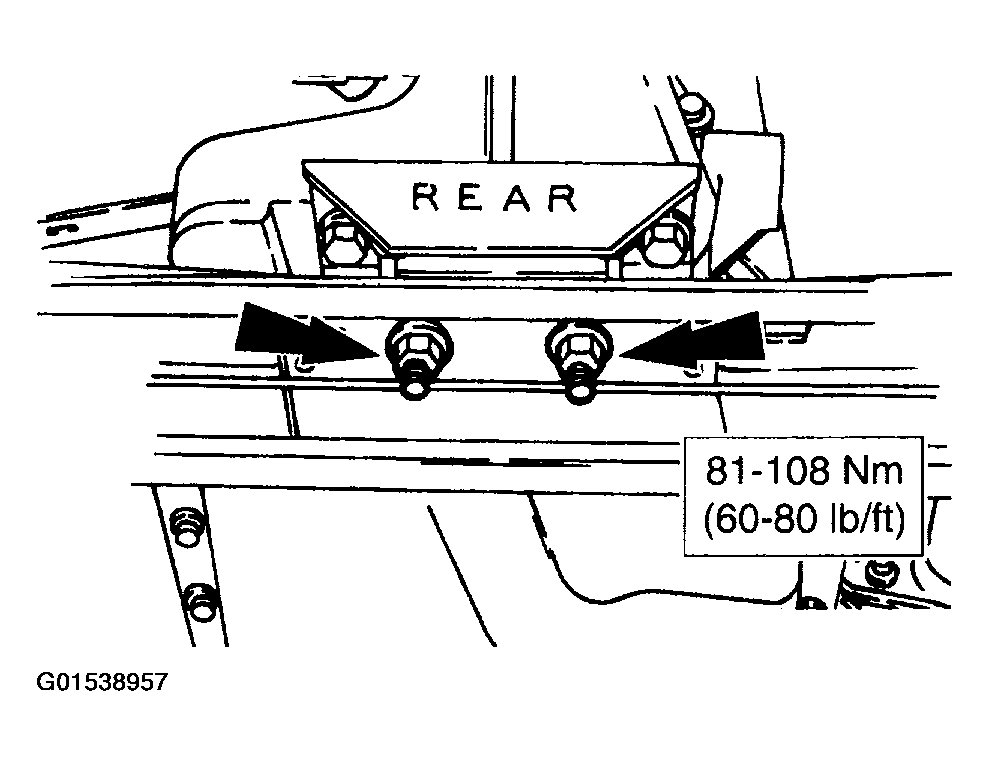

    Fig 3: Installing Nuts
    G01538957Courtesy of FORD MOTOR CO.
  4. Remove the highlift transmission jack with the special tool from the transmission.

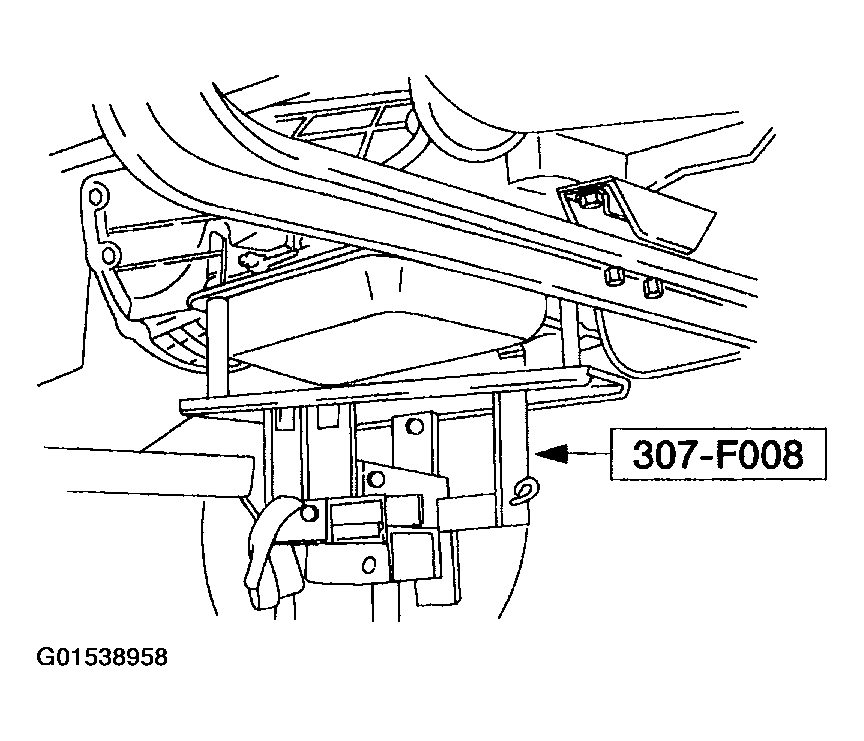

    Fig 4: Removing Highlift Transmission Jack With Special Tool From Transmission
    G01538958Courtesy of FORD MOTOR CO.
  5. Install the transmission fluid pan-to-case retaining bolts.

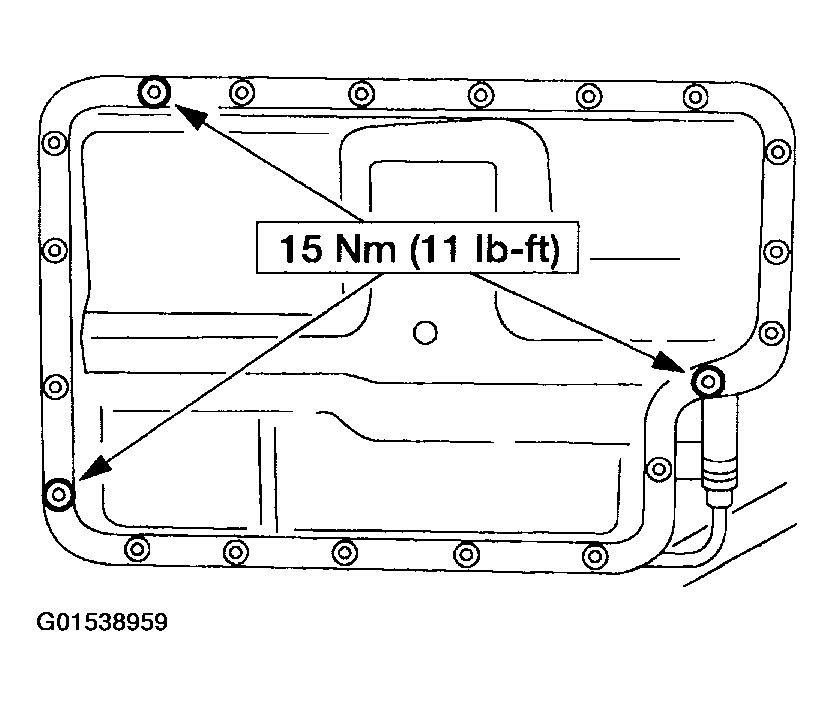

    Fig 5: Installing Transmission Fluid Pan-To-Case Retaining Bolts
    G01538959Courtesy of FORD MOTOR CO.
  6. Remove the supports and lower the vehicle.
