Park System: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: If installing a new park gear, refer to OUTPUT SHAFT - CHECK DIESEL ENGINE  or OUTPUT SHAFT - CHECK GAS ENGINE .

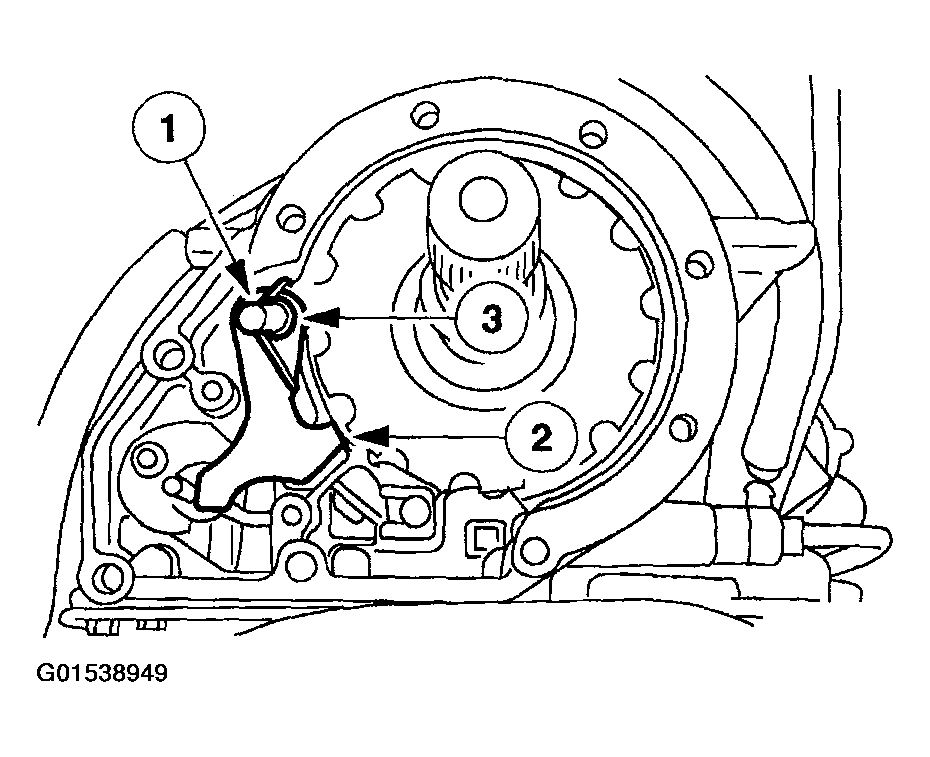

    Fig 1: Installing Park Pawl Return Spring
    G01538949Courtesy of FORD MOTOR CO.
  1. Install the park pawl shaft.
    1. Install the park pawl shaft.
    2. Install the park pawl.
    3. Install the park pawl return spring.
  2. Install the parking rod guide plate.
    1. Install the parking rod guide plate.
    2. Install the bolts.

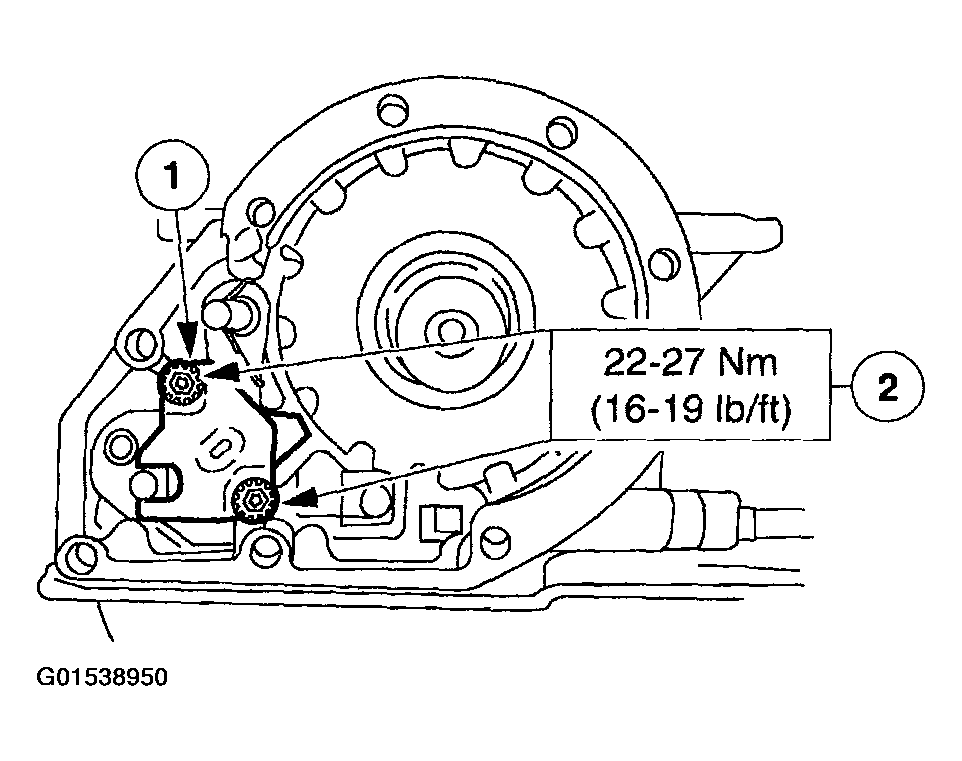

    Fig 2: Installing Parking Rod Guide Plate
    G01538950Courtesy of FORD MOTOR CO.
  3. Install the extension housing gasket and the extension housing.
