Intermediate Servo: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the main control valve body. For additional information, refer to MAIN CONTROL VALVE BODY - ACCUMULATOR BODY, SOLENOID BODY .
    2. NOTE: Gently tap on the servo cover with a rubber mallet to compress and allow servo assembly to pop up.

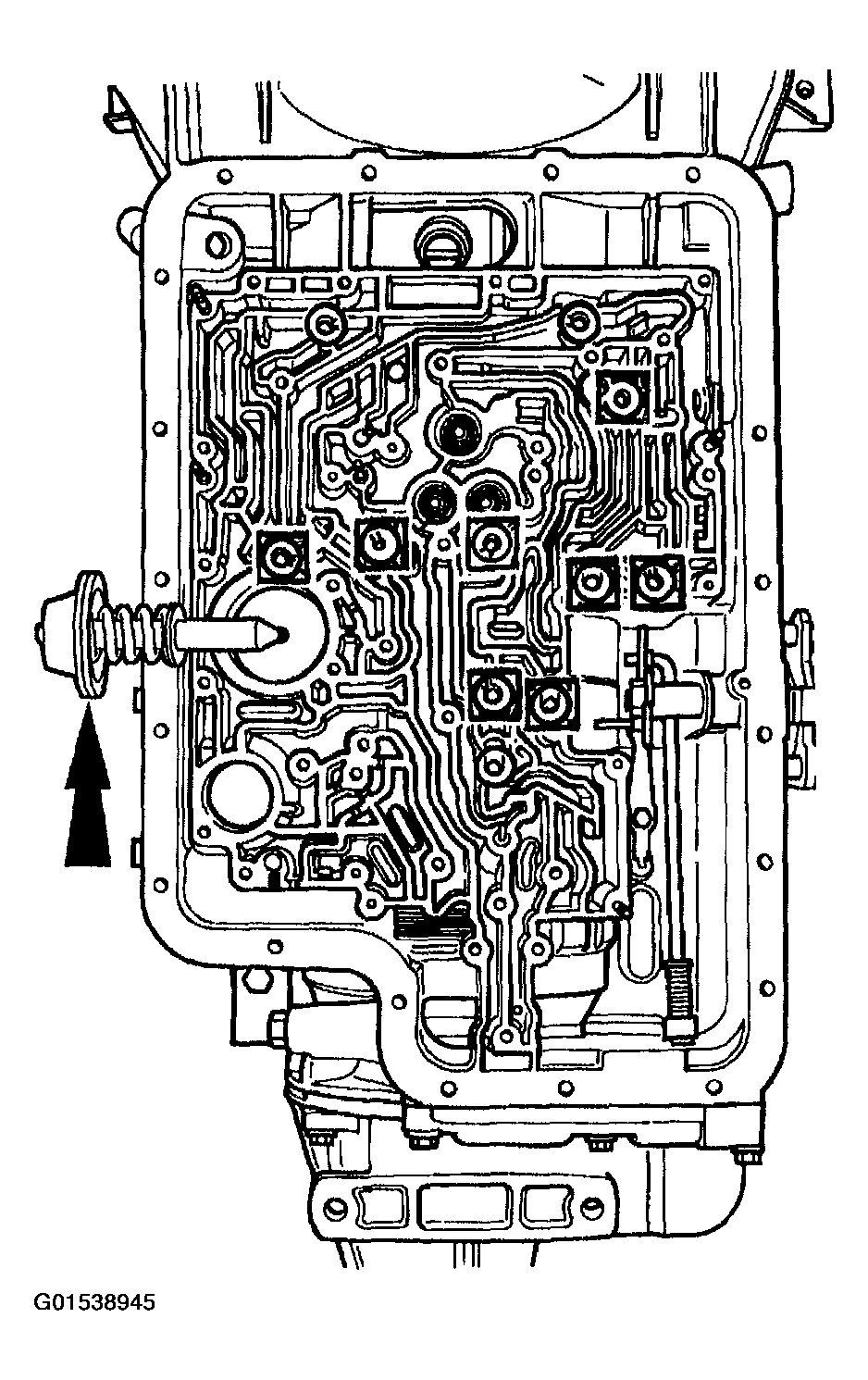

    Fig 1: Removing Intermediate Servo
    G01538945Courtesy of FORD MOTOR CO.
  2. Remove the intermediate servo.
