Intermediate Servo: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Lubricate the servo seal with clean transmission fluid.

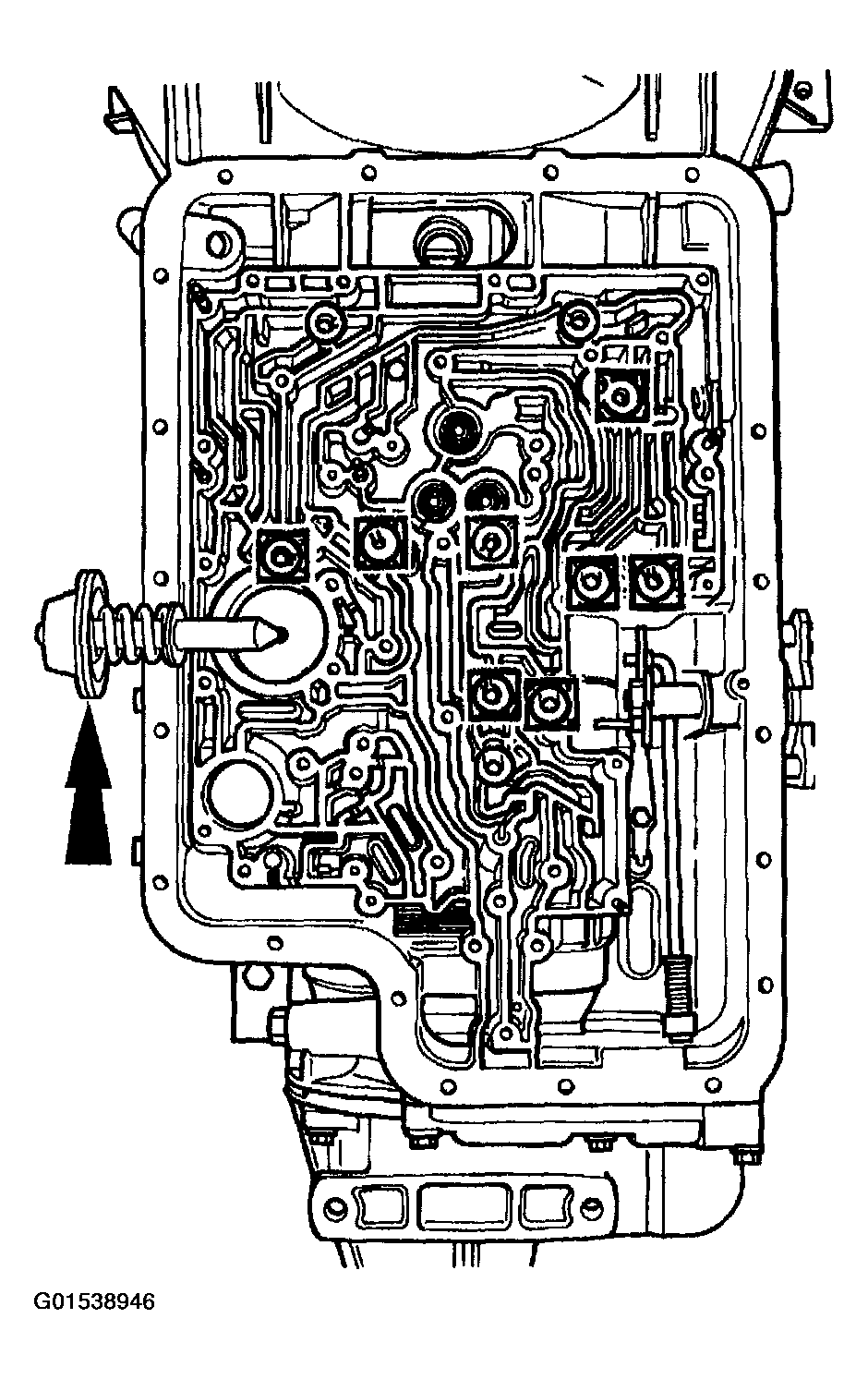

    Fig 1: Installing Intermediate Band Servo
    G01538946Courtesy of FORD MOTOR CO.
  1. Install the intermediate band servo.
  2. Install the main control valve body.
