Extension Housing Gasket: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: The extension must have a shoulder or a boss cast in it to hold the orifice lube plug in the back of the case. If the wrong extension housing is used the plug may become loose and/or fall out and cause transmission damage.
    NOTE: Lightly lubricate the gasket with petroleum jelly to hold it in place during assembly.

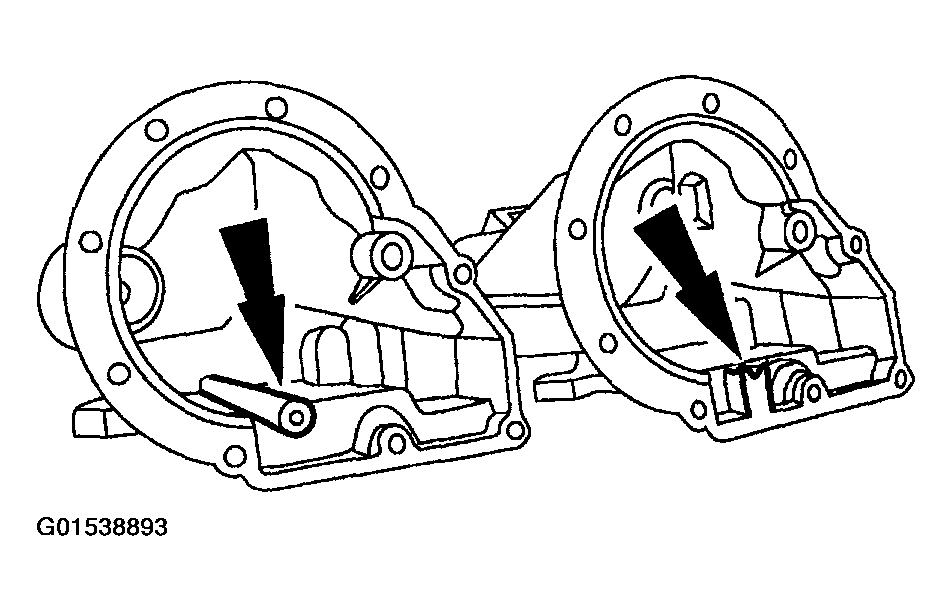

    Fig 1: Installing Extension Housing Gasket
    G01538893Courtesy of FORD MOTOR CO.
  1. Install the new extension housing gasket.
    • Verify that the extension has a shoulder cast in it.
    • Install the new extension housing gasket.
    2. NOTE: Make sure the fasteners are installed in their correct locations as noted during removal.

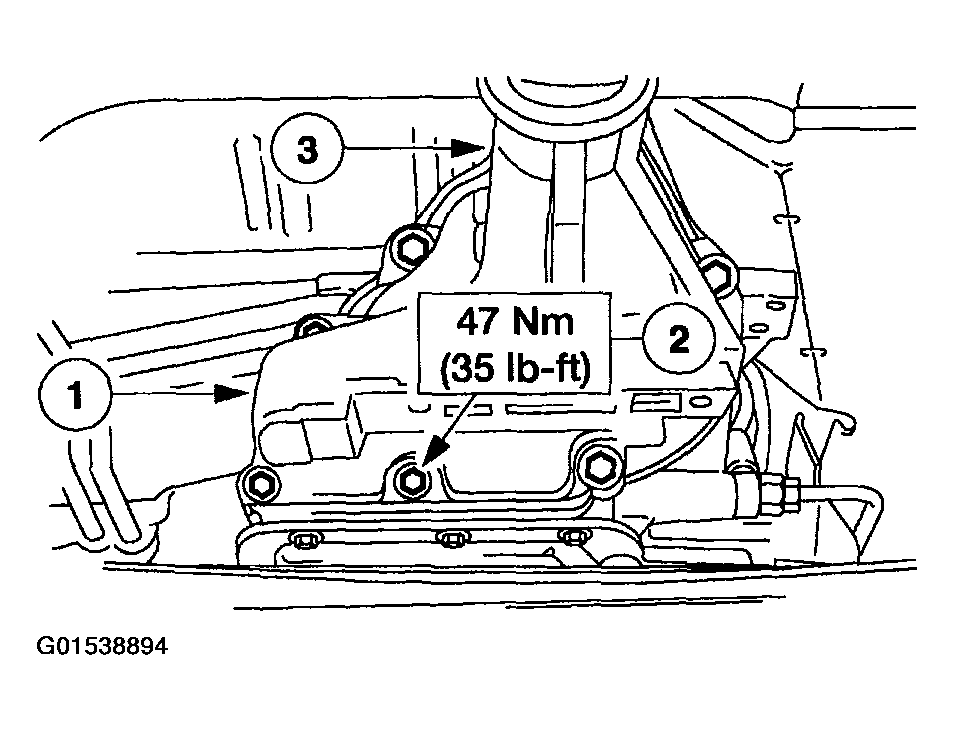

    Fig 2: Installing Extension Housing
    G01538894Courtesy of FORD MOTOR CO.
  2. Install the extension housing.
    1. Install the extension housing.
    2. Install the eight bolts.
    3. Install the stud.
  3. Install the vehicle speed sensor (VSS).
    1. Install the VSS.
    2. Install the bolt.
    3. Connect the electrical connector.

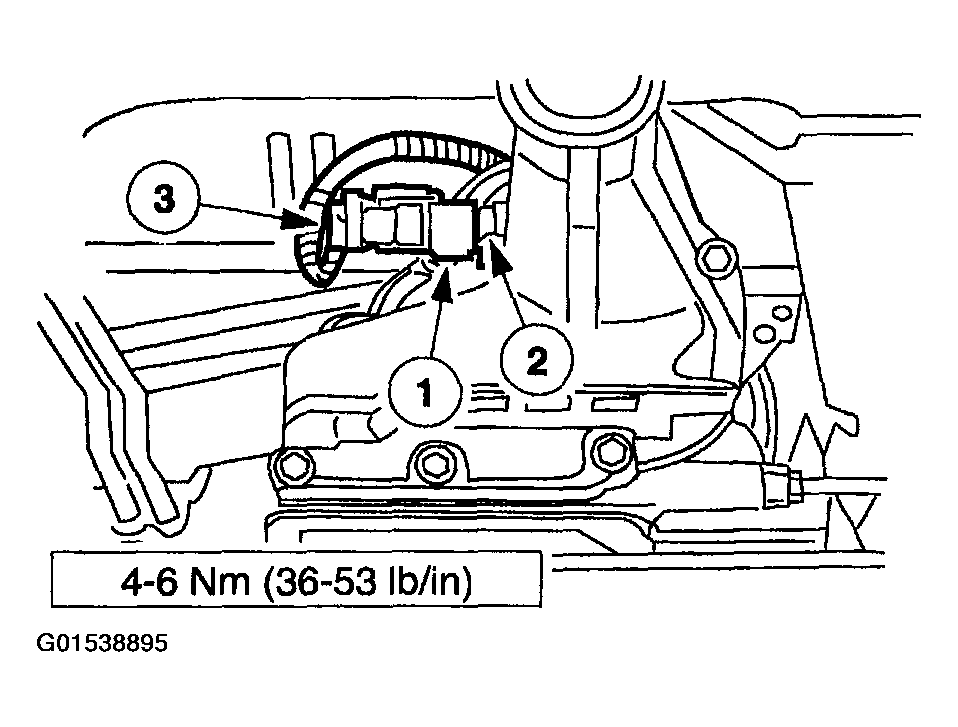

    Fig 3: Installing Vehicle Speed Sensor
    G01538895Courtesy of FORD MOTOR CO.
    4. CAUTION: Be sure not to raise the back of the transmission too high. If it makes contact with the underbody, damaged to the TSS sensor should occur.

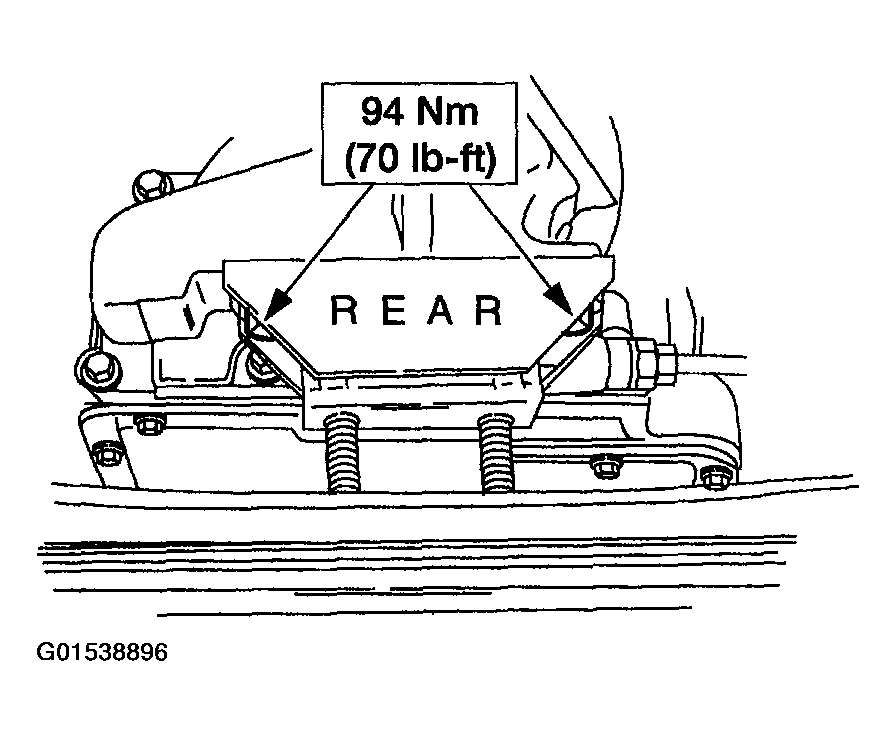

    Fig 4: Installing Transmission Insulator And Retainer And Bolts
    G01538896Courtesy of FORD MOTOR CO.
  4. Install the transmission insulator and retainer and the bolts.
  5. Lower the transmission on to the rear crossmember support.

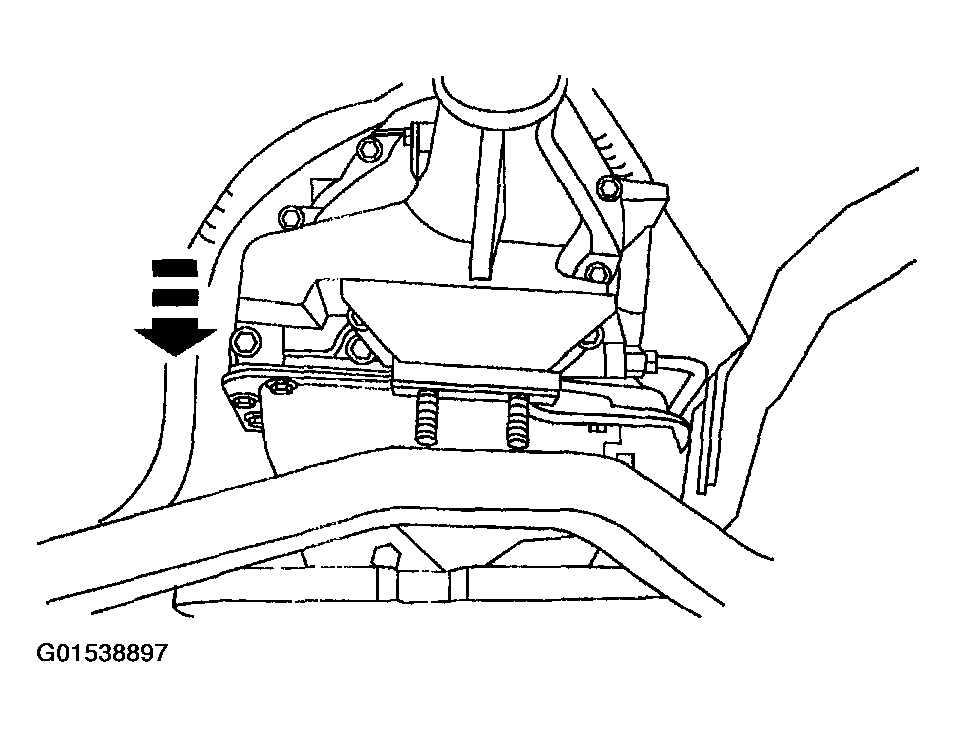

    Fig 5: Installing Rear Crossmember Support
    G01538897Courtesy of FORD MOTOR CO.
  6. Install the transmission insulator and retainer-to-crossmember retaining nuts.

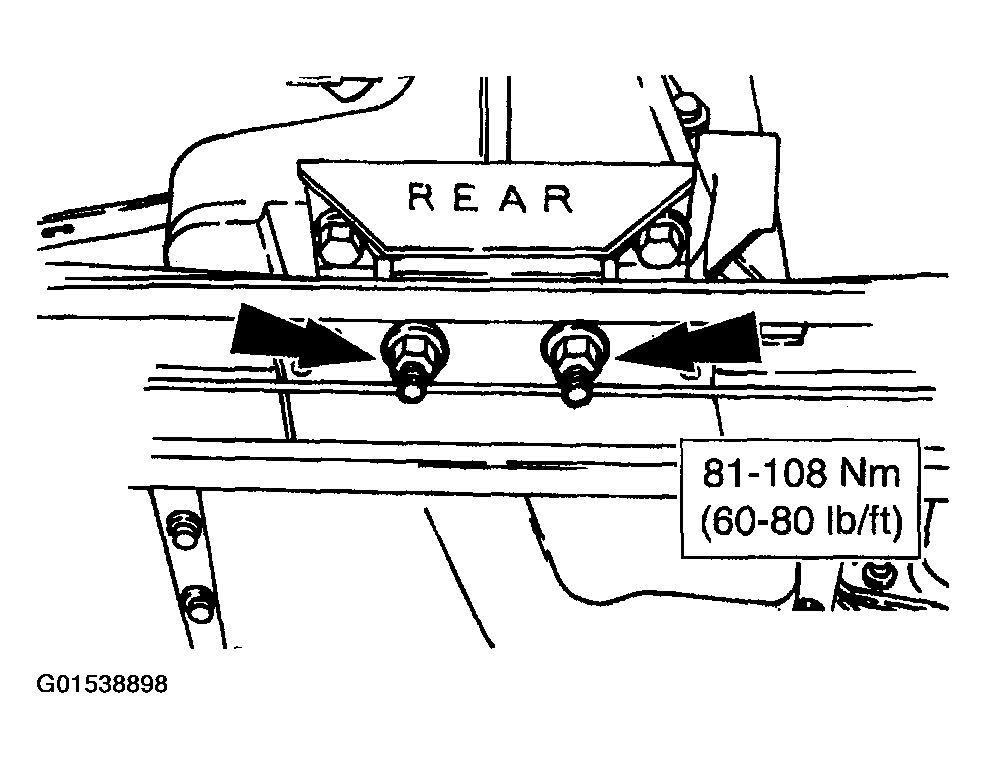

    Fig 6: Installing Transmission Insulator And Retainer-To-Crossmember Retaining Nuts
    G01538898Courtesy of FORD MOTOR CO.
  7. Remove the highlift transmission jack with the special tool from the transmission.

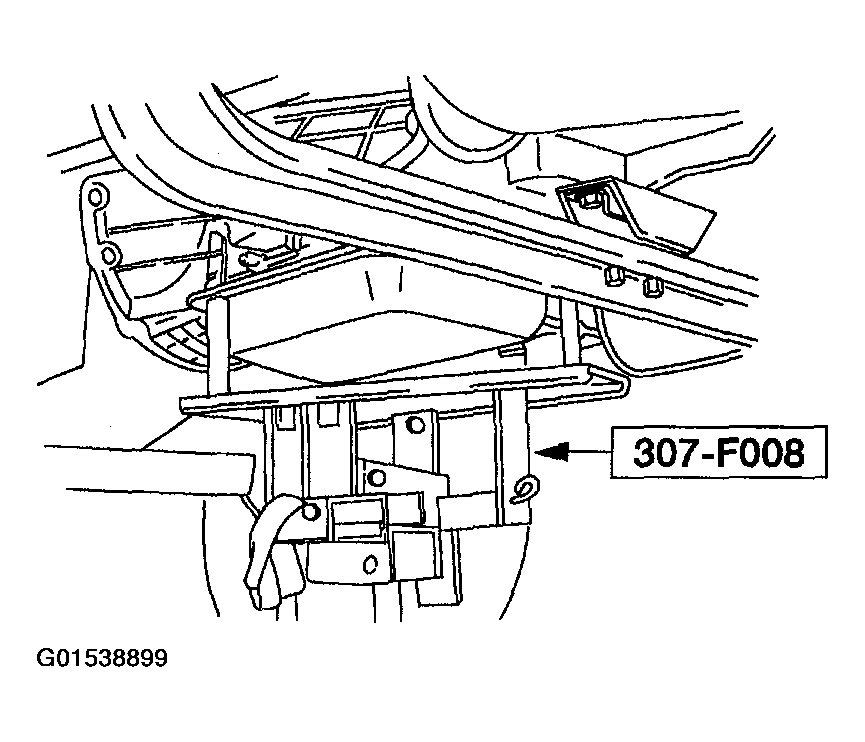

    Fig 7: Removing Highlift Transmission Jack With Special Tool From Transmission
    G01538899Courtesy of FORD MOTOR CO.
  8. Install the transmission fluid pan-to-case retaining bolts.

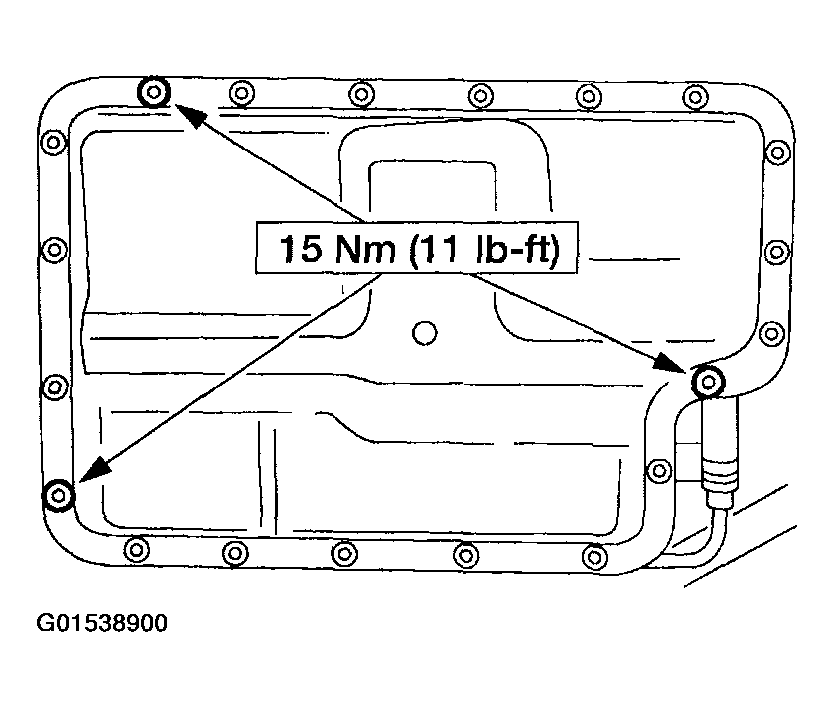

    Fig 8: Installing Transmission Fluid Pan-To-Case Retaining Bolts
    G01538900Courtesy of FORD MOTOR CO.
  9. If equipped, install the transmission-mounted parking brake assembly.
  10. Install the driveshaft.
  11. Lower the vehicle.
  12. Connect the battery ground cable.
  13. Fill the transmission to the specified level with clean automatic transmission fluid. For additional information, refer to the FLUID CAPACITY  in SPECIFICATIONS .
