Digital Transmission Range (Tr) Sensor: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the digital TR sensor.
    1. Install the sensor.
    2. Loosely install the bolts.

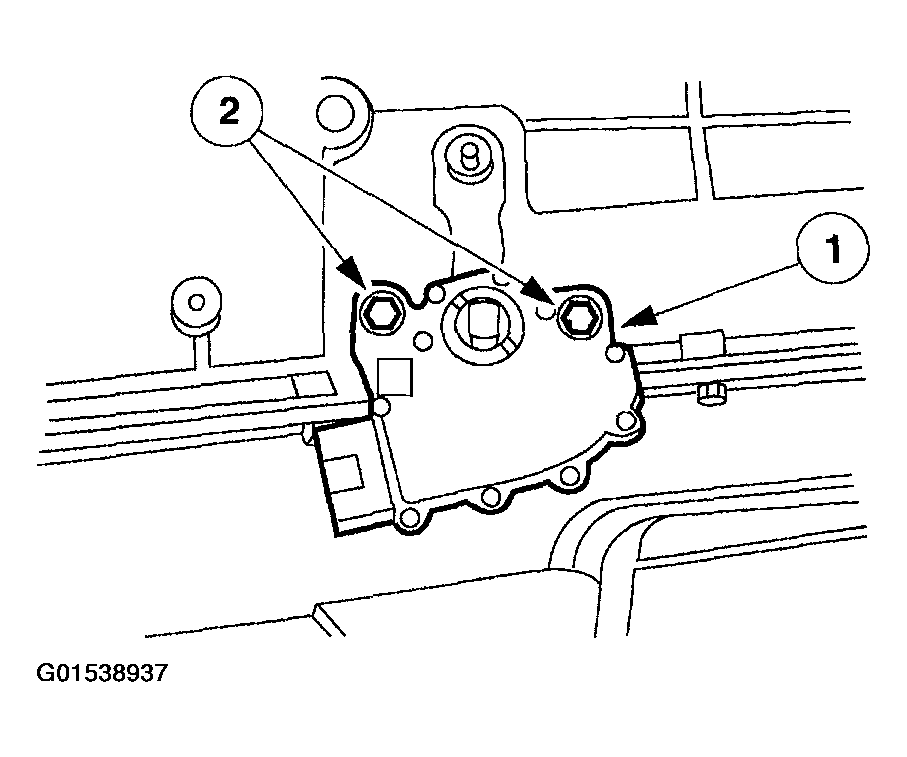

    Fig 1: Installing Digital TR Sensor
    G01538937Courtesy of FORD MOTOR CO.
    2. NOTE: Make sure that the manual control lever is in the neutral position.

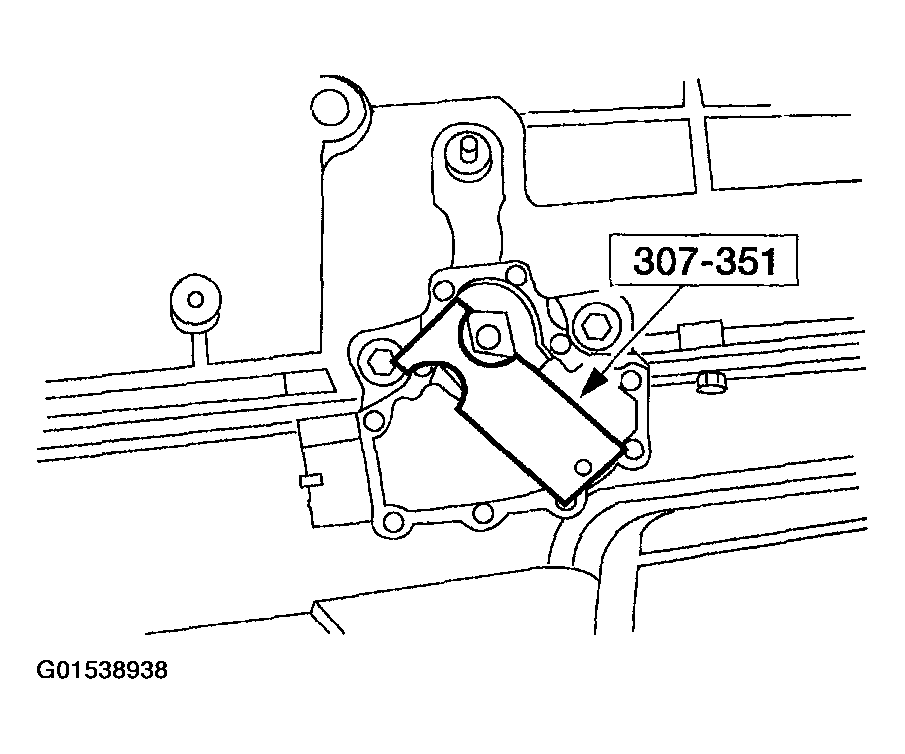

    Fig 2: Aligning Digital TR Sensor Using Special Tool
    G01538938Courtesy of FORD MOTOR CO.
  2. Using the special tool, align the digital TR sensor. The tool is designed to fit snug.
  3. Tighten the bolts.

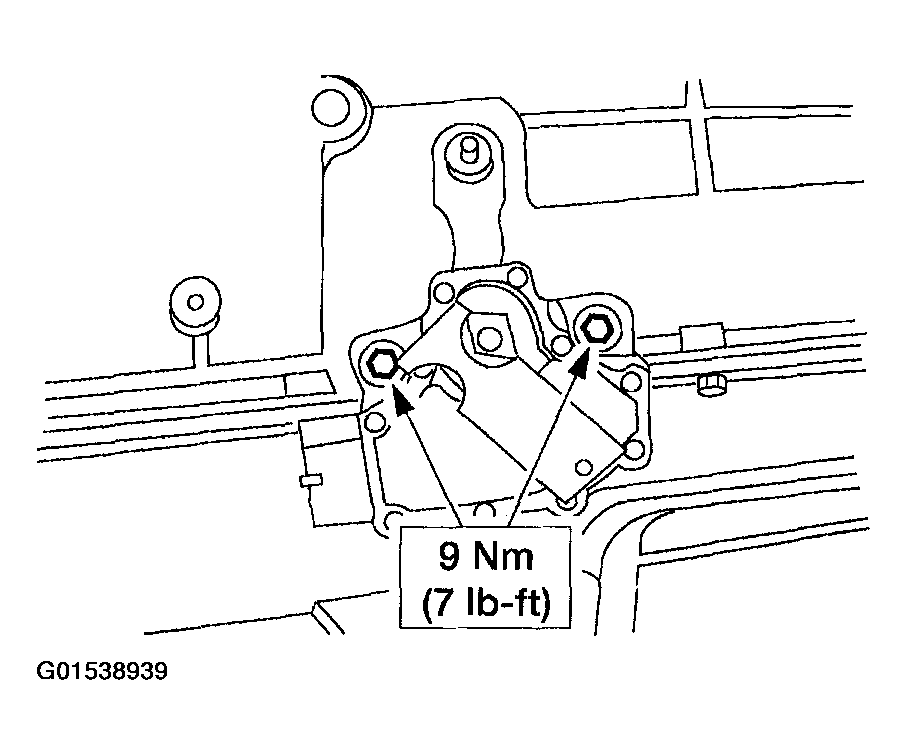

    Fig 3: Tightening Digital TR Sensor Bolts
    G01538939Courtesy of FORD MOTOR CO.
  4. Reconnect the shift cable at the manual control lever.
    Fig 4: Connecting Shift Cable At Manual Control Lever
    G01538940Courtesy of FORD MOTOR CO.
  5. Reconnect the connector.

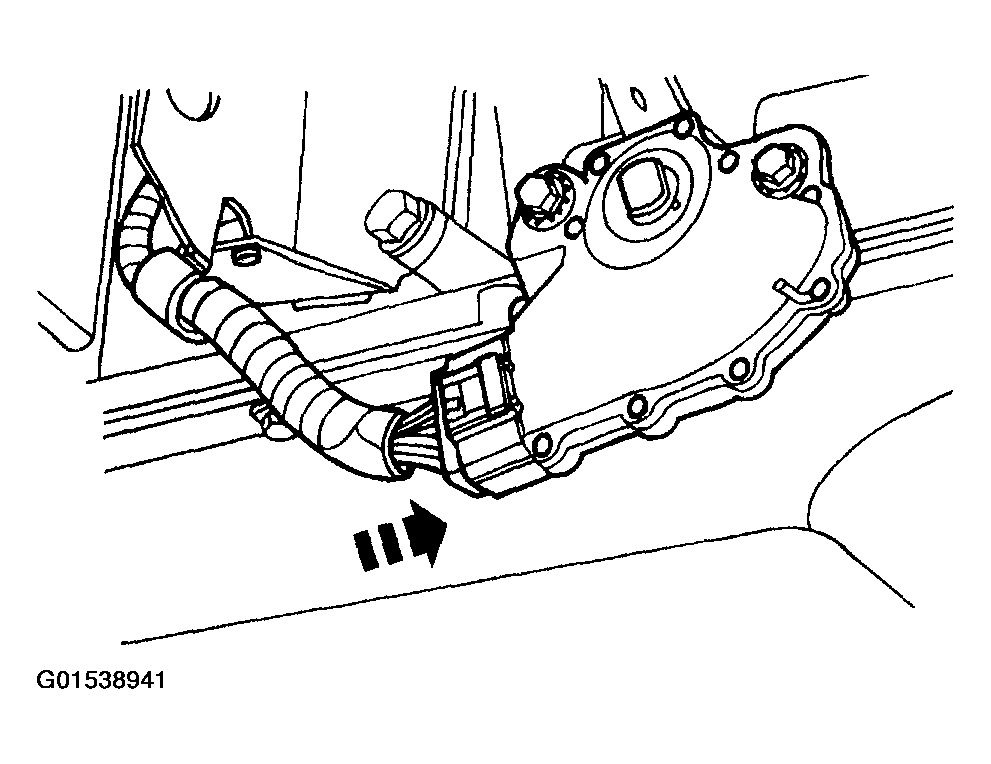

    Fig 5: Connecting Digital TR Sensor Connector
    G01538941Courtesy of FORD MOTOR CO.
  6. Reconnect the battery ground cable.
  7. Lower the vehicle.
