Cooler Bypass Valve: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the front cooler tube, from the front cooler bypass valve (CBV) fitting.

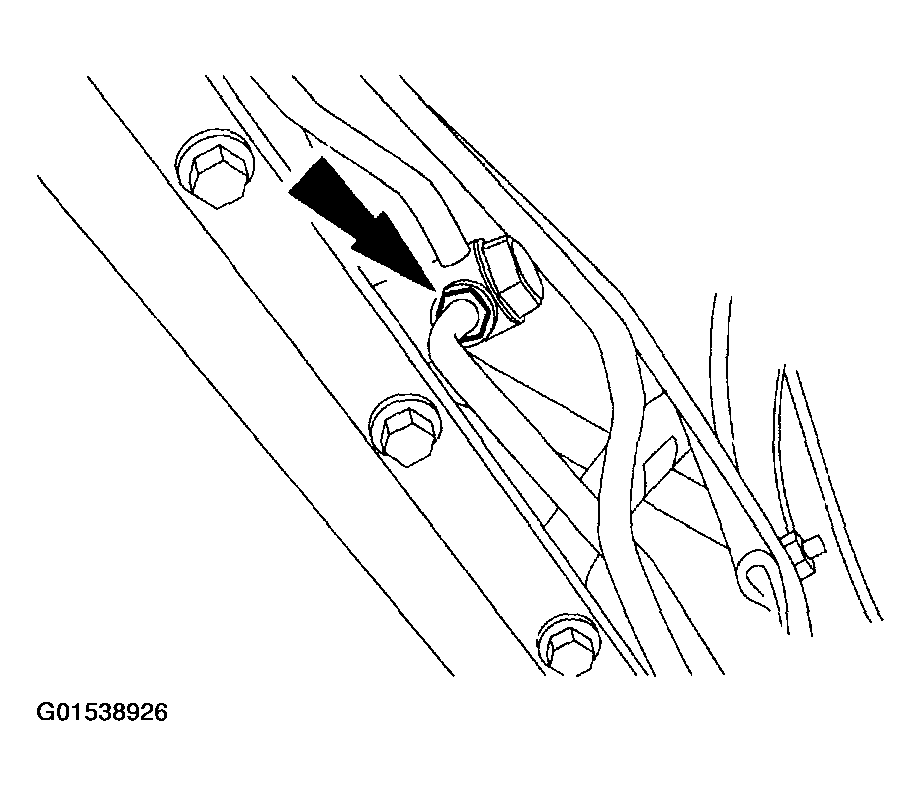

    Fig 1: Removing Front Cooler Tube, From Front Cooler Bypass Valve Fitting
    G01538926Courtesy of FORD MOTOR CO.
  3. Remove the rear cooler tube from the rear CBV fitting.

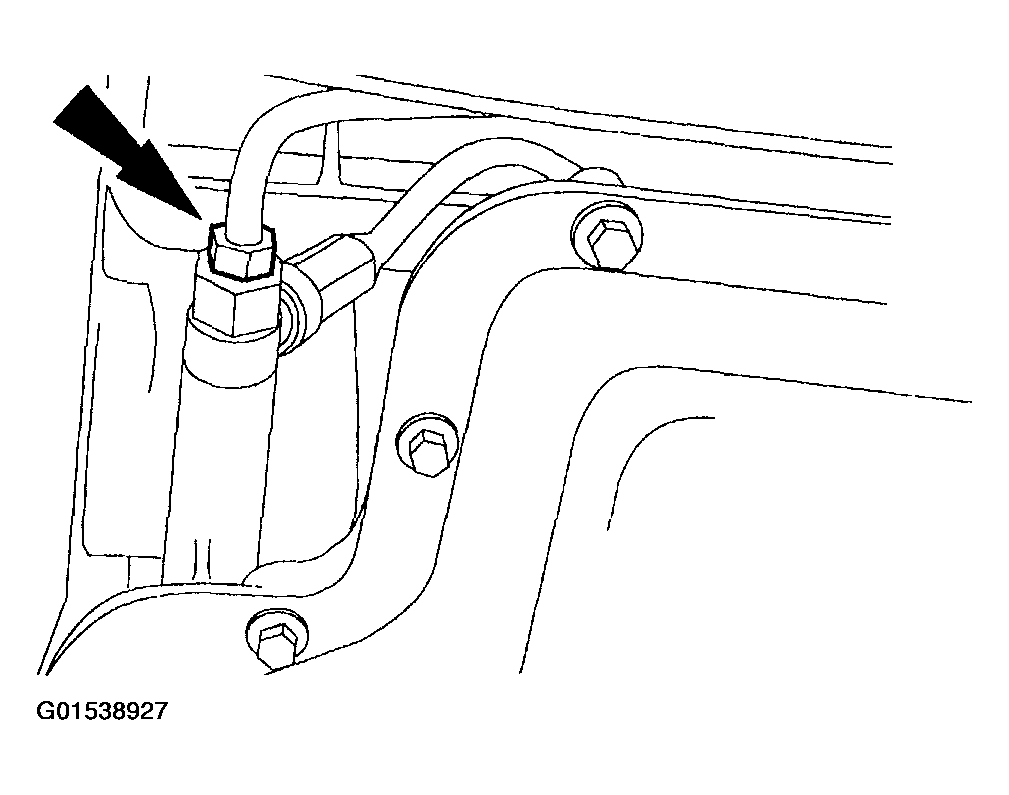

    Fig 2: Removing Rear Cooler Tube From Rear CBV Fitting
    G01538927Courtesy of FORD MOTOR CO.
    4. NOTE: The two rubber coated sealing washers can fall out during removal of the front line case fitting.

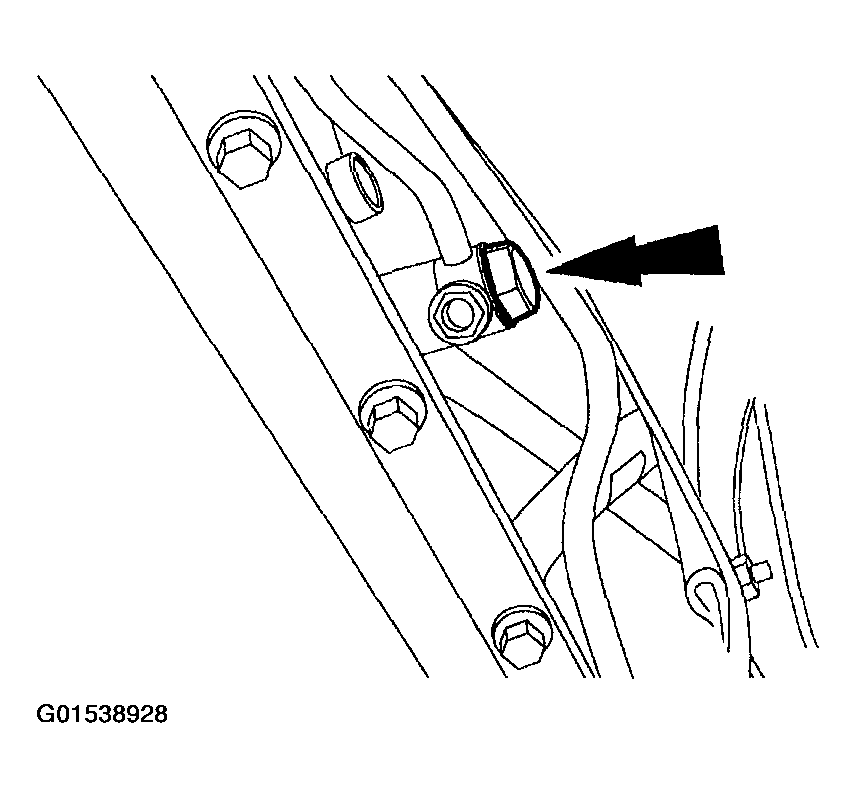

    Fig 3: Removing Front Case Fitting
    G01538928Courtesy of FORD MOTOR CO.
  4. Remove the front case fitting.
    5. NOTE: The two rubber coated sealing washers can fall out during removal of the rear line case fitting.

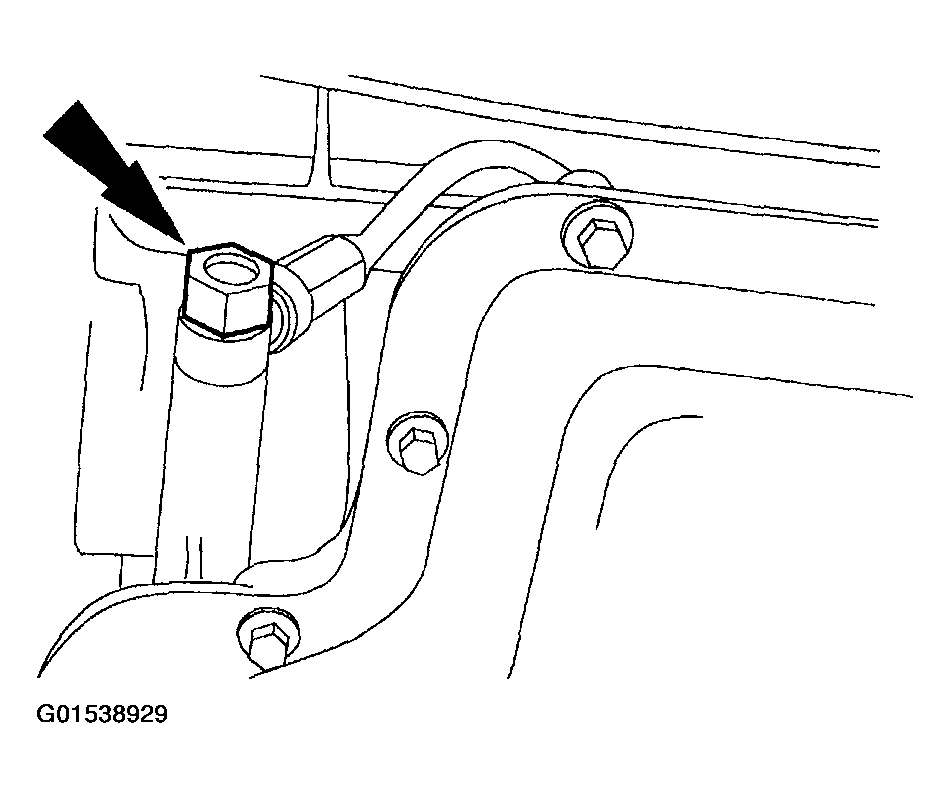

    Fig 4: Removing Rear Line Case Fitting
    G01538929Courtesy of FORD MOTOR CO.
  5. Remove the rear line case fitting.
  6. Remove and clean the CBV. For additional information, refer to COOLER BYPASS VALVE ASSEMBLY .
