Transmission Range (Tr) Sensor Adjustment: Adjustment

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the vehicle on a hoist. Place in NEUTRAL.
  2. Loosen the digital TR sensor bolts.

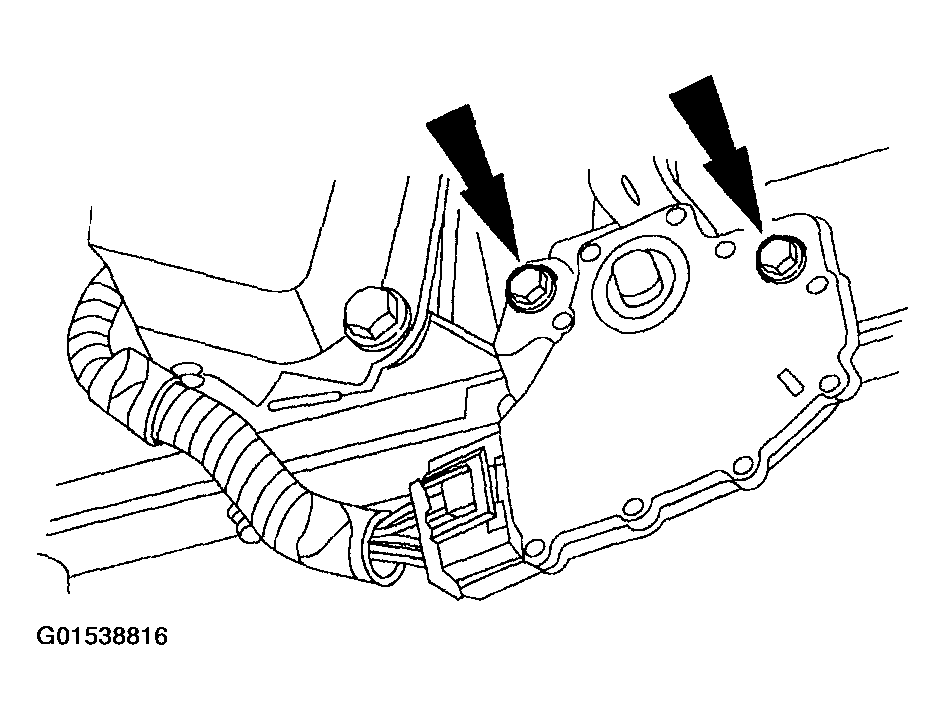

    Fig 1: Loosening Digital TR Sensor Bolts
    G01538816Courtesy of FORD MOTOR CO.
    3. NOTE: Make sure that the manual control lever is in the NEUTRAL position.

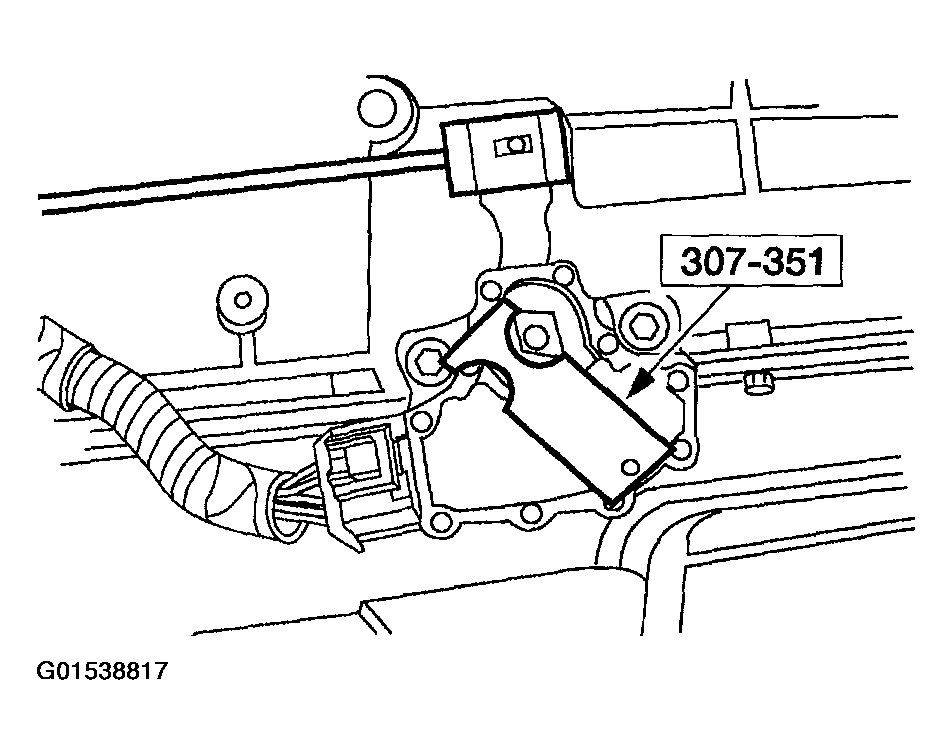

    Fig 2: Aligning Digital TR Sensor Using Special Tool
    G01538817Courtesy of FORD MOTOR CO.
  3. Using the special tool, align the digital TR sensor.
  4. Tighten the bolts.
    Fig 3: Tightening Digital TR Sensor Bolts
    G01538818Courtesy of FORD MOTOR CO.
  5. Lower the vehicle.
