Vehicles Equipped With A Fluid Pan And Torque Converter Drain Plug

DRAINING

1. With the vehicle in NEUTRAL, position on a hoist.

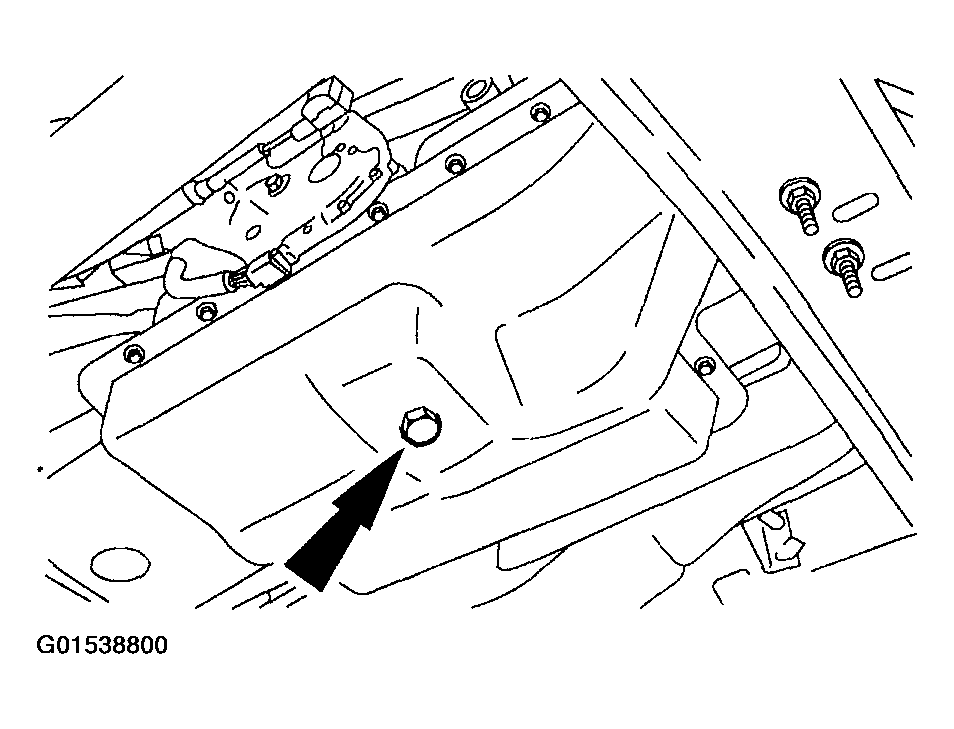

2. Remove the drain plug and allow the fluid to drain.
   Fig 1: Removing Drain Plug

   Courtesy of FORD MOTOR CO.

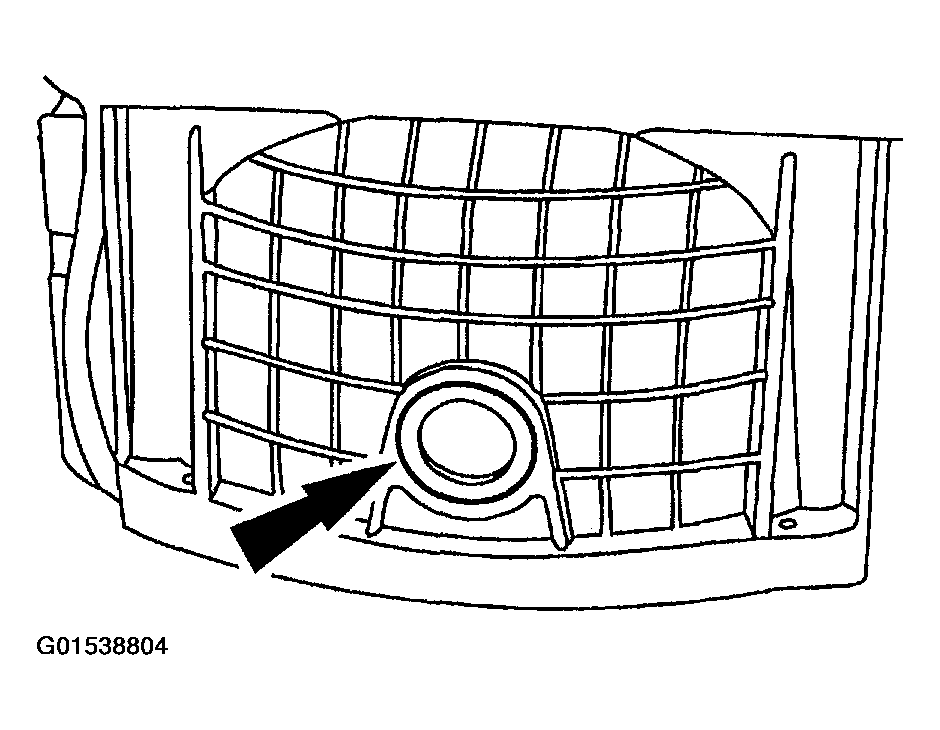

3. Remove the torque converter drain plug cover.
   Fig 2: Removing Torque Converter Drain Plug Cover

   Courtesy of FORD MOTOR CO.

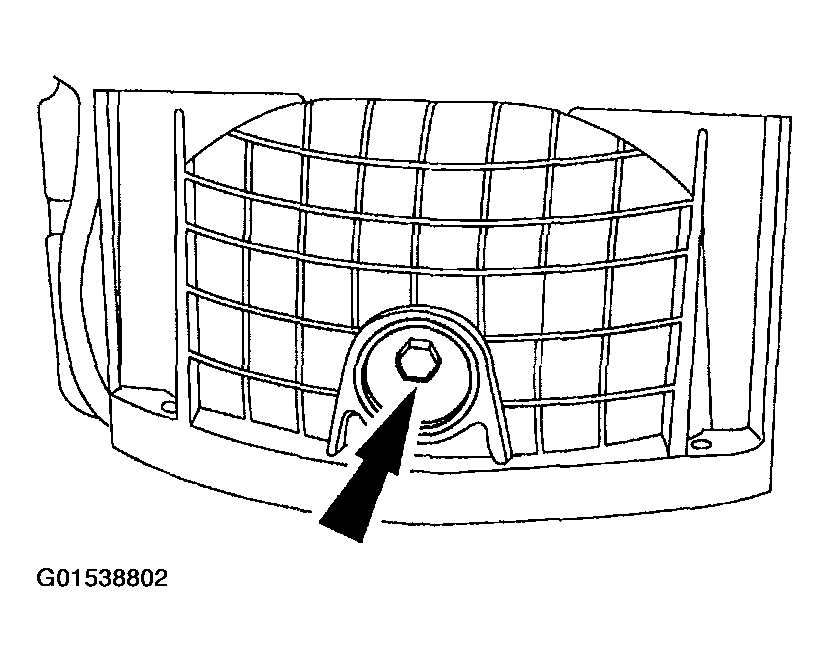

4. Remove the torque converter drain plug and discard.
   Fig 3: Removing Torque Converter Drain Plug

   Courtesy of FORD MOTOR CO.
5. Allow the fluid to drain.
NOTE: If equipped with a radiator in-tank transmission fluid cooler or an auxiliary cooler, the coolers will need to be flushed.
6. Only flush the cooler tubes, fluid coolers and the bypass valve if carrying out a transmission overhaul. For additional information, refer to TRANSMISSION FLUID COOLER - BACKFLUSHING AND CLEANING .

   REFILL

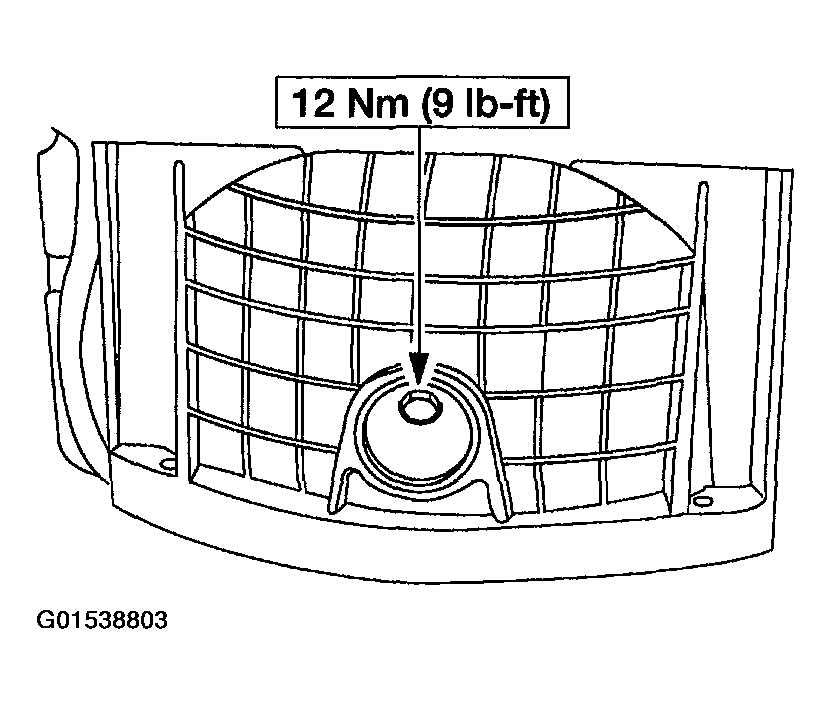

7. After the torque converter has drained, install a new drain plug.
   Fig 4: Installing Drain Plug

   Courtesy of FORD MOTOR CO.

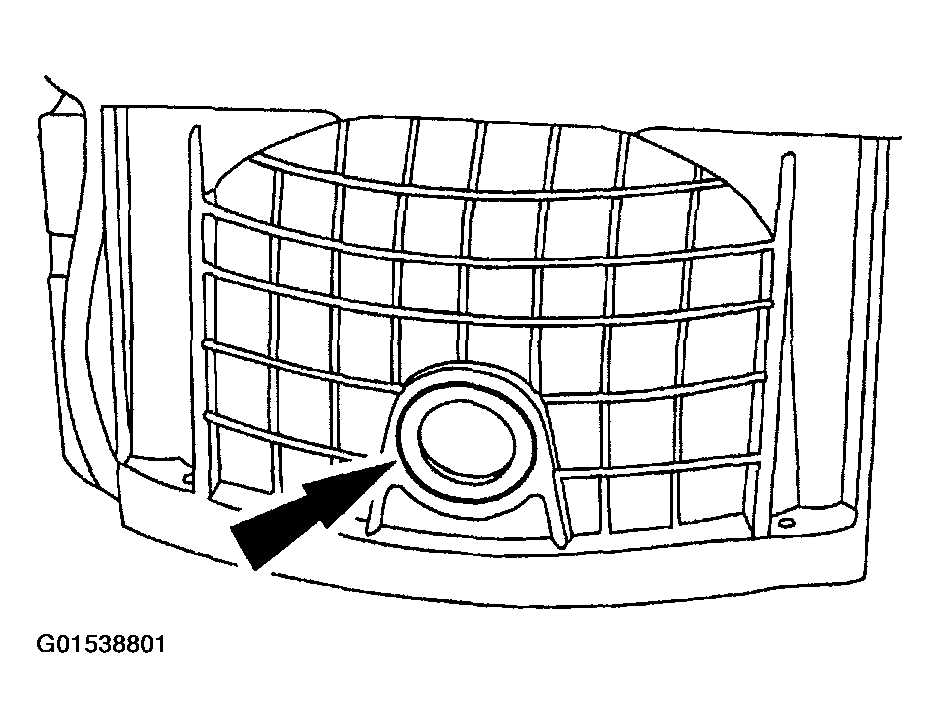

8. Install the torque converter drain plug cover.
   Fig 5: Installing Torque Converter Drain Plug Cover

   Courtesy of FORD MOTOR CO.

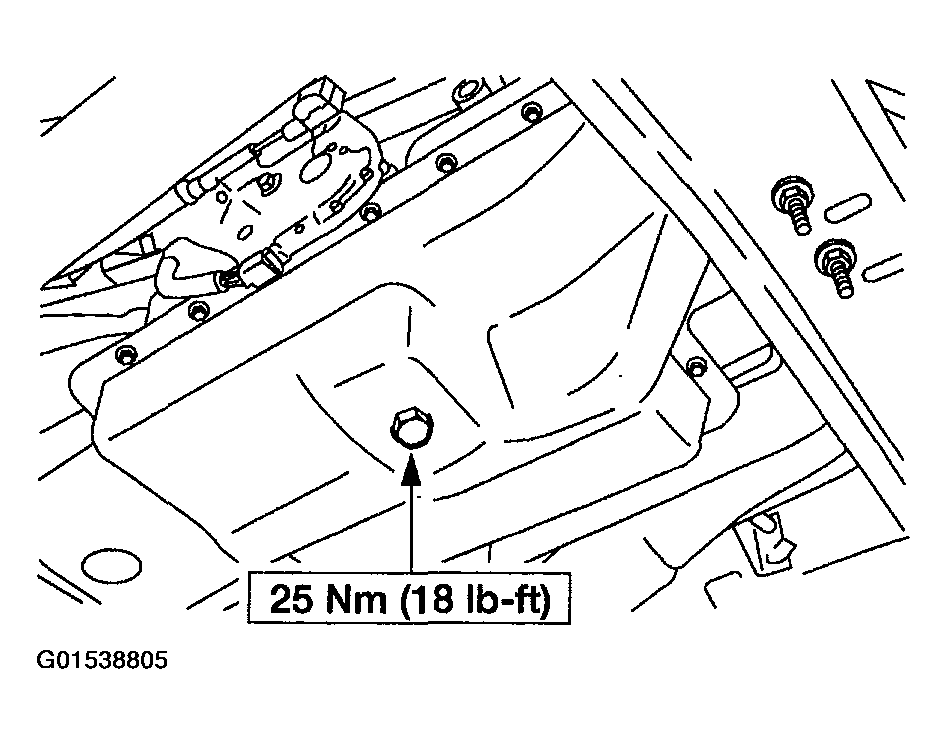

9. Install the drain plug.
   Fig 6: Installing Drain Plug

   Courtesy of FORD MOTOR CO.
CAUTION: The use of any other fluids than specified can result in the transmission failing to operate in a normal manner or transmission failure.
10. Fill the transmission.
    • Add 6.2 liters (6.5 qts) of clean automatic transmission fluid to the transmission through the fluid filler tube.
11. Start the engine. Move the transmission range selector lever through all the gear ranges, checking for engagements.
12. With the engine running and the transmission at normal operating temperature 66-77°C (150-170°F), check and adjust the transmission fluid level, and check for any leaks. If fluid is needed, add fluid in increments of 0.24-liter (0.5-pint) until the correct level is achieved (fluid should be in the cross-hatched area of the fluid level indicator).
