Torque Converter End Play Check

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL(S)

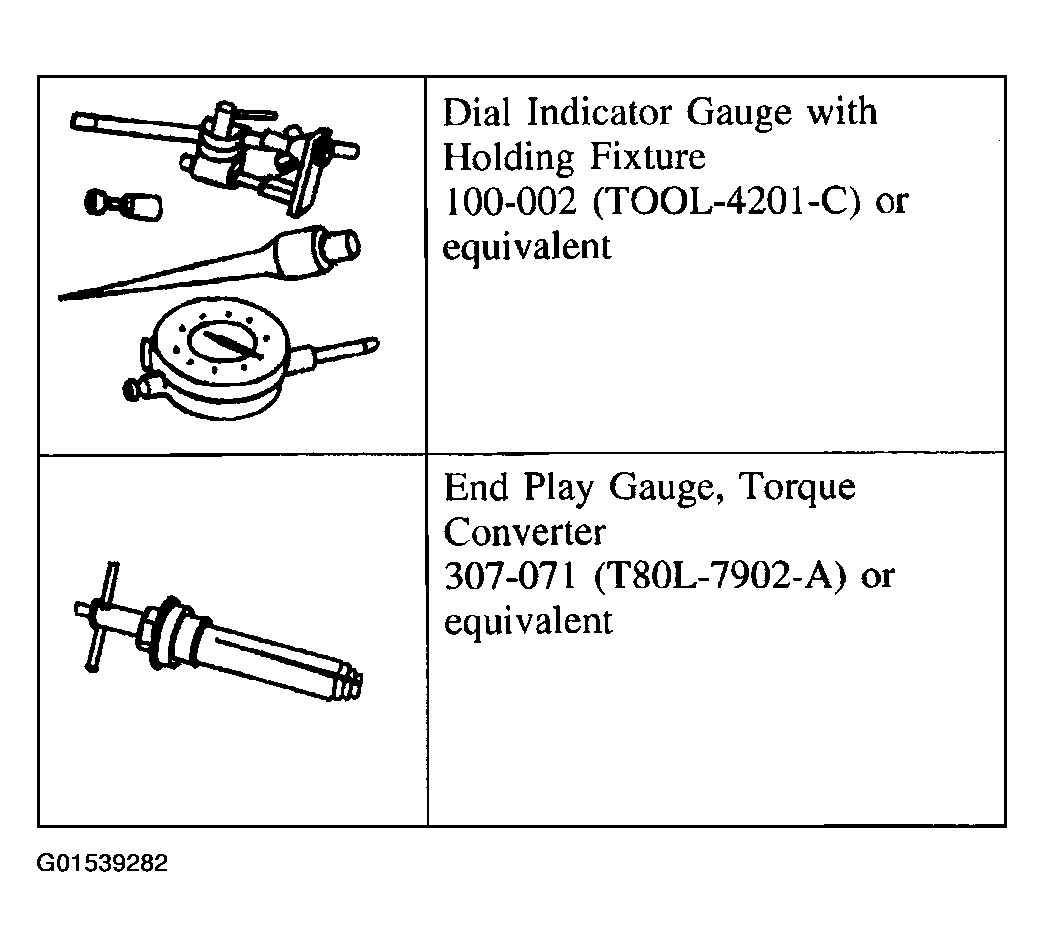

Fig 1: Identifying Special Tools

Courtesy of FORD MOTOR CO.

Install the special tool into the torque converter pump drive.
- Tighten the inner post until the tool is securely locked.

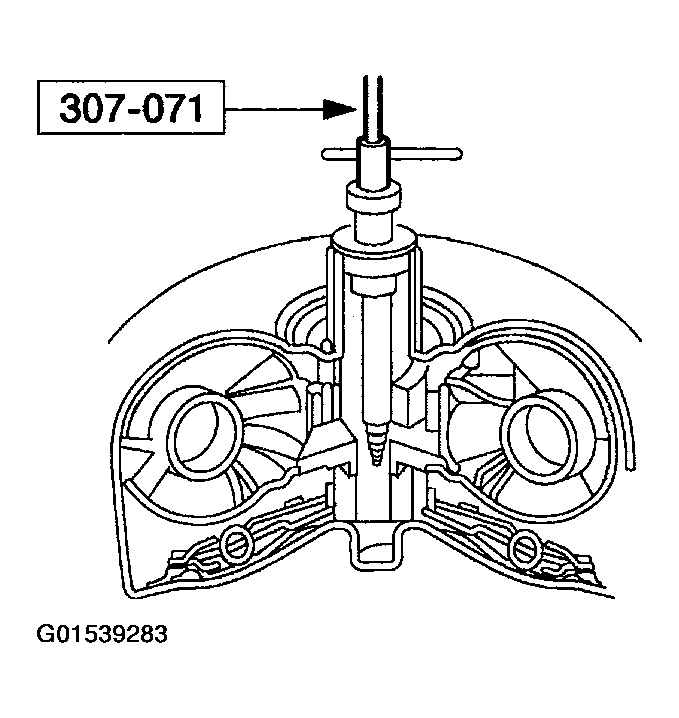

Fig 2: Installing Special Tool Into Torque Converter Pump Drive
Courtesy of FORD MOTOR CO.
Install the special tool on the converter pump drive hub and zero the dial indicator.

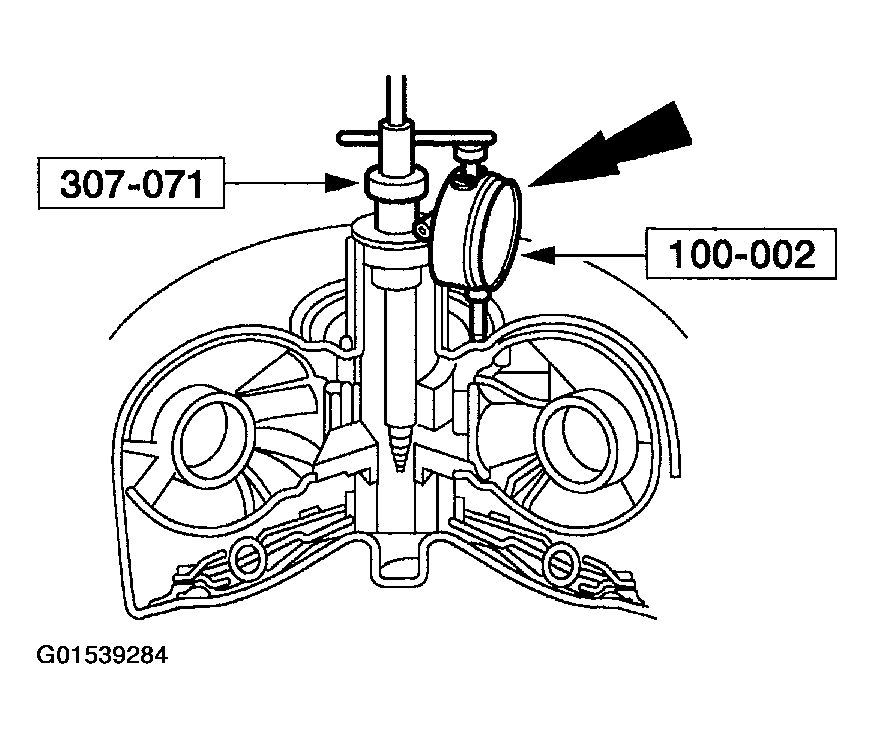

Fig 3: Installing Special Tool On Converter Pump Drive Hub
Courtesy of FORD MOTOR CO.
Lift up on the special tool as far as it will move and note the dial indicator reading.
- If the reading exceeds end play limits, install a new or remanufactured torque converter.
Torque Converter End Play

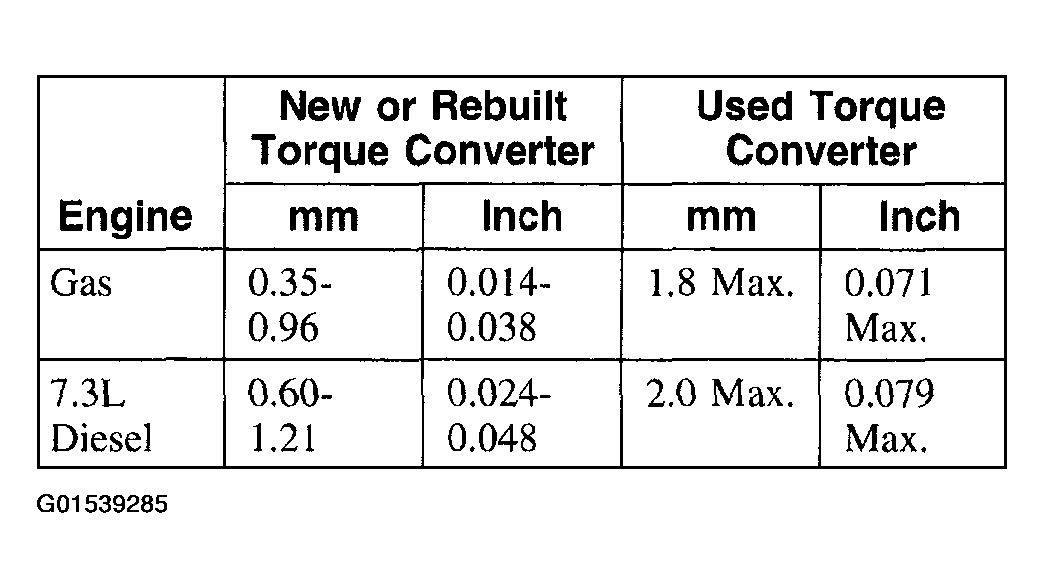

Fig 4: Torque Converter End Play Specifications
Courtesy of FORD MOTOR CO.

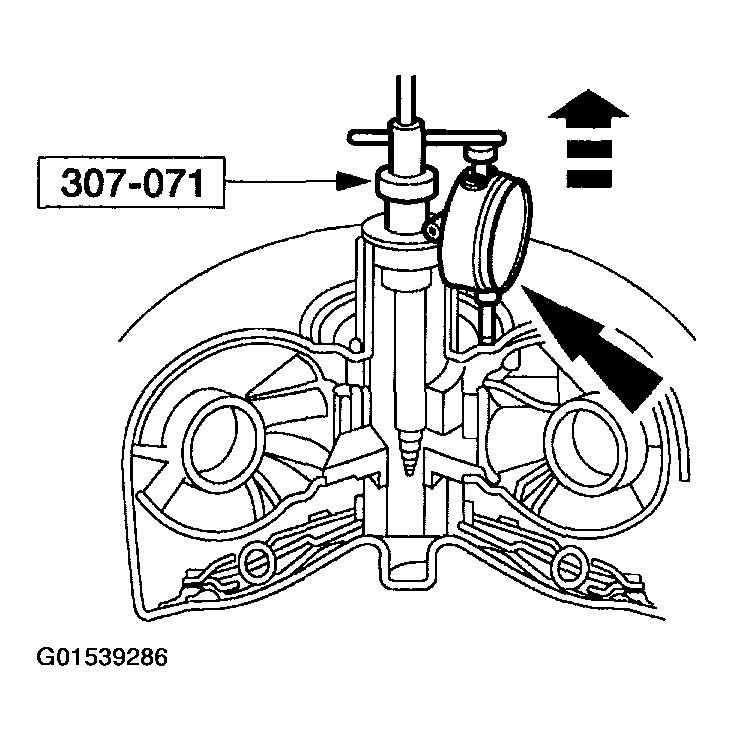

Fig 5: Measuring Torque Converter End Play
Courtesy of FORD MOTOR CO.
Remove the special tool.
