Reverse Planet Assembly: Disassembly

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Individual parts of the planet assemblies are not repairable.
  1. Remove the No. 11 rear reverse planet thrust washer.

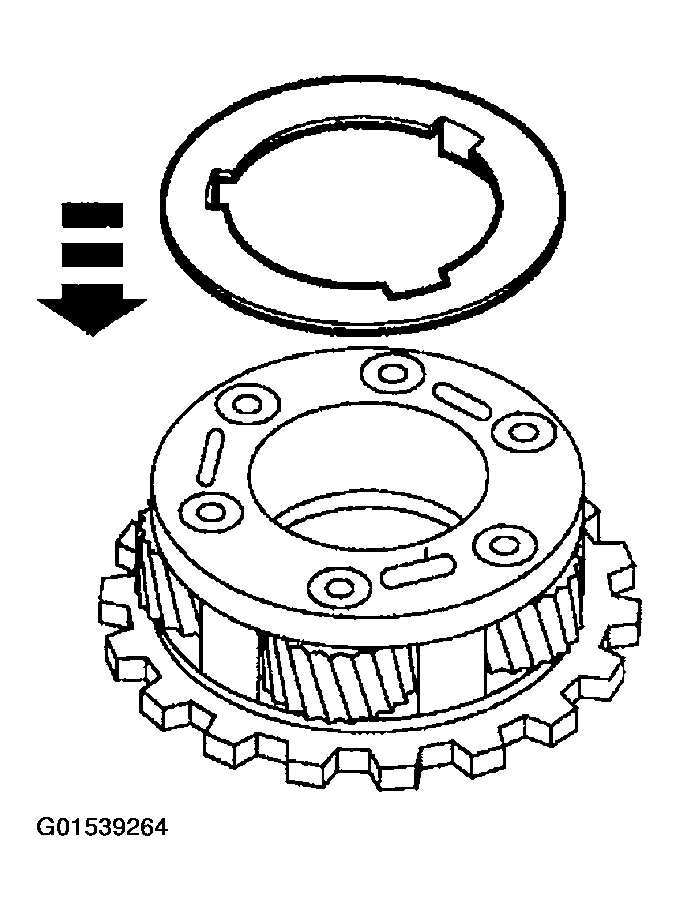

    Fig 1: Removing No. 11 Rear Reverse Planet Thrust Washer
    G01539264Courtesy of FORD MOTOR CO.
  2. Remove the No. 10B front reverse planet thrust washer.
    • The pins and shafts in the planet assemblies should be checked for loose fit/damage. Use a new planet assembly if either condition exists.
    • Inspect the pinion gears for damaged or excessively worn teeth.
    • Check for free rotation of the pinion gears.
    • Check for damage in the overdrive planet assembly.

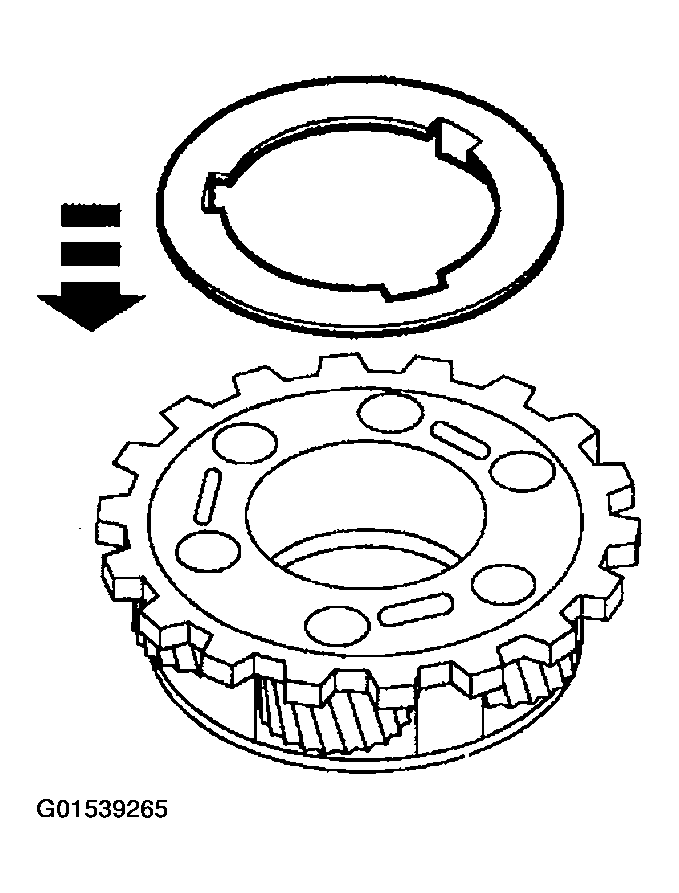

    Fig 2: Removing No. 10B Front Reverse Planet Thrust Washer
    G01539265Courtesy of FORD MOTOR CO.
