Reverse Clutch Piston: Disassembly

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the reverse clutch piston outer lip seal.

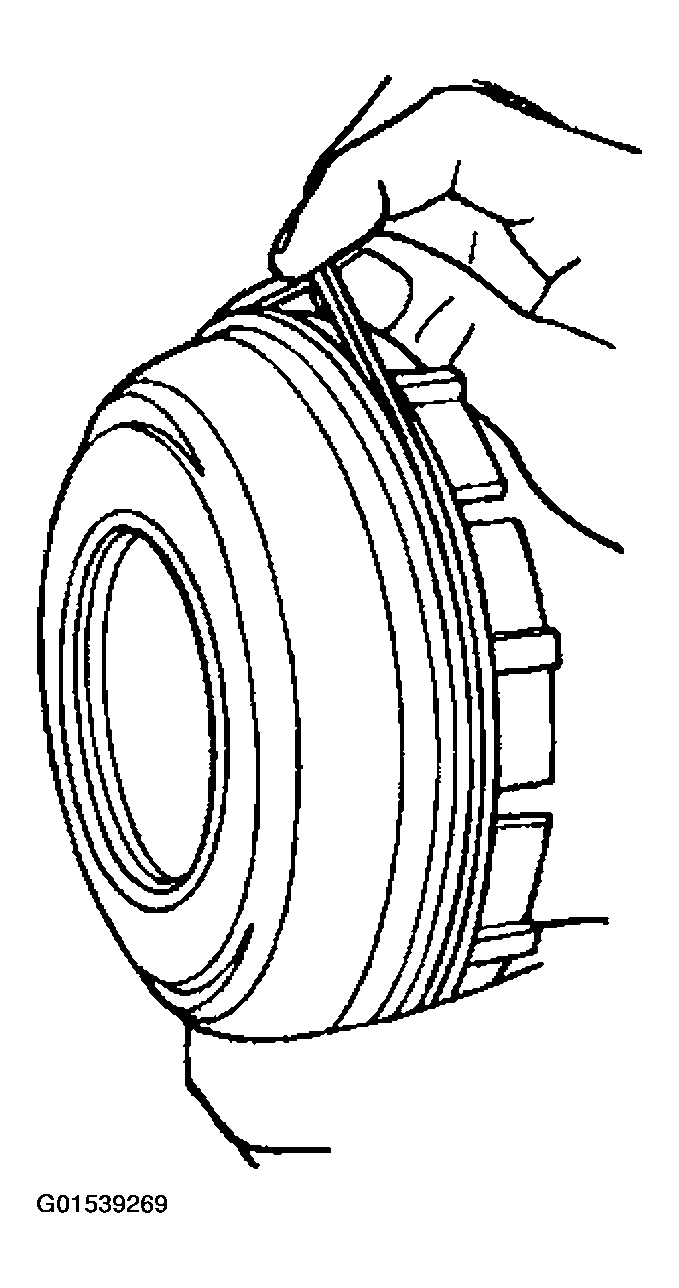

    Fig 1: Removing Reverse Clutch Piston Outer Lip Seal
    G01539269Courtesy of FORD MOTOR CO.
  2. Remove the reverse clutch piston inner lip seal.
    Fig 2: Removing Reverse Clutch Piston Inner Lip Seal
    G01539270Courtesy of FORD MOTOR CO.
