Pump Assembly, Disassembled View

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

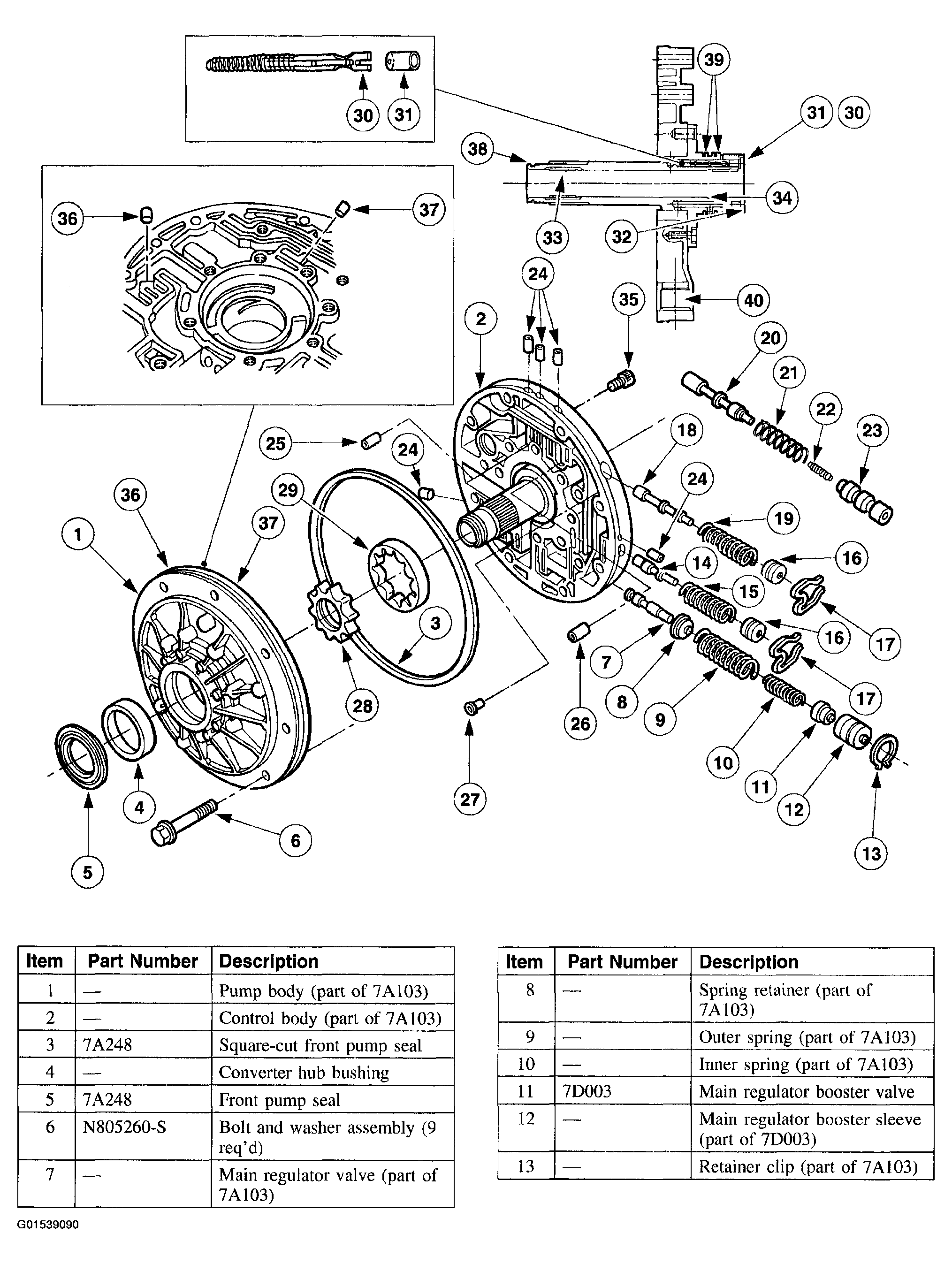

Fig 1: Disassembled View Of Pump Assembly
G01539090Courtesy of FORD MOTOR CO.

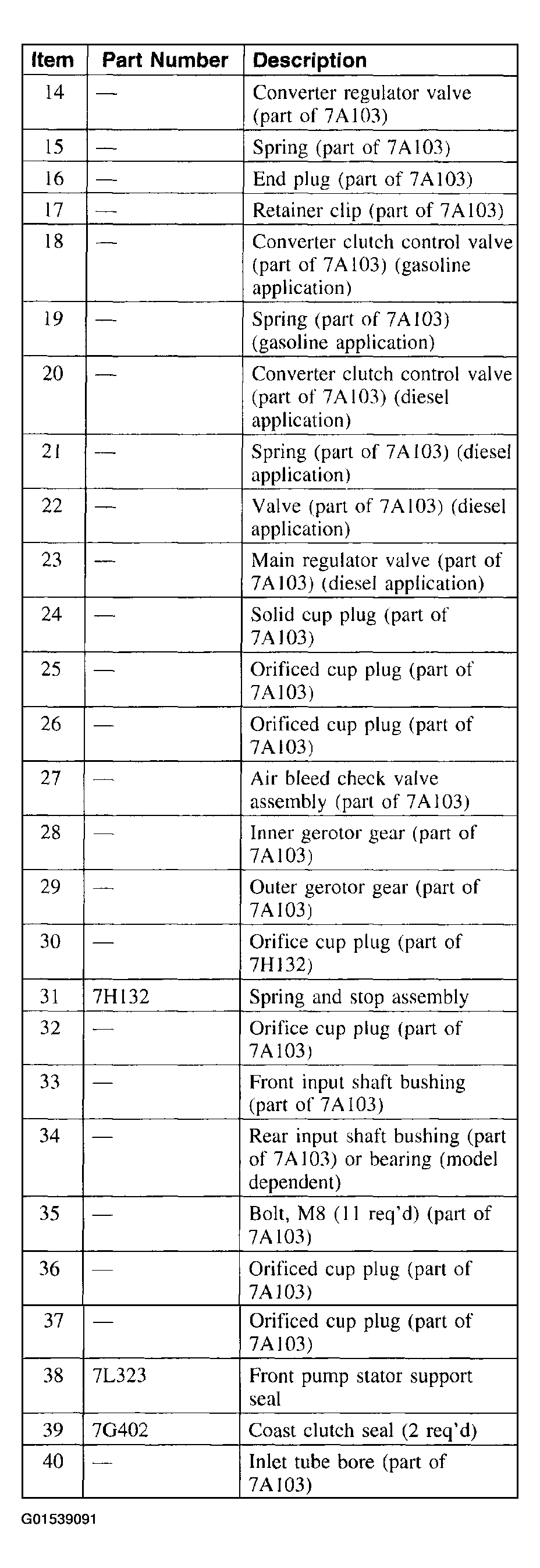

Fig 2: Parts Number Description Chart
G01539091Courtesy of FORD MOTOR CO.
