Pump Assembly: Notes

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL(S)

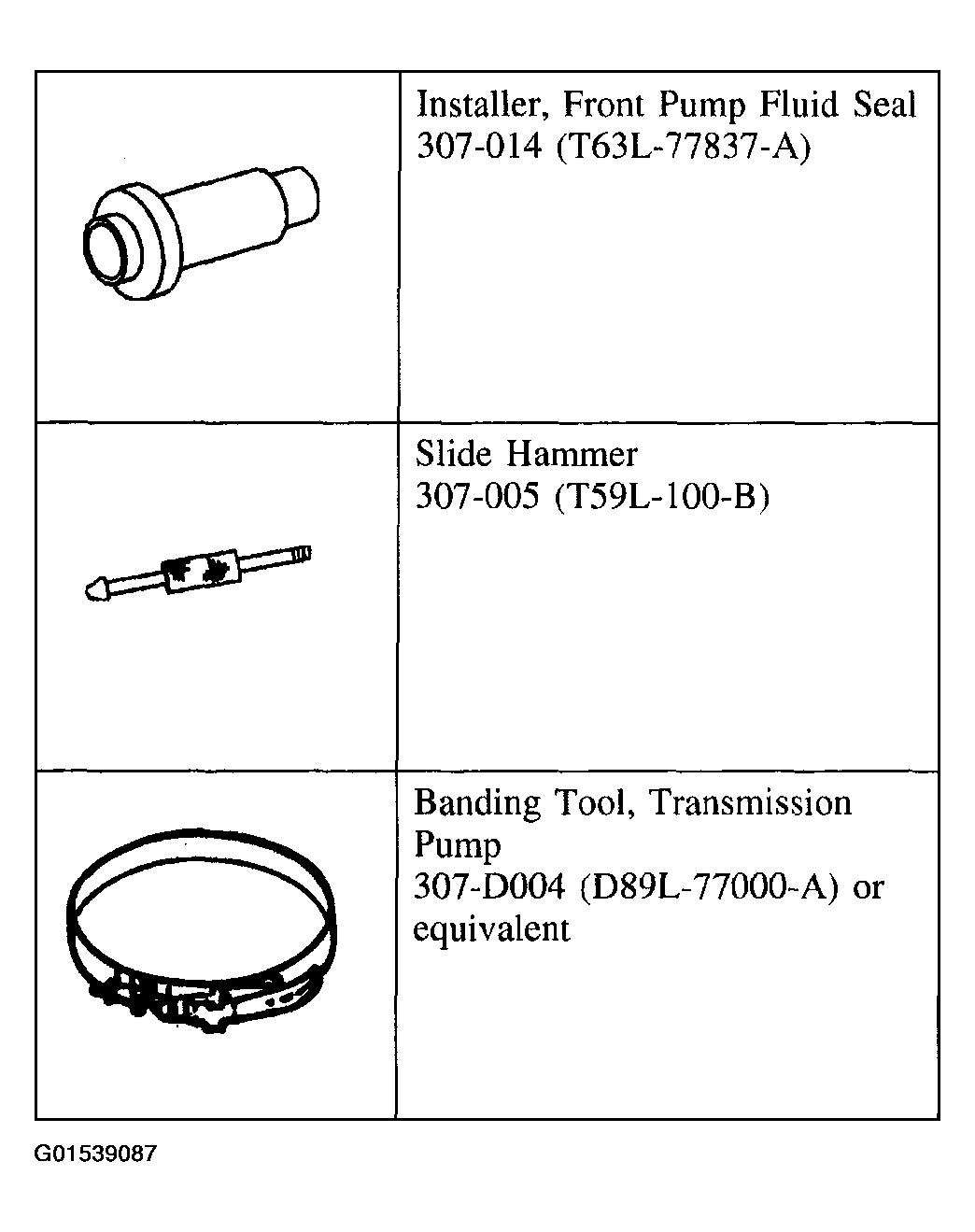

Fig 1: Identifying Special Tools (1 Of 2)
G01539087Courtesy of FORD MOTOR CO.

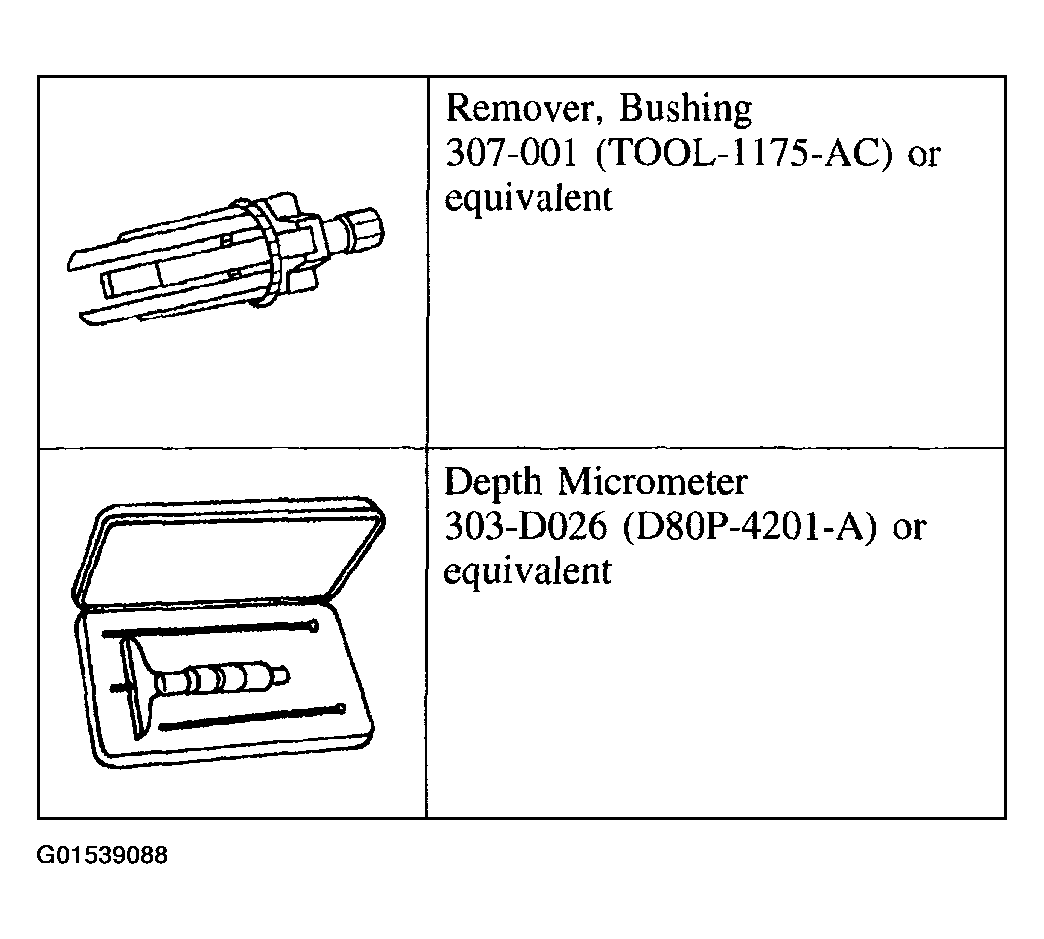

Fig 2: Identifying Special Tools (2 Of 2)
G01539088Courtesy of FORD MOTOR CO.

MATERIAL

Fig 3: Material Specifications
G01539089Courtesy of FORD MOTOR CO.
