Output Shaft - Check Gas Engine: Assembly

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: If any damage is found to the output shaft drive sprocket speed sensor wheel, a new output shaft drive sprocket speed sensor wheel will need to be installed.
    Fig 1: Installing Park Gear Using Special Tool
    G01539257Courtesy of FORD MOTOR CO.
  1. If removed, use the arbor press and the special tool to install the park gear, press the park gear onto the output shaft until it stops at the shoulder on the output shaft.
  2. If removed, install the output shaft drive sprocket speed sensor wheel using the special tool.

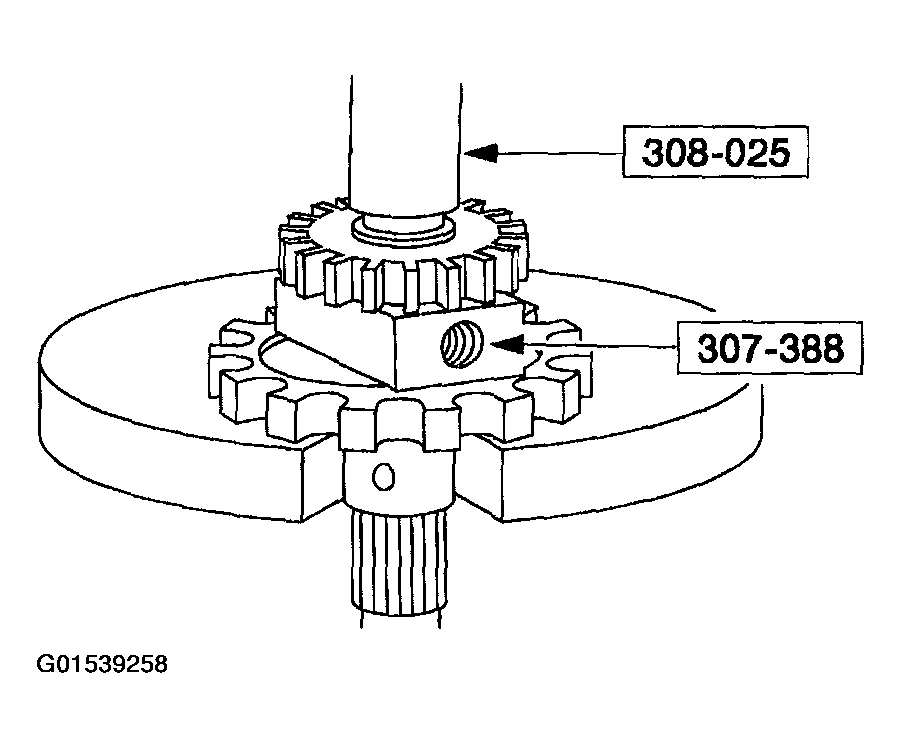

    Fig 2: Installing Output Shaft Drive Sprocket Speed Sensor Wheel Using Special Tool
    G01539258Courtesy of FORD MOTOR CO.
