Main Control Valve Body - Disassembly And Assembly: Notes

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL(S)

Fig 1: Identifying Special Tools
G01539073Courtesy of FORD MOTOR CO.

UPPER, LOWER, ACCUMULATOR AND SOLENOID BODIES, DISASSEMBLED VIEW

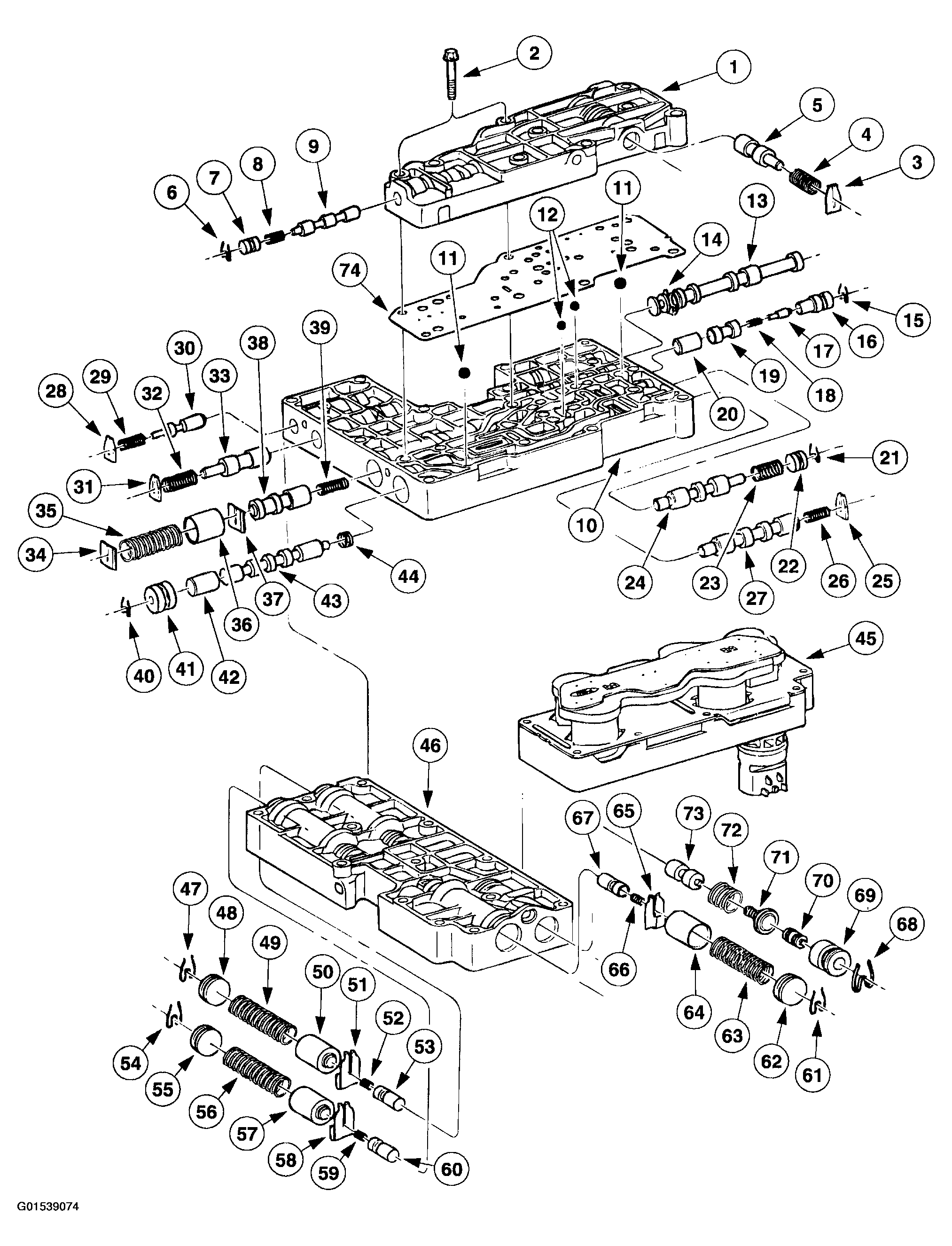

Fig 2: Disassembled View Of Upper, Lower, Accumulator And Solenoid Bodies
G01539074Courtesy of FORD MOTOR CO.

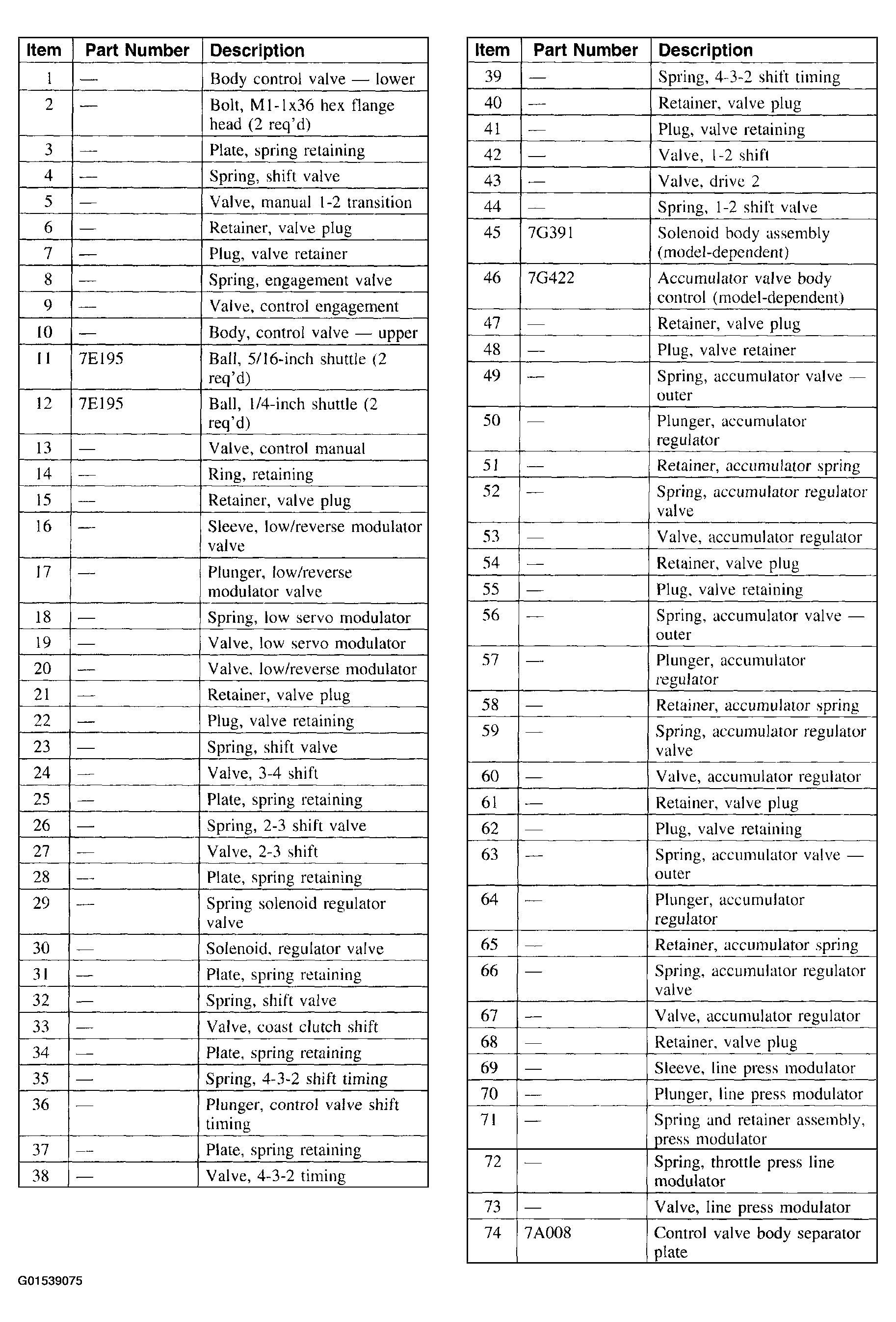

Fig 3: Parts Number Description Chart (Items 1-74)
G01539075Courtesy of FORD MOTOR CO.
