Intermediate/Overdrive Cylinder Assembly: Notes

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

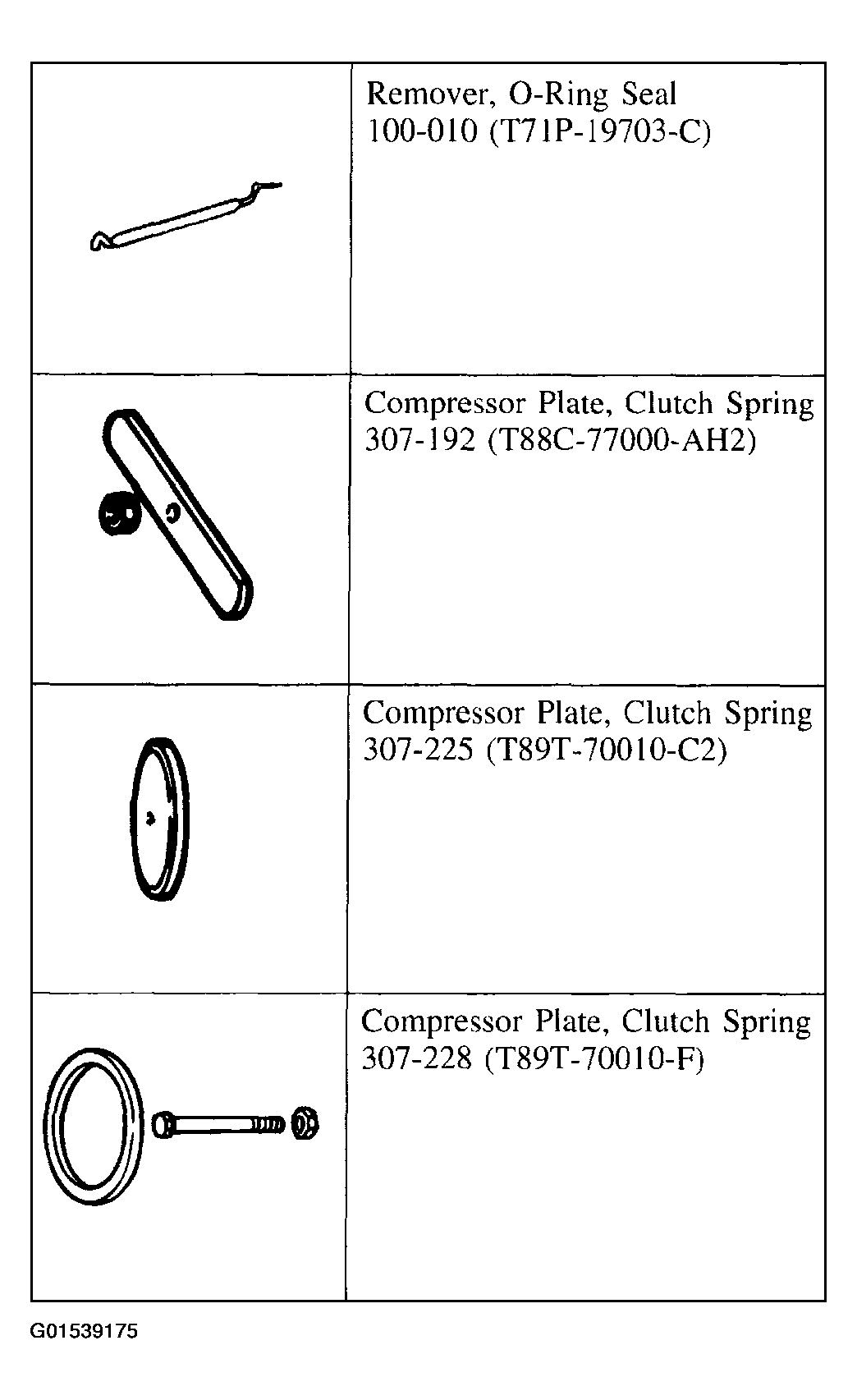

SPECIAL TOOL(S)

Fig 1: Identifying Special Tools
G01539175Courtesy of FORD MOTOR CO.

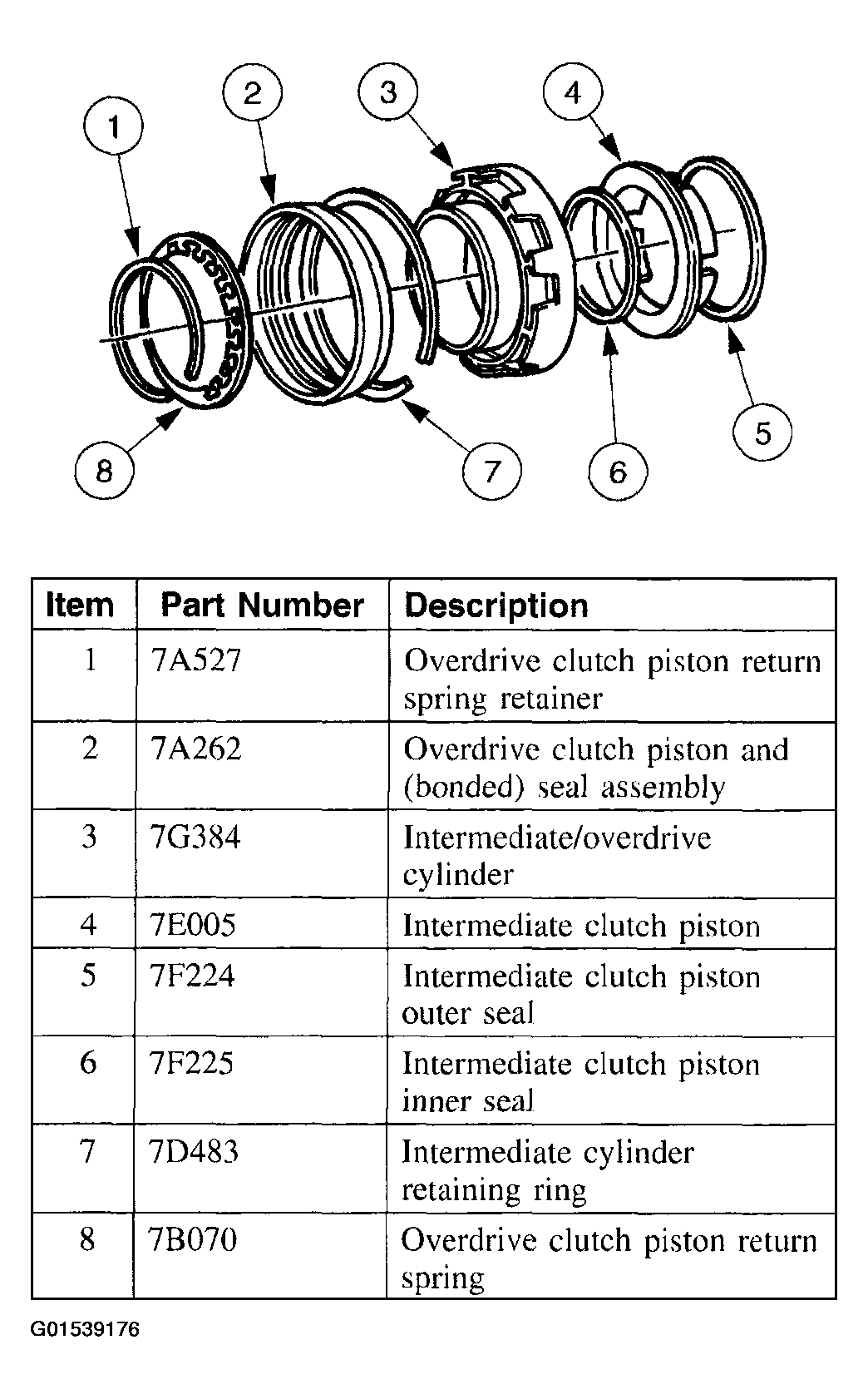

INTERMEDIATE/OVERDRIVE CYLINDER ASSEMBLY, DISASSEMBLED VIEW

Fig 2: Disassembled View Of Intermediate/Overdrive Cylinder Assembly
G01539176Courtesy of FORD MOTOR CO.
