Input Shell: Disassembly

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove and discard the forward/reverse sun gear retaining ring.
    Fig 1: Removing Forward/Reverse Sun Gear Retaining Ring
    G01539261Courtesy of FORD MOTOR CO.
  2. Remove the No. 14 input shell thrust washer.
    Fig 2: Removing No. 14 Input Shell Thrust Washer
    G01539262Courtesy of FORD MOTOR CO.
  3. Remove the forward/reverse sun gear.

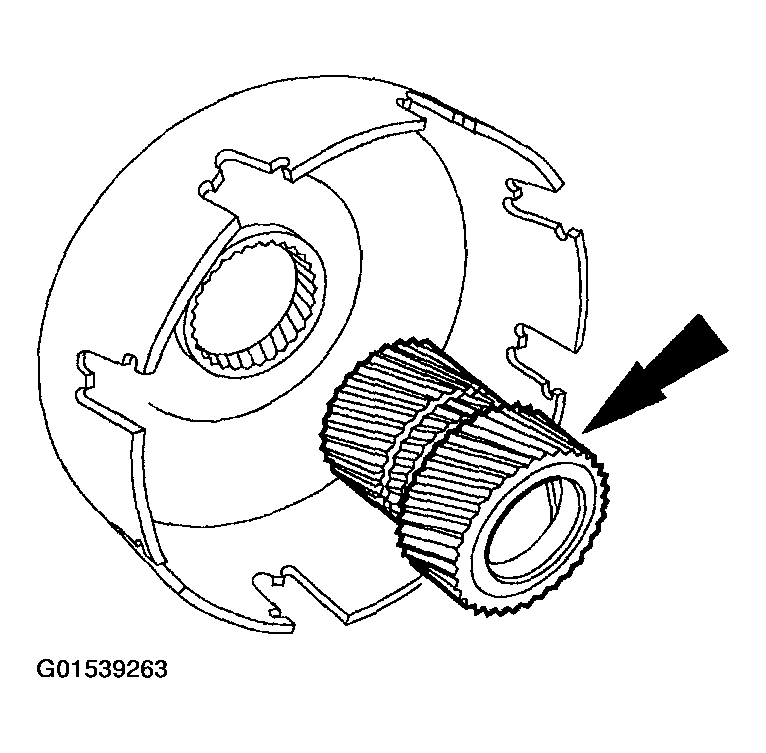

    Fig 3: Removing Forward/Reverse Sun Gear
    G01539263Courtesy of FORD MOTOR CO.
