Forward Planet Assembly: Disassembly

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Individual parts of the planet assemblies are not repairable.
  1. Remove the No. 9B forward clutch thrust bearing.

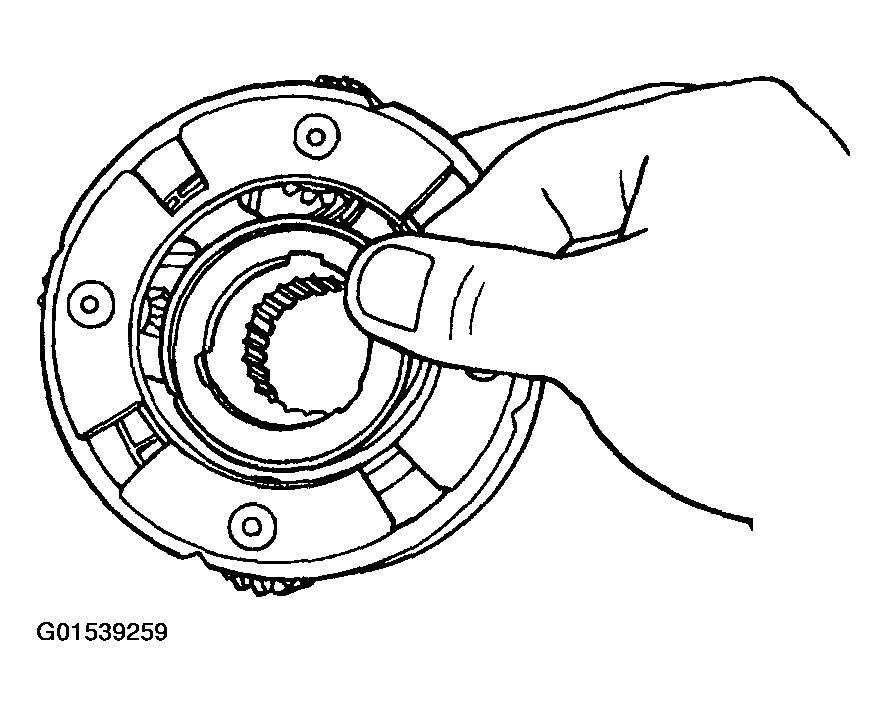

    Fig 1: Removing No. 9B Forward Clutch Thrust Bearing
    G01539259Courtesy of FORD MOTOR CO.
  2. Remove the No. 10A forward planet assembly thrust bearing.
    • The pins and shafts in the plant assemblies should be checked for loose fit/damage. Use a new planet assembly if either condition exist.
    • Inspect the pinion gears for damaged or excessively worn teeth.
    • Check for free rotation of the pinion gears.
    • Check for damage in the overdrive planet assembly.

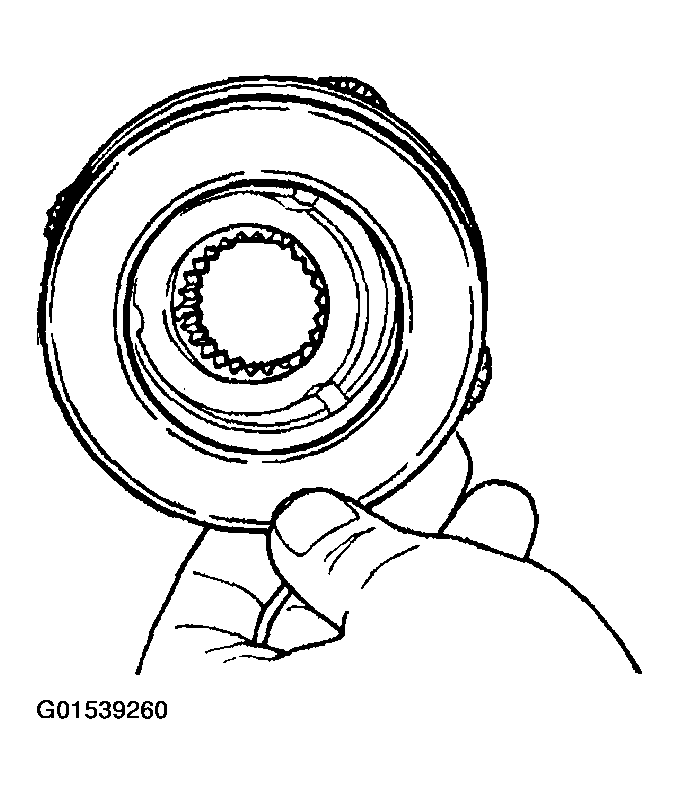

    Fig 2: Removing No. 10A Forward Planet Assembly Thrust Bearing
    G01539260Courtesy of FORD MOTOR CO.
