Forward Hub And Ring Gear: Disassembly

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the No. 8C forward clutch hub thrust washer.

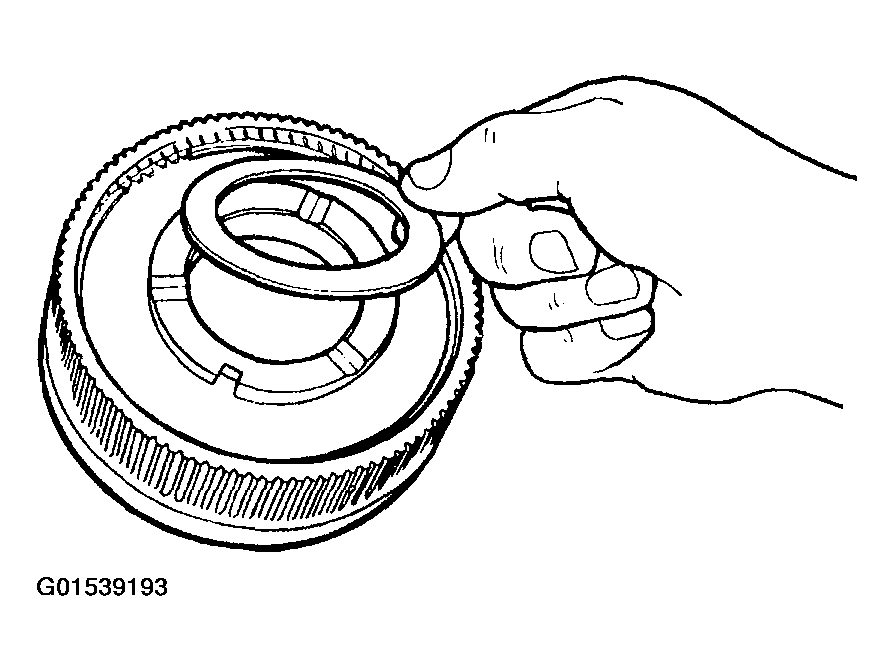

    Fig 1: Removing No. 8C Forward Clutch Hub Thrust Washer
    G01539193Courtesy of FORD MOTOR CO.
  2. Remove the forward hub retaining ring.

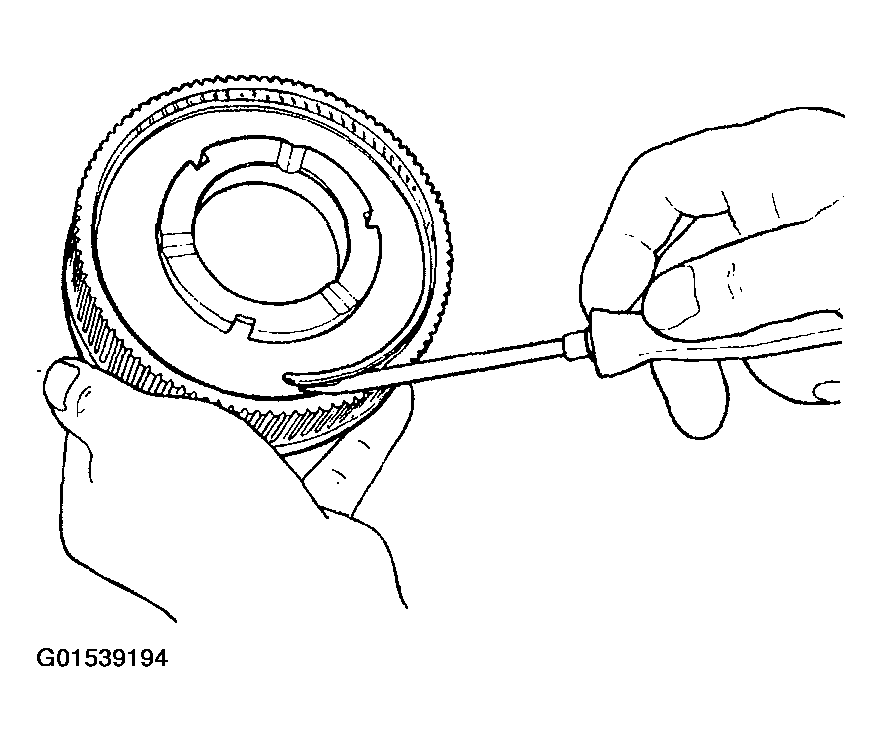

    Fig 2: Removing Forward Hub Retaining Ring
    G01539194Courtesy of FORD MOTOR CO.
  3. Remove the forward hub.

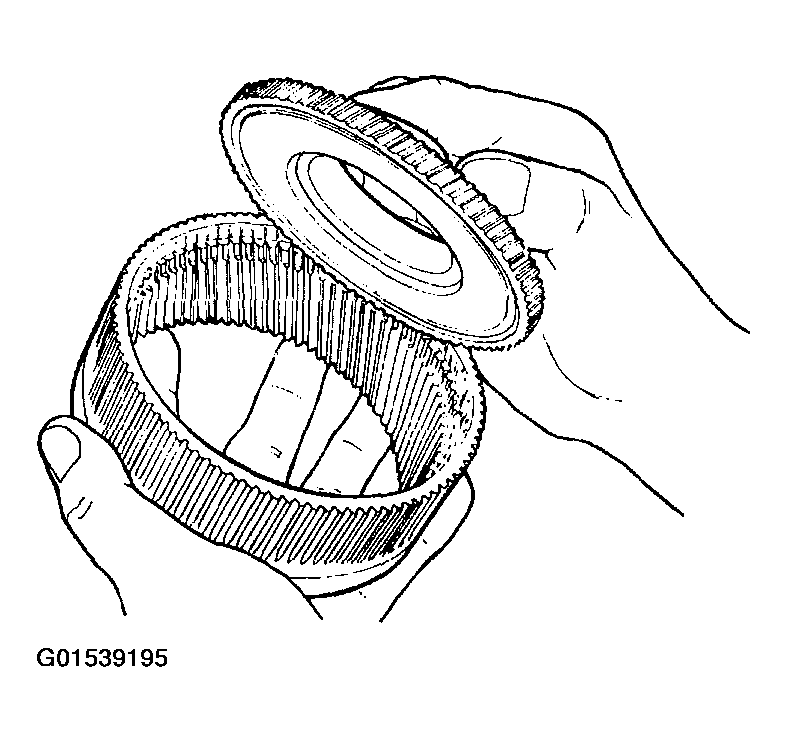

    Fig 3: Removing Forward Hub
    G01539195Courtesy of FORD MOTOR CO.
