Forward Clutch Assembly: Notes

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL(S)

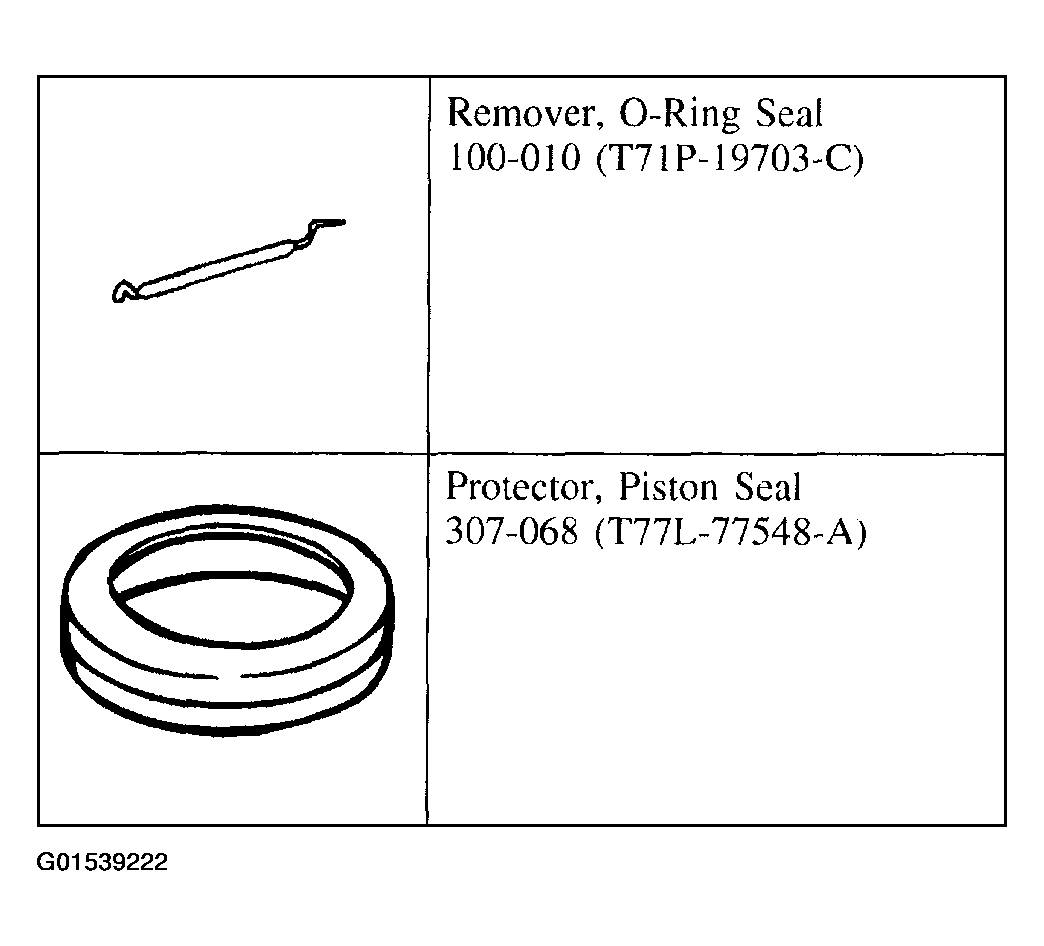

Fig 1: Identifying Special Tools
G01539222Courtesy of FORD MOTOR CO.

MATERIAL

Fig 2: Material Specifications
G01539223Courtesy of FORD MOTOR CO.

FORWARD CLUTCH ASSEMBLY, DISASSEMBLED VIEW

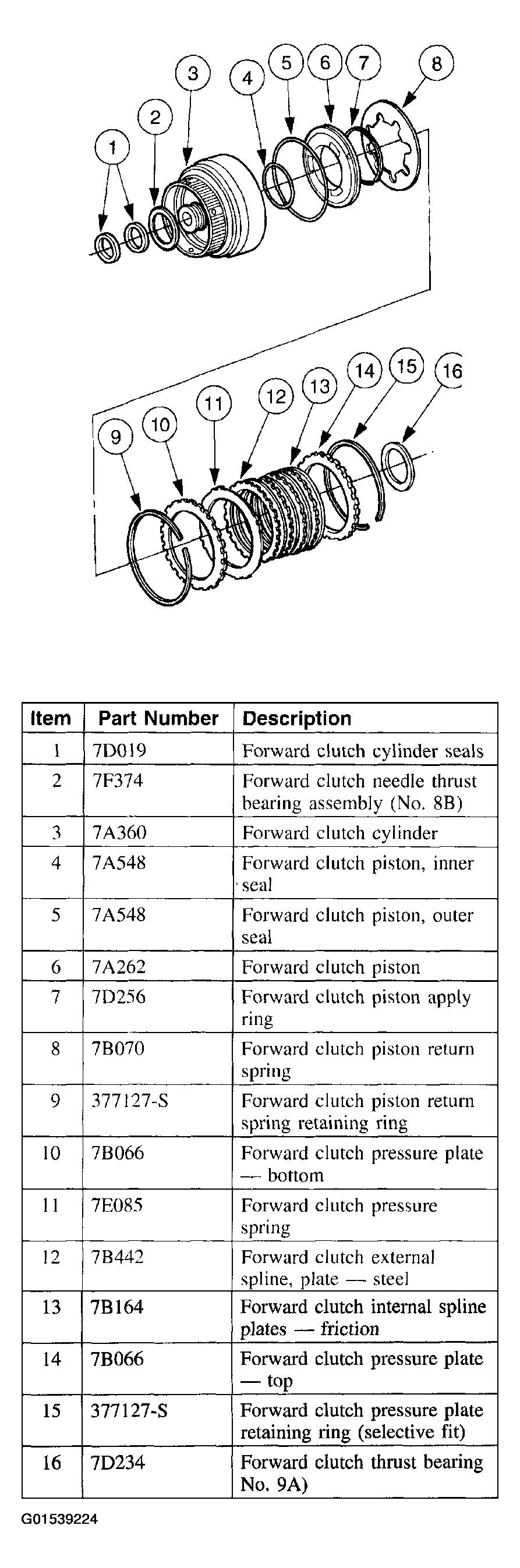

Fig 3: Disassembled View Of Forward Clutch Assembly
G01539224Courtesy of FORD MOTOR CO.
