Direct Clutch Assembly And Intermediate Brake Drum: Notes

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

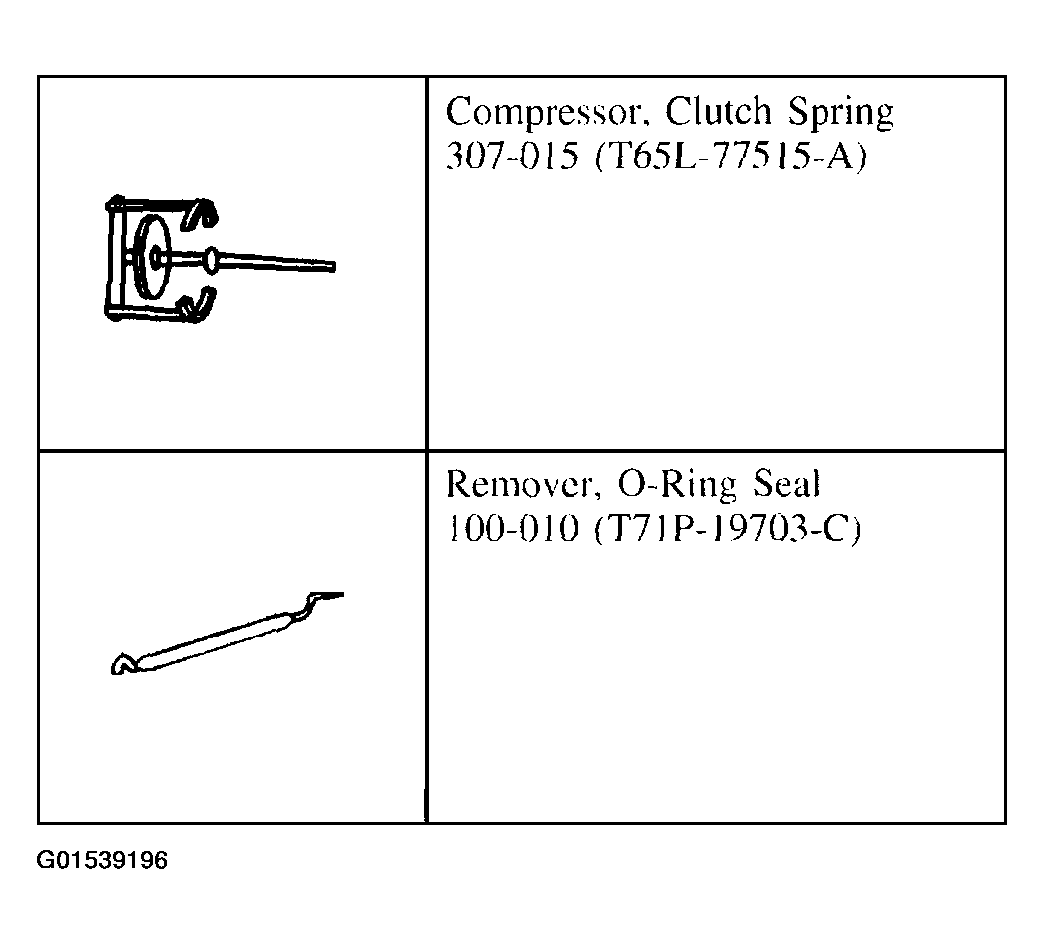

SPECIAL TOOL(S)

Fig 1: Identifying Special Tools
G01539196Courtesy of FORD MOTOR CO.

MATERIAL

Fig 2: Material Specifications
G01539197Courtesy of FORD MOTOR CO.

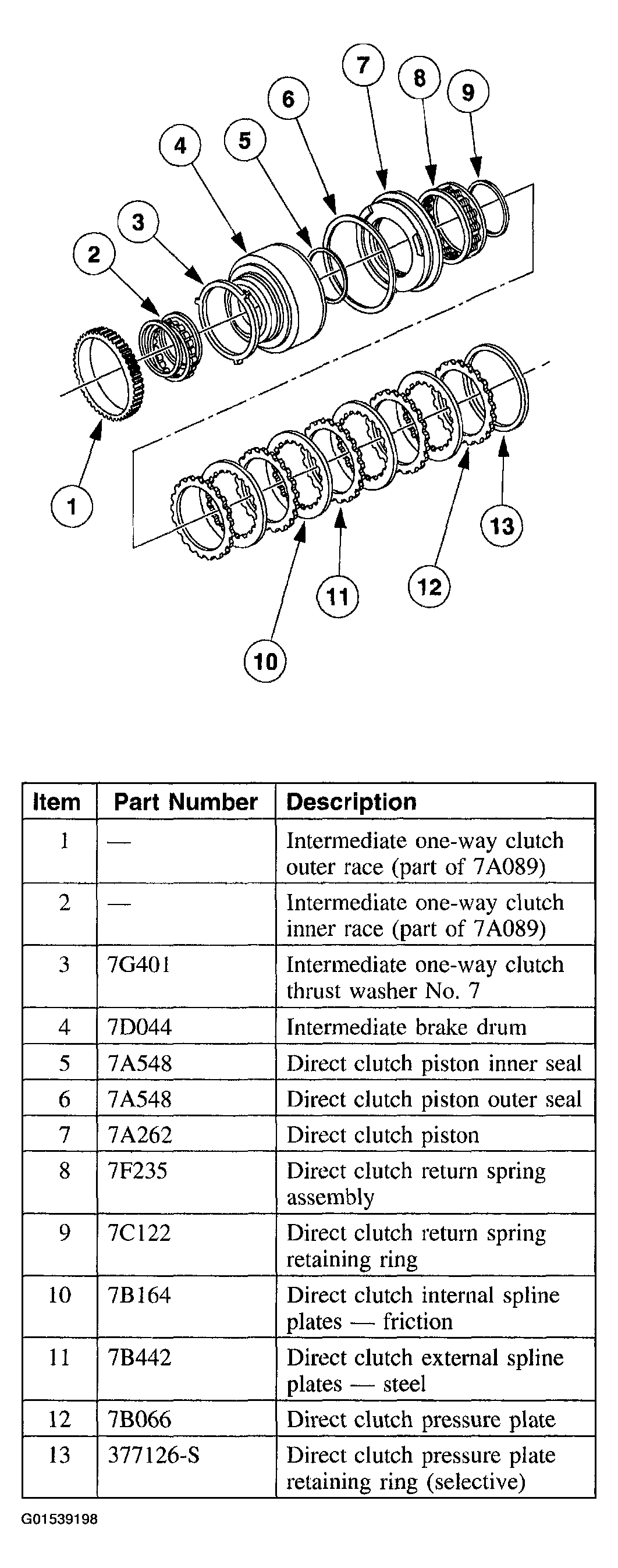

DIRECT CLUTCH ASSEMBLY AND INTERMEDIATE BRAKE DRUM, DISASSEMBLED VIEW

Fig 3: Disassembled View of Direct Clutch Assembly and Intermediate Brake Drum
G01539198Courtesy of FORD MOTOR CO.
