Shift Speeds - Km/h (MPH) (E-Super Duty, E-350, E-450 with 5.4L) (Over 8500 GVW Rating)

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

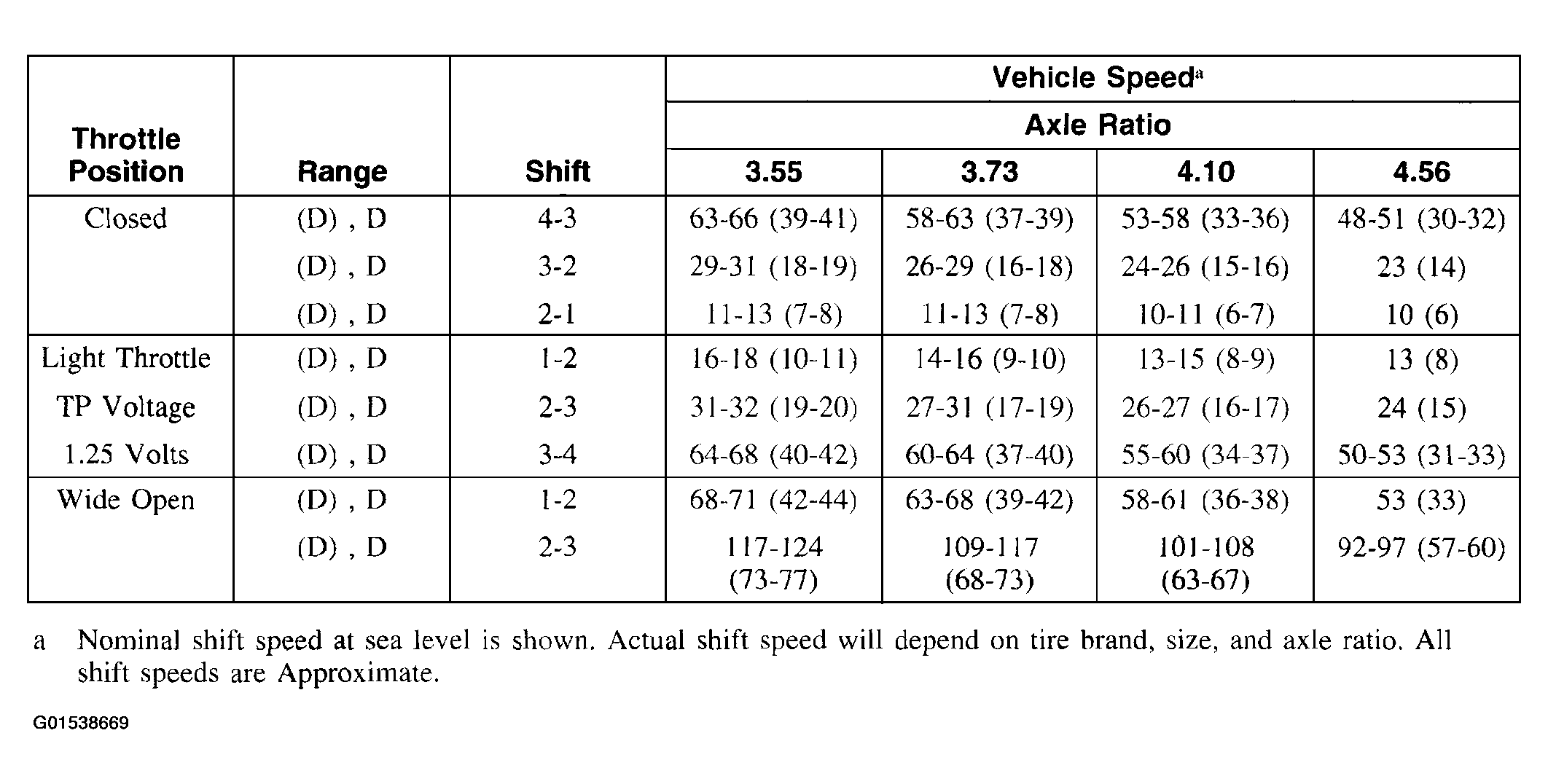

Fig 1: Shift Speeds Specifications - Km/h (MPH) (E-Super Duty, E-350, E-450 with 5.4L) (Over 8500 GVW Rating) (1 Of 2)
G01538669Courtesy of FORD MOTOR CO.

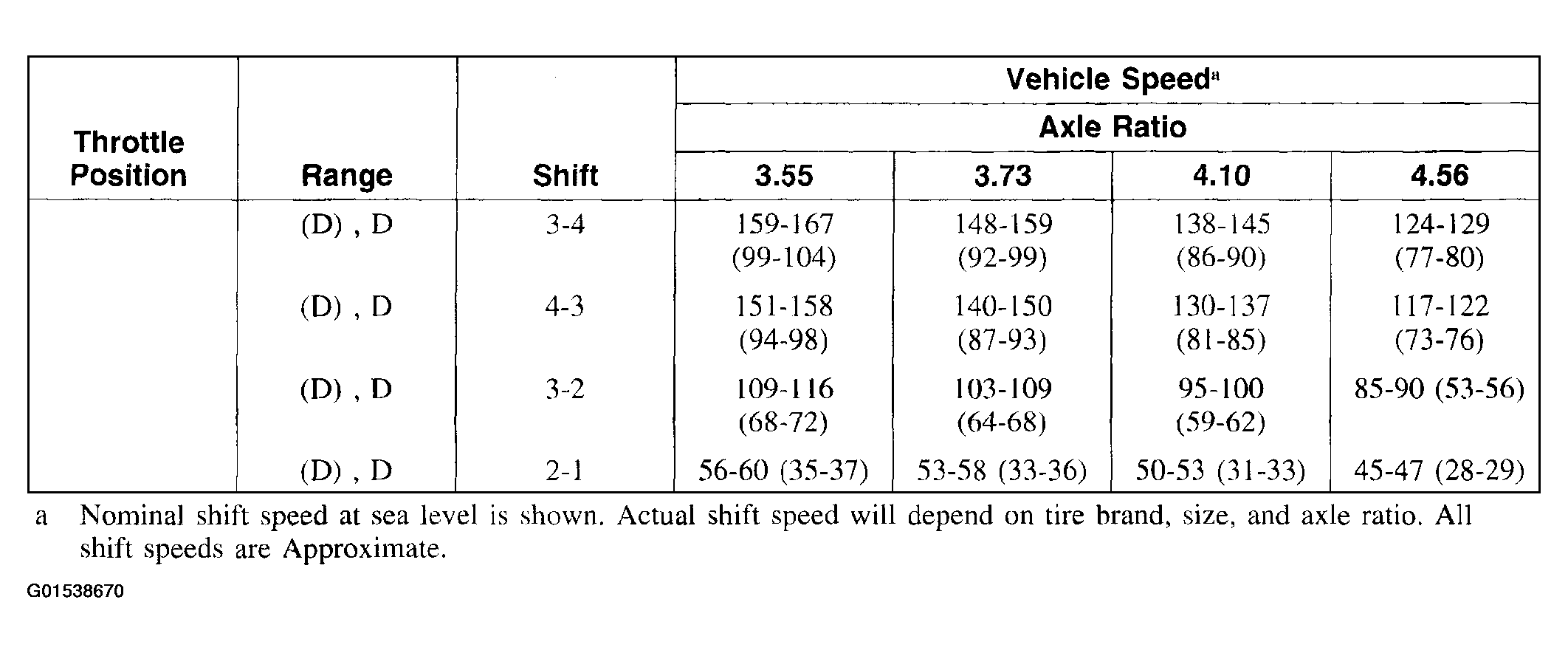

Fig 2: Shift Speeds Specifications - Km/h (MPH) (E-Super Duty, E-350, E-450 with 5.4L) (Over 8500 GVW Rating) (2 Of 2)
G01538670Courtesy of FORD MOTOR CO.
