Pinpoint Test G: Coast Clutch Solenoid (CCS)

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Repair all other DTCs before repairing the following DTCs: P1714, P1715, P1740

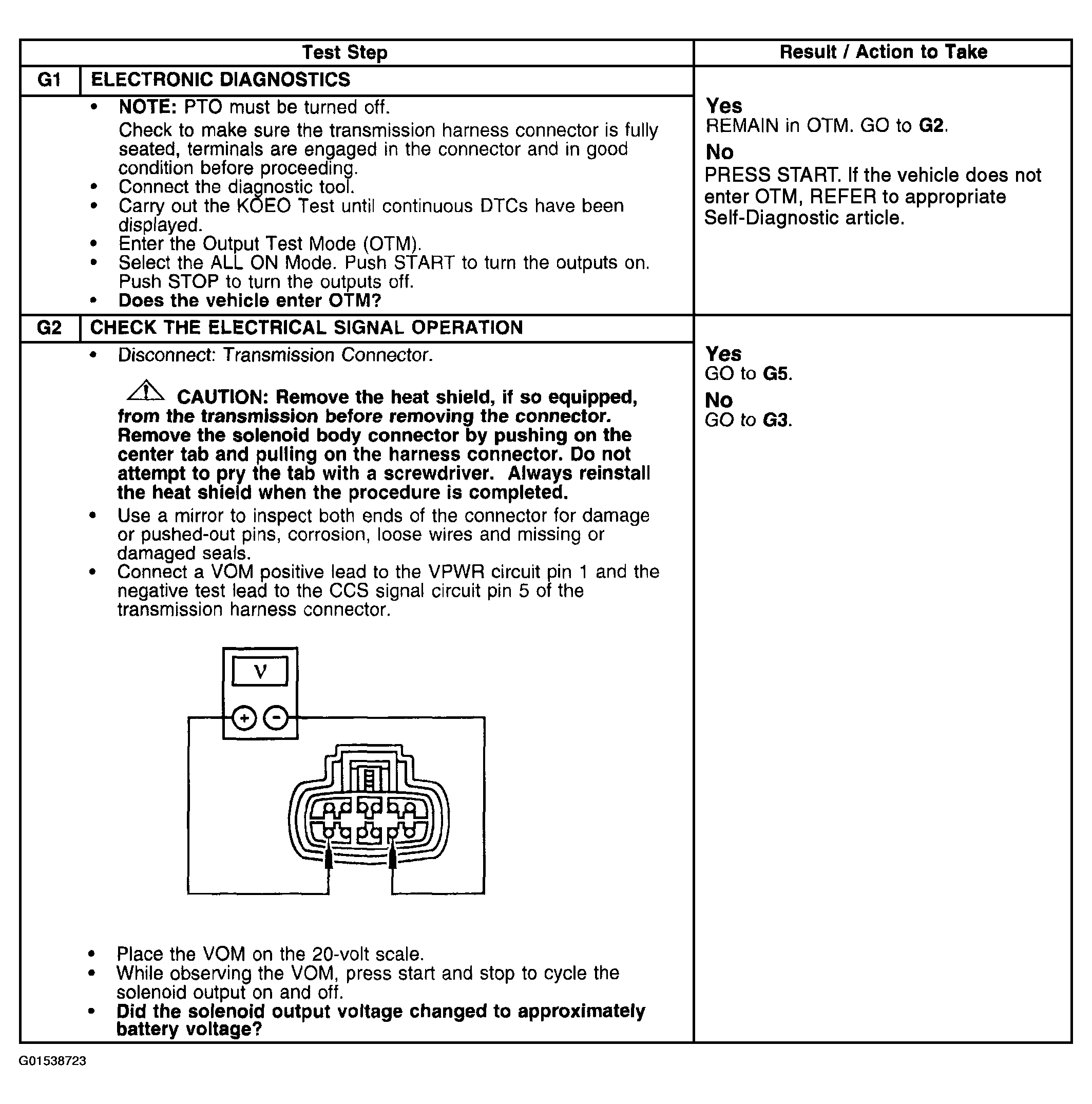

Fig 1: Pinpoint Test G: Coast Clutch Solenoid (Step G1-G2)

Courtesy of FORD MOTOR CO.

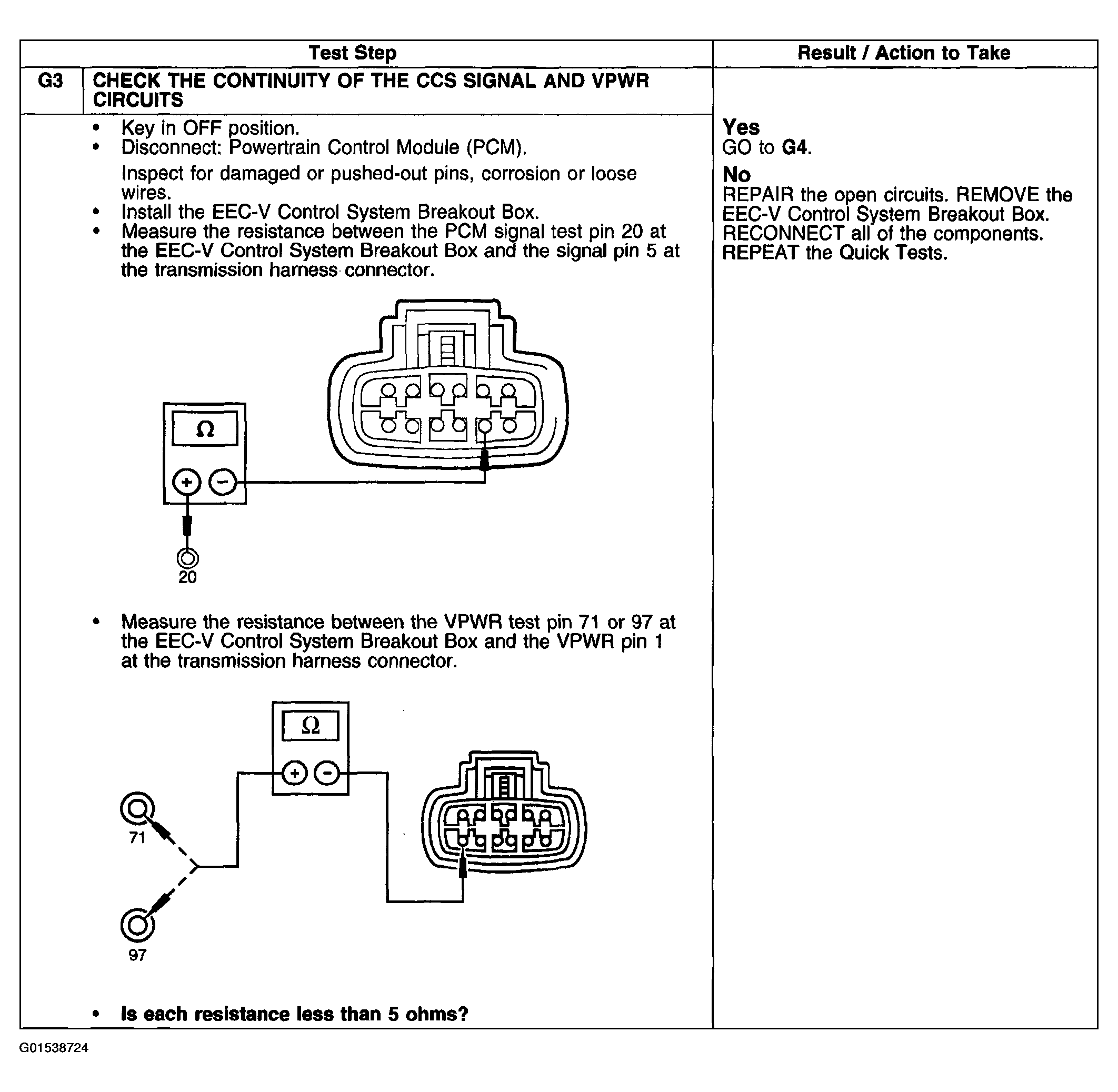

Fig 2: Pinpoint Test G: Coast Clutch Solenoid (Step G3)

Courtesy of FORD MOTOR CO.

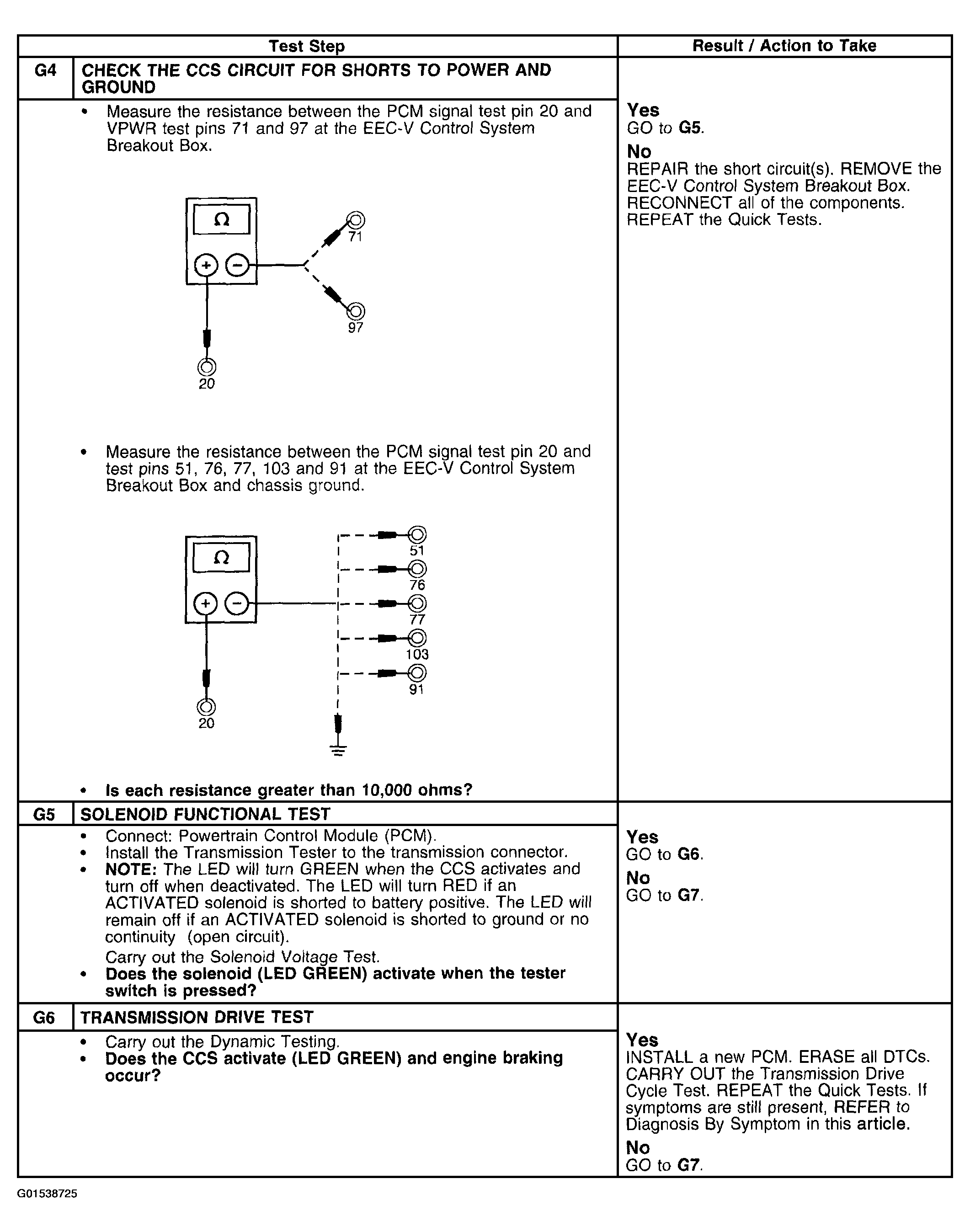

Fig 3: Pinpoint Test G: Coast Clutch Solenoid (Step G4-G6)

Courtesy of FORD MOTOR CO.

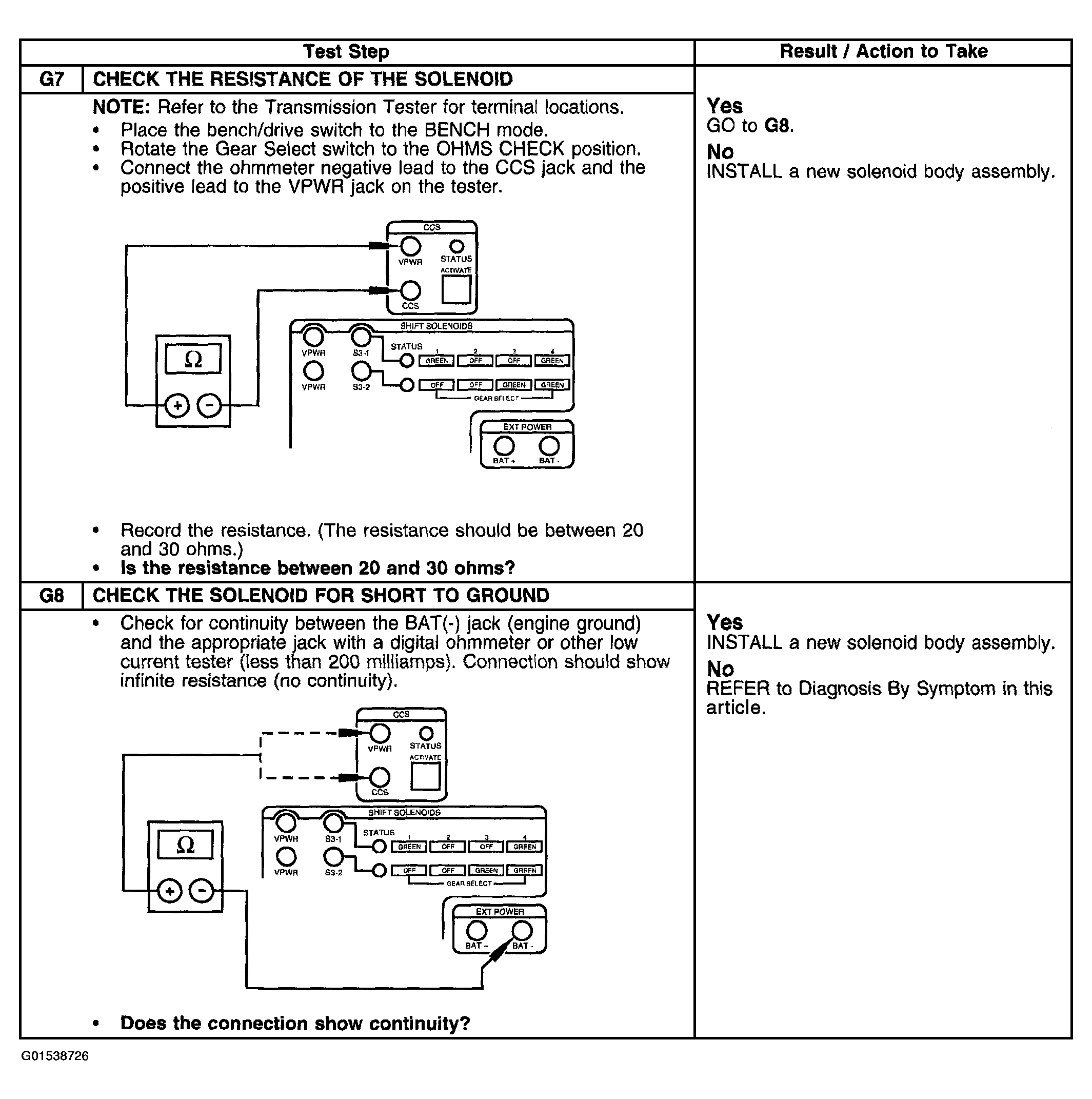

Fig 4: Pinpoint Test G: Coast Clutch Solenoid (Step G7-G8)

Courtesy of FORD MOTOR CO.
