Pinpoint Test F: Turbine Shaft Speed (TSS) & Output Shaft Speed (OSS) Sensors

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to the TRANSMISSION VEHICLE HARNESS CONNECTOR illustration preceding these pinpoint tests.

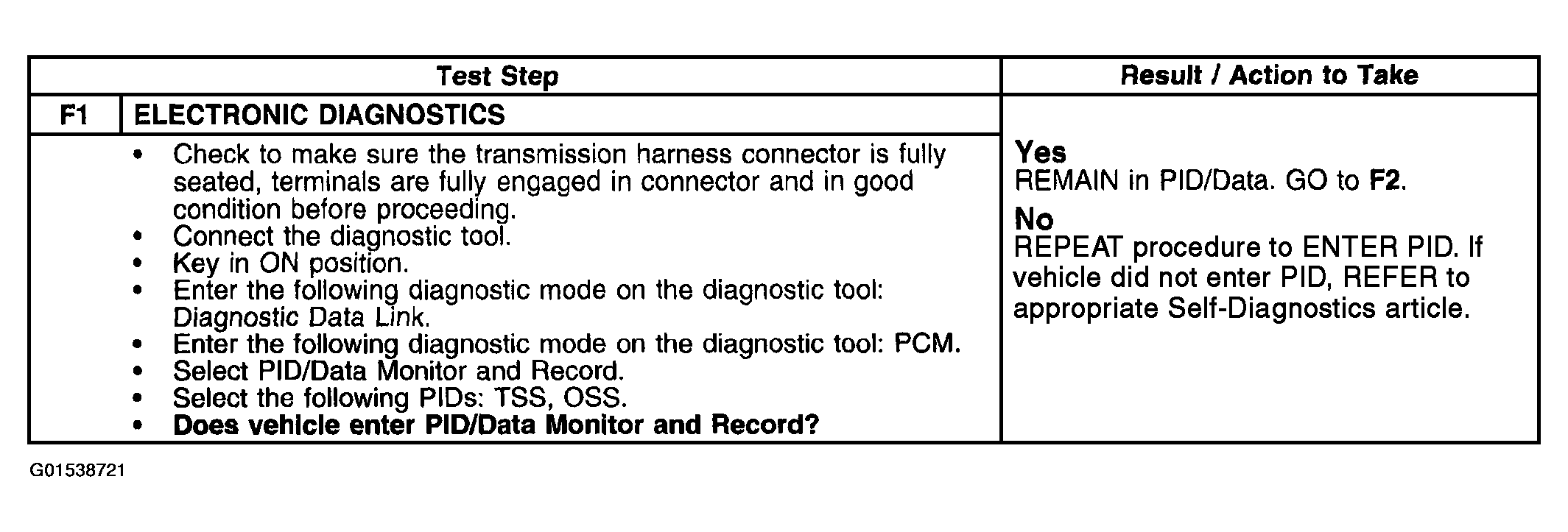

Fig 1: Pinpoint Test F: Turbine Shaft Speed And Output Shaft Speed Sensors (Step F1)

Courtesy of FORD MOTOR CO.

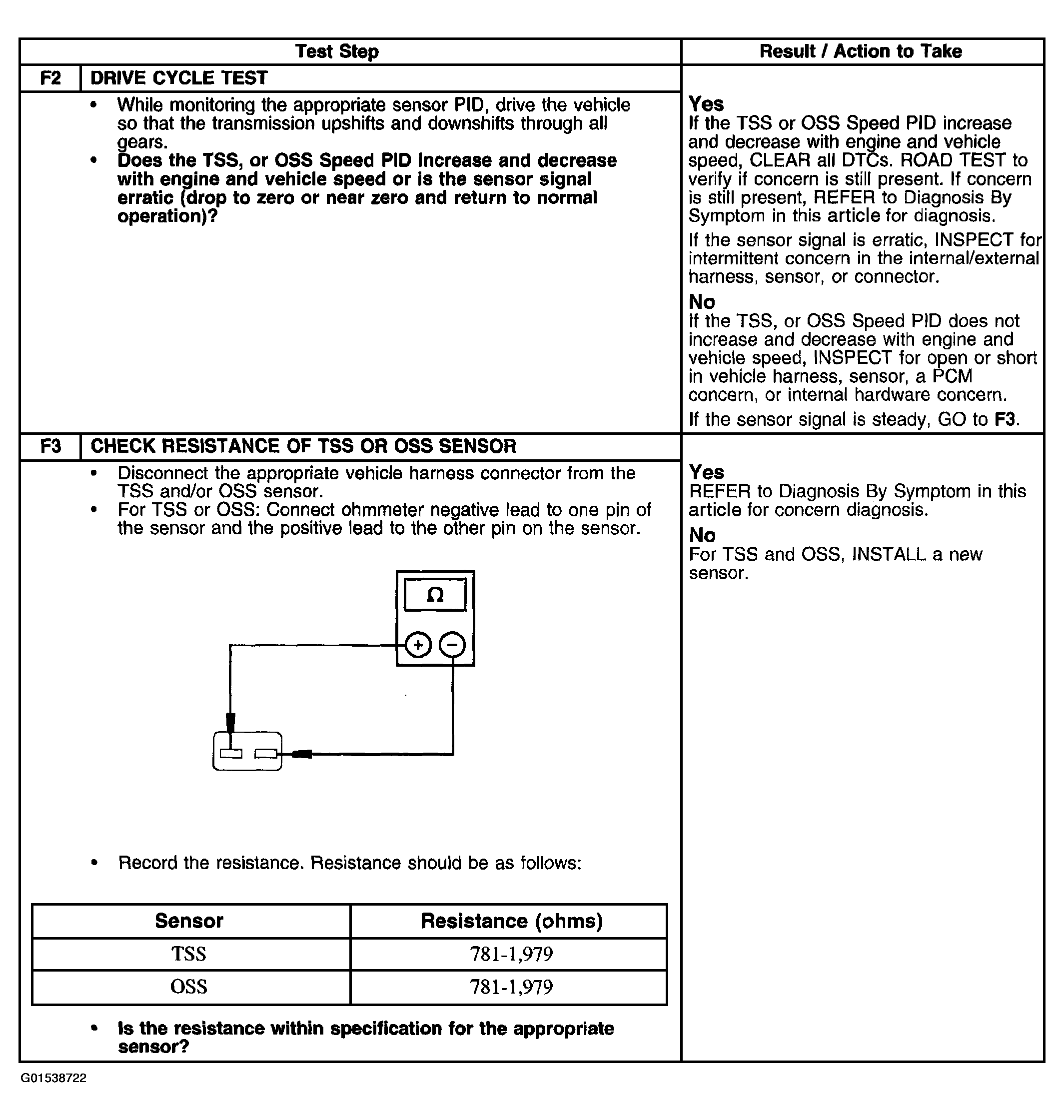

Fig 2: Pinpoint Test F: Turbine Shaft Speed And Output Shaft Speed Sensors (Step F2-F3)

Courtesy of FORD MOTOR CO.
