Pinpoint Test D: Digital Transmission Range (TR) Sensor

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to the TRANSMISSION VEHICLE HARNESS CONNECTOR illustration preceding these pinpoint tests.

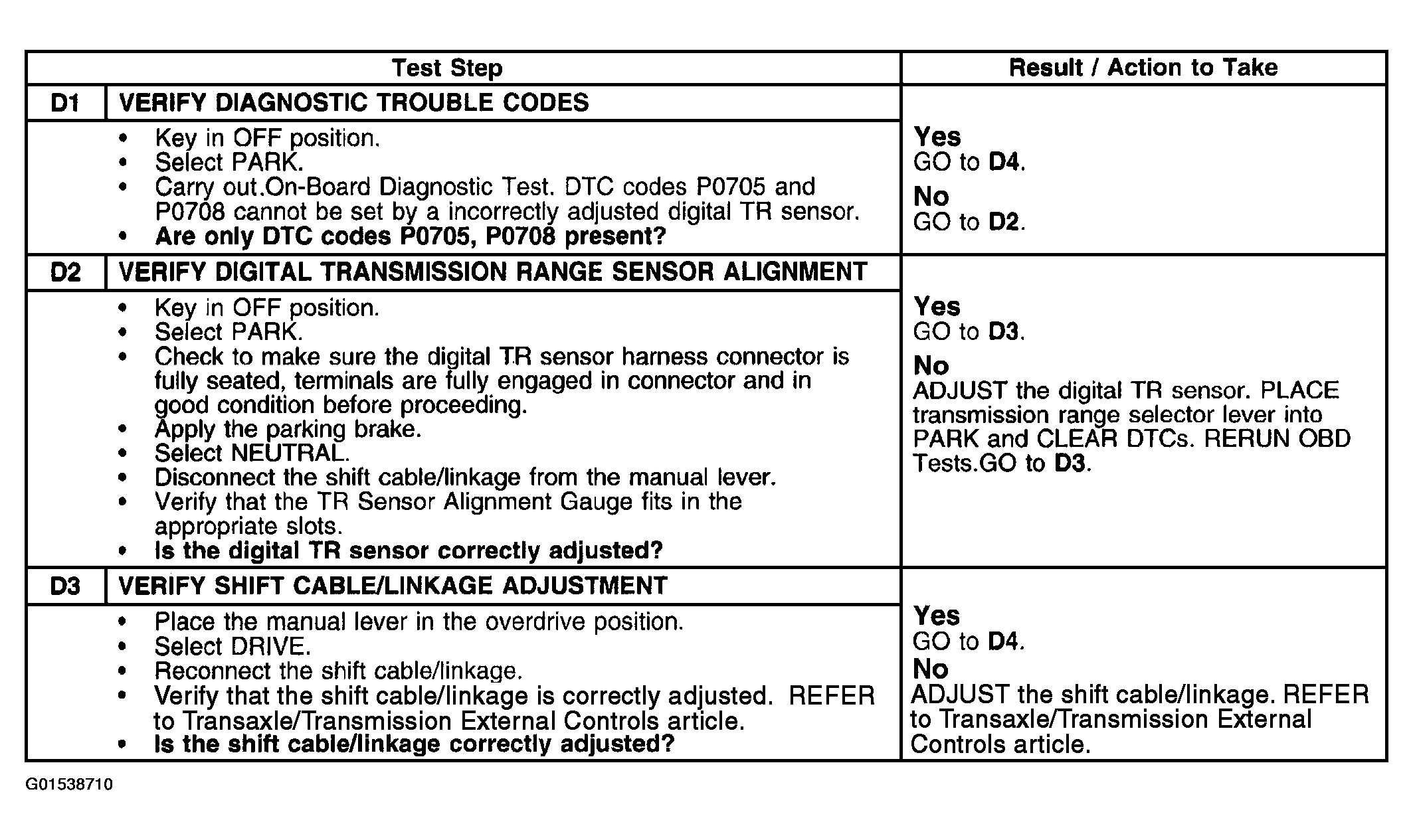

Fig 1: Pinpoint Test D: Digital Transmission Range Sensor (Step D1-D3)

Courtesy of FORD MOTOR CO.

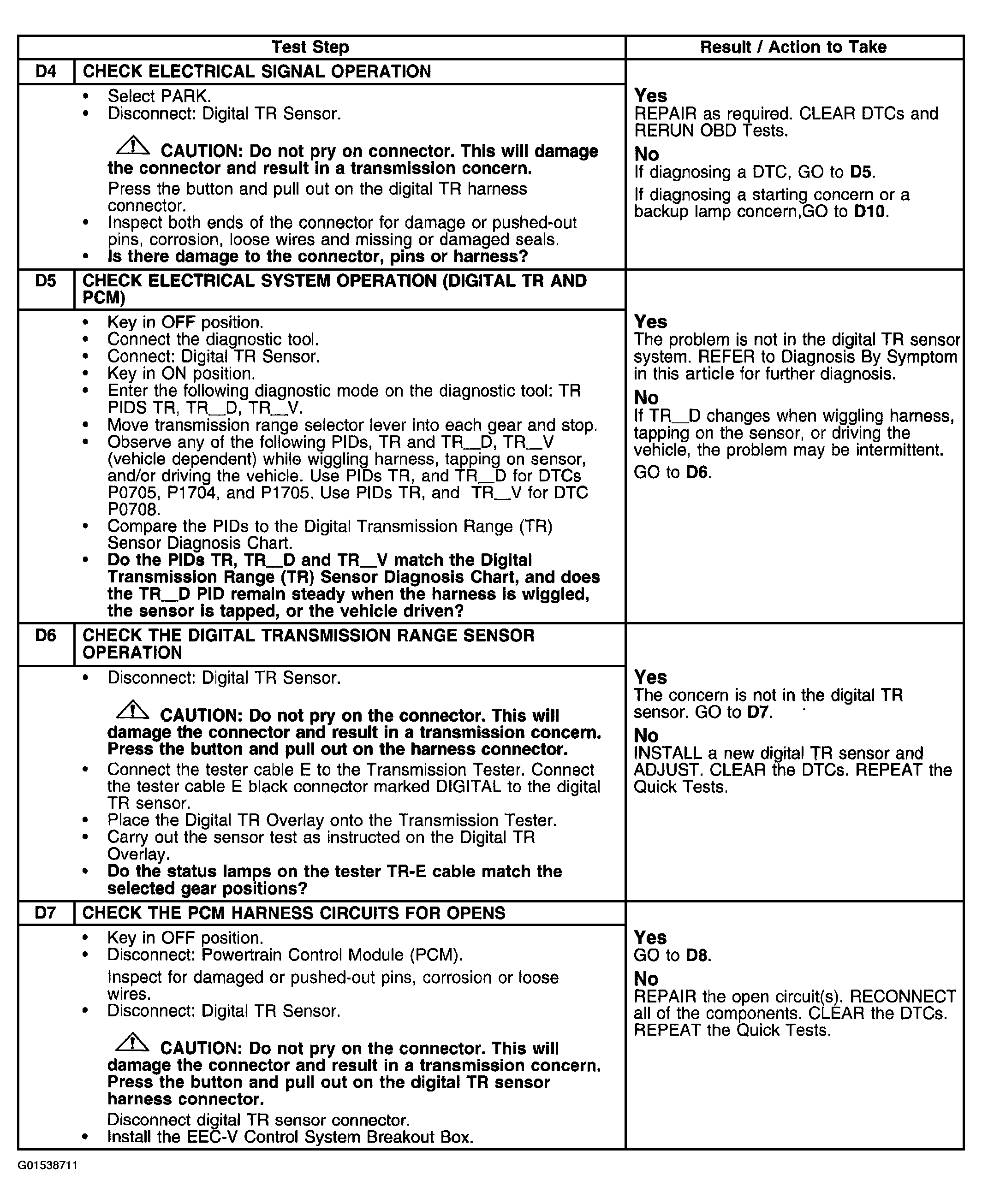

Fig 2: Pinpoint Test D: Digital Transmission Range Sensor (Step D4-D7)

Courtesy of FORD MOTOR CO.

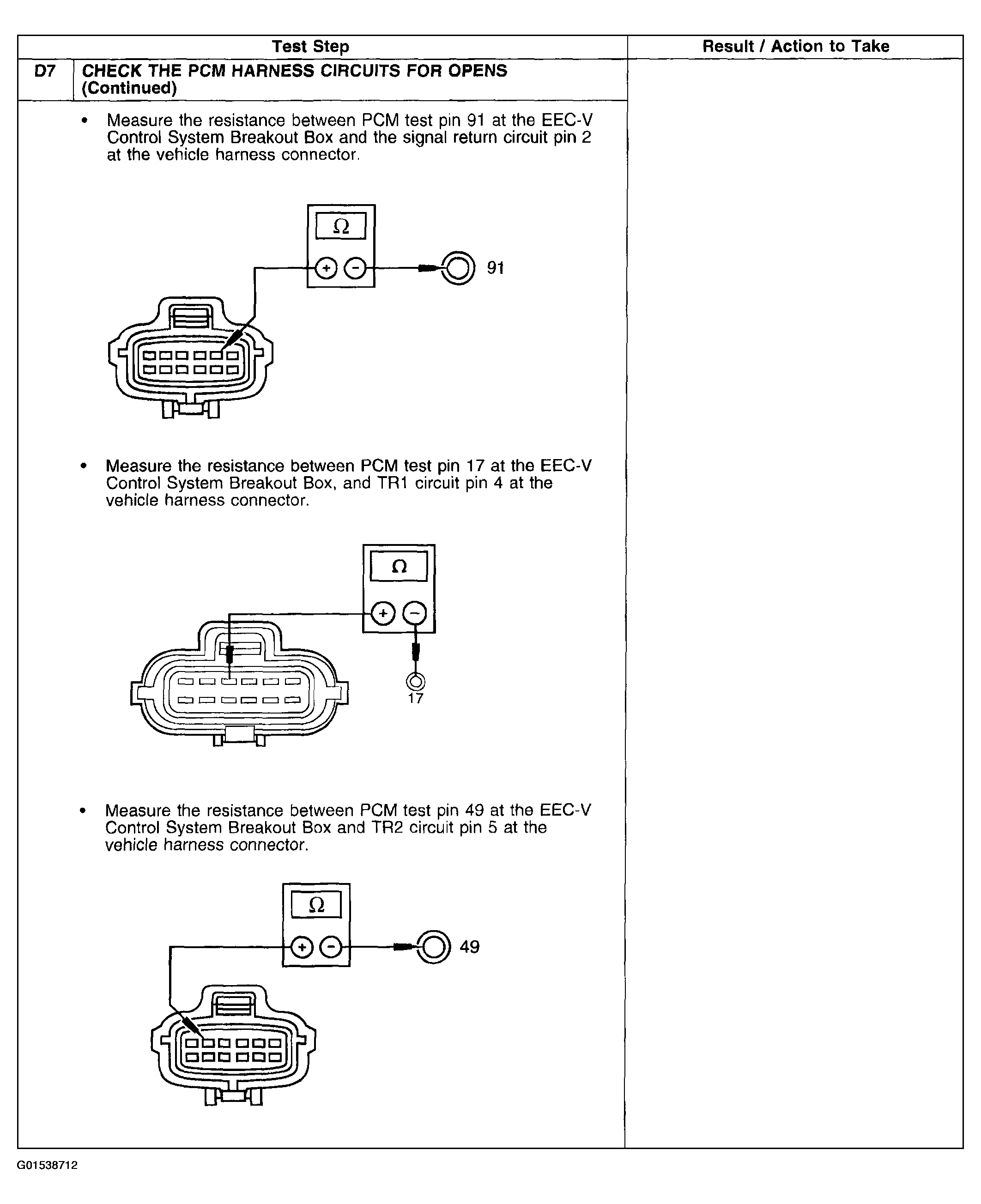

Fig 3: Pinpoint Test D: Digital Transmission Range Sensor (Step D7 Cont.)

Courtesy of FORD MOTOR CO.

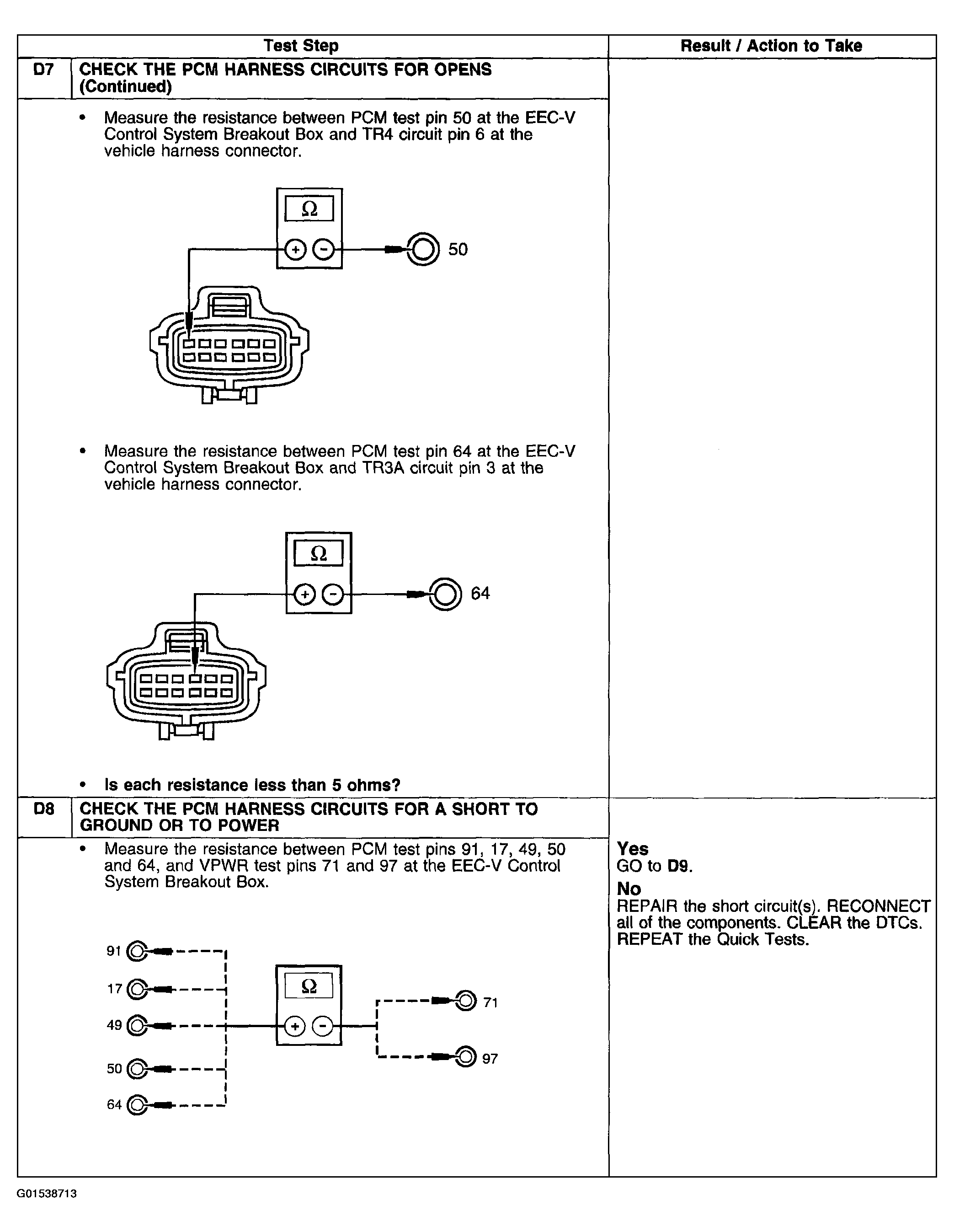

Fig 4: Pinpoint Test D: Digital Transmission Range Sensor (Step D7 Cont.-D8)

Courtesy of FORD MOTOR CO.

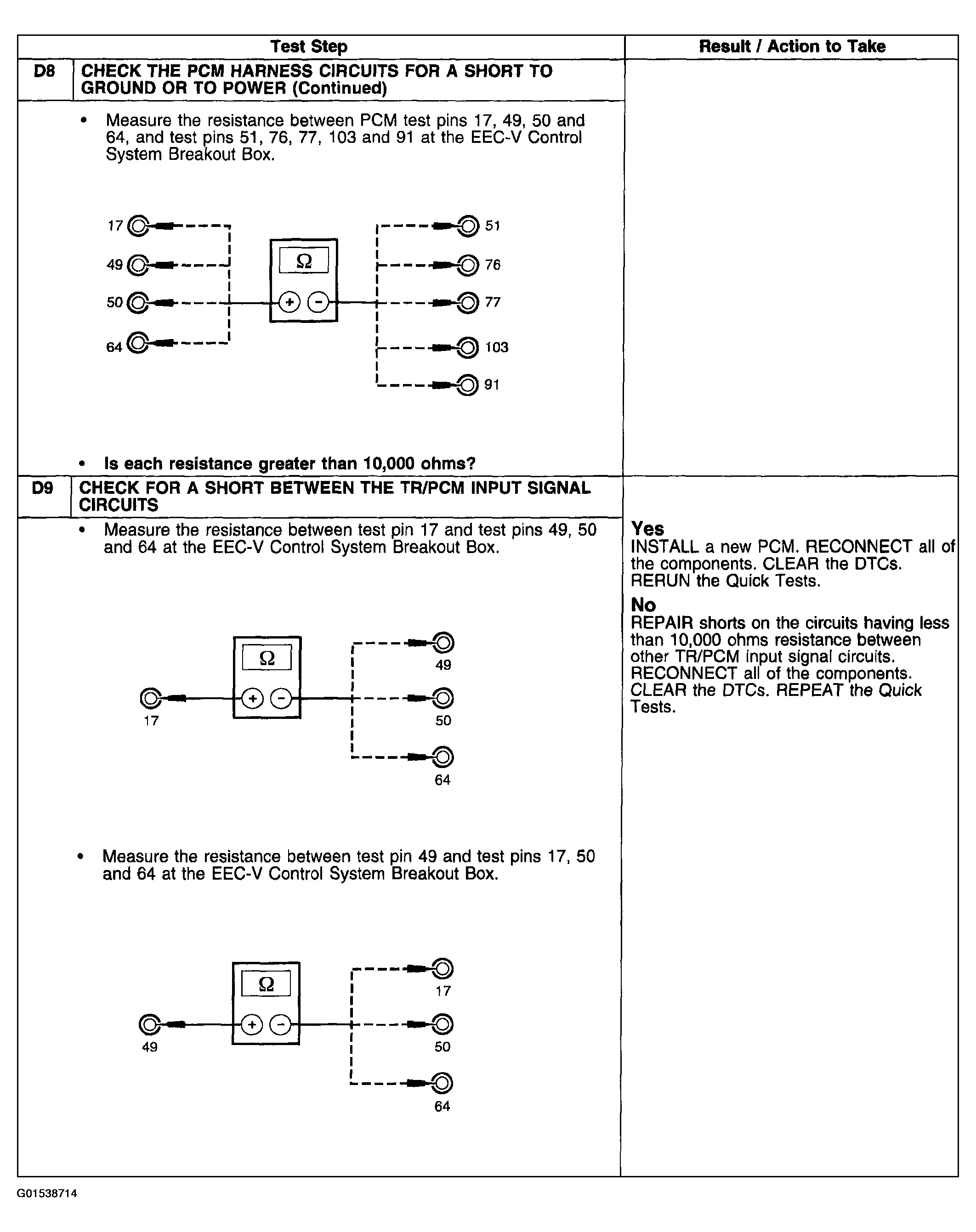

Fig 5: Pinpoint Test D: Digital Transmission Range Sensor (Step D8 Cont.-D9)

Courtesy of FORD MOTOR CO.

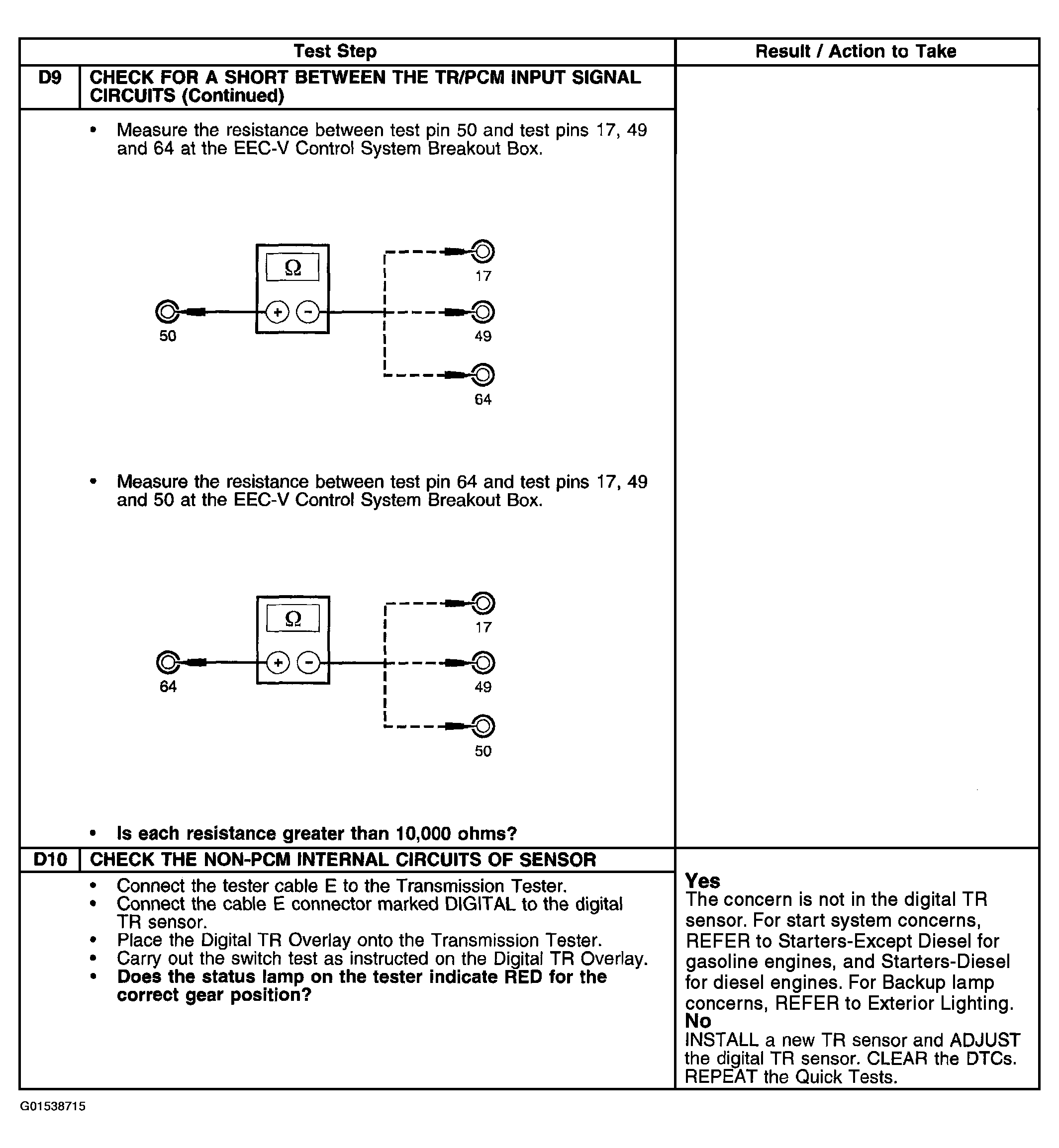

Fig 6: Pinpoint Test D: Digital Transmission Range Sensor (Step D9 Cont.-D10)

Courtesy of FORD MOTOR CO.
