Pinpoint Test C: Torque Converter Clutch (TCC) Solenoid

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to the DIGITAL TRANSMISSION RANGE (TR) SENSOR CONNECTOR illustration preceding these pinpoint tests.

NOTE: Refer to the DIGITAL TRANSMISSION RANGE (TR) SENSOR DIAGNOSIS CHART preceding these pinpoint tests.

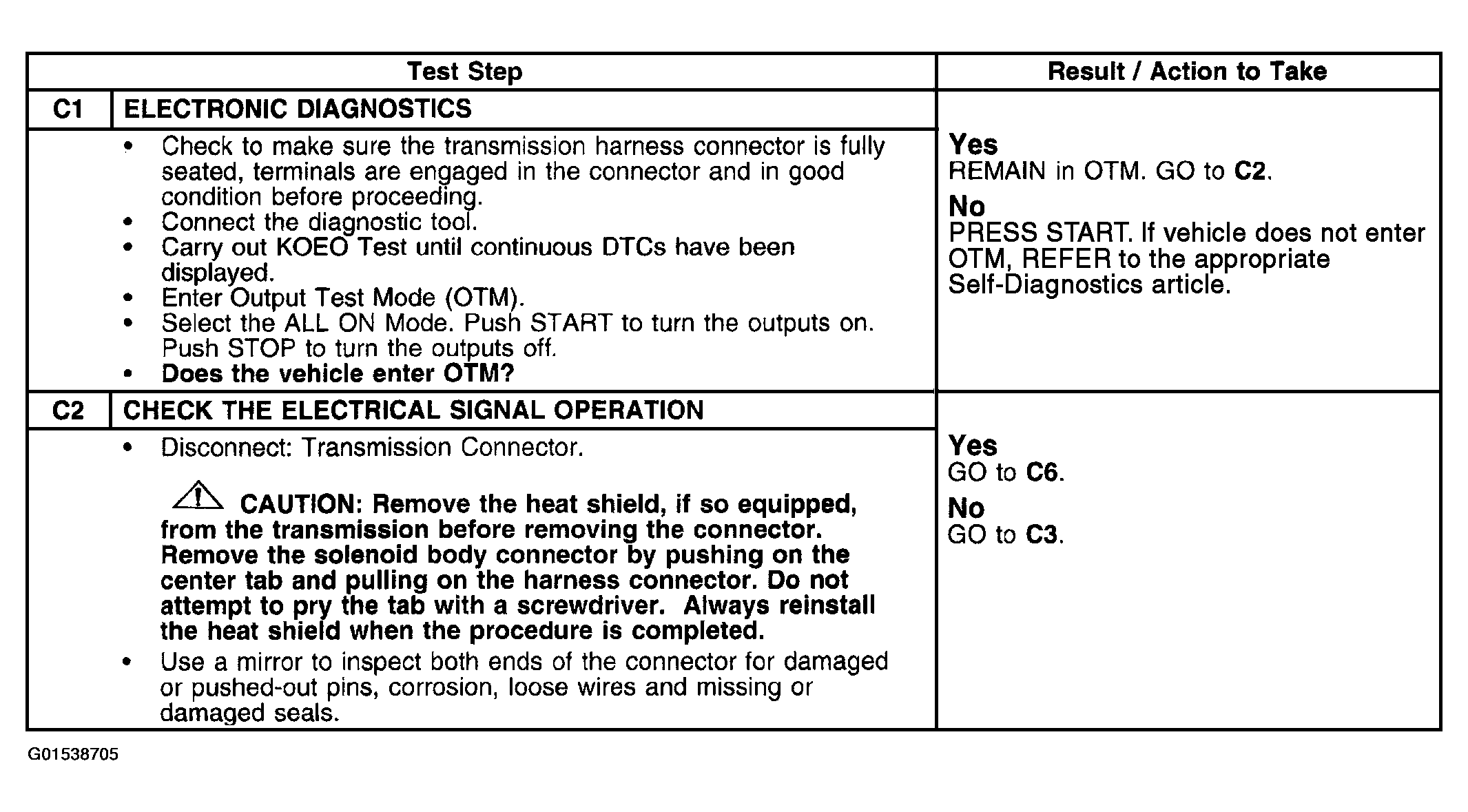

Fig 1: Pinpoint Test C: Torque Converter Clutch Solenoid (Step C1-C2)

Courtesy of FORD MOTOR CO.

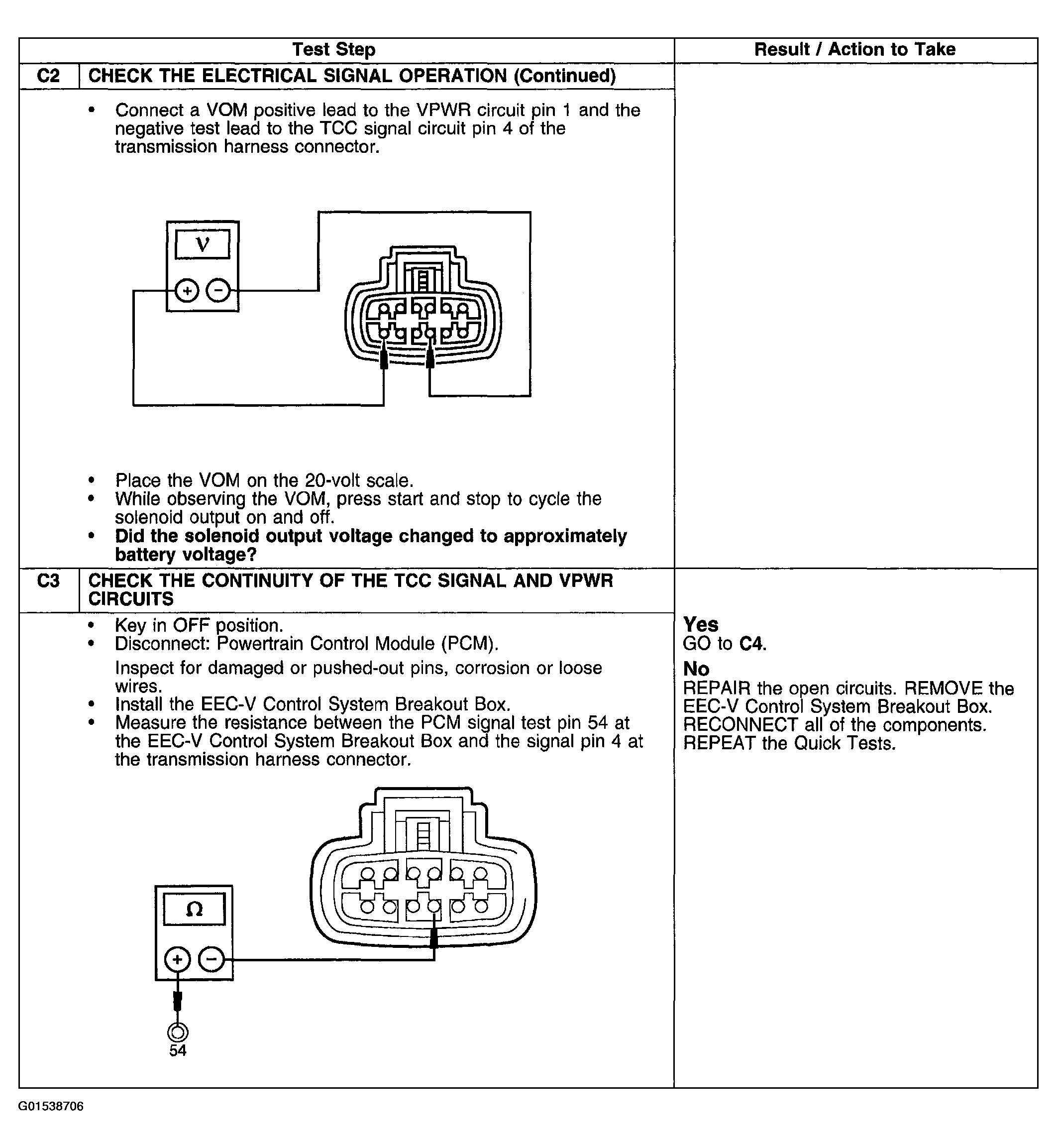

Fig 2: Pinpoint Test C: Torque Converter Clutch Solenoid (Step C2 Cont.-C3)

Courtesy of FORD MOTOR CO.

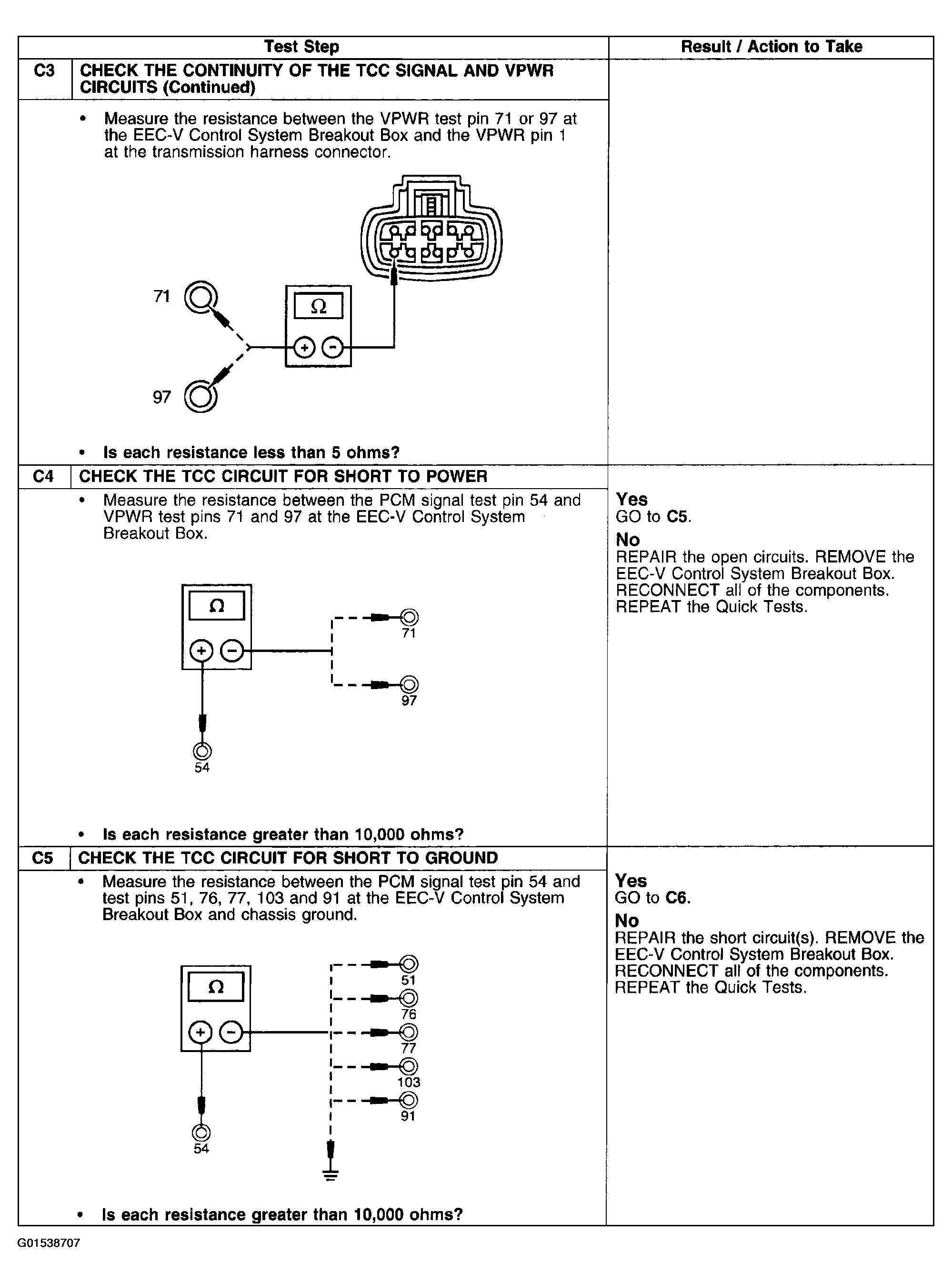

Fig 3: Pinpoint Test C: Torque Converter Clutch Solenoid (Step C3 Cont.-C5)

Courtesy of FORD MOTOR CO.

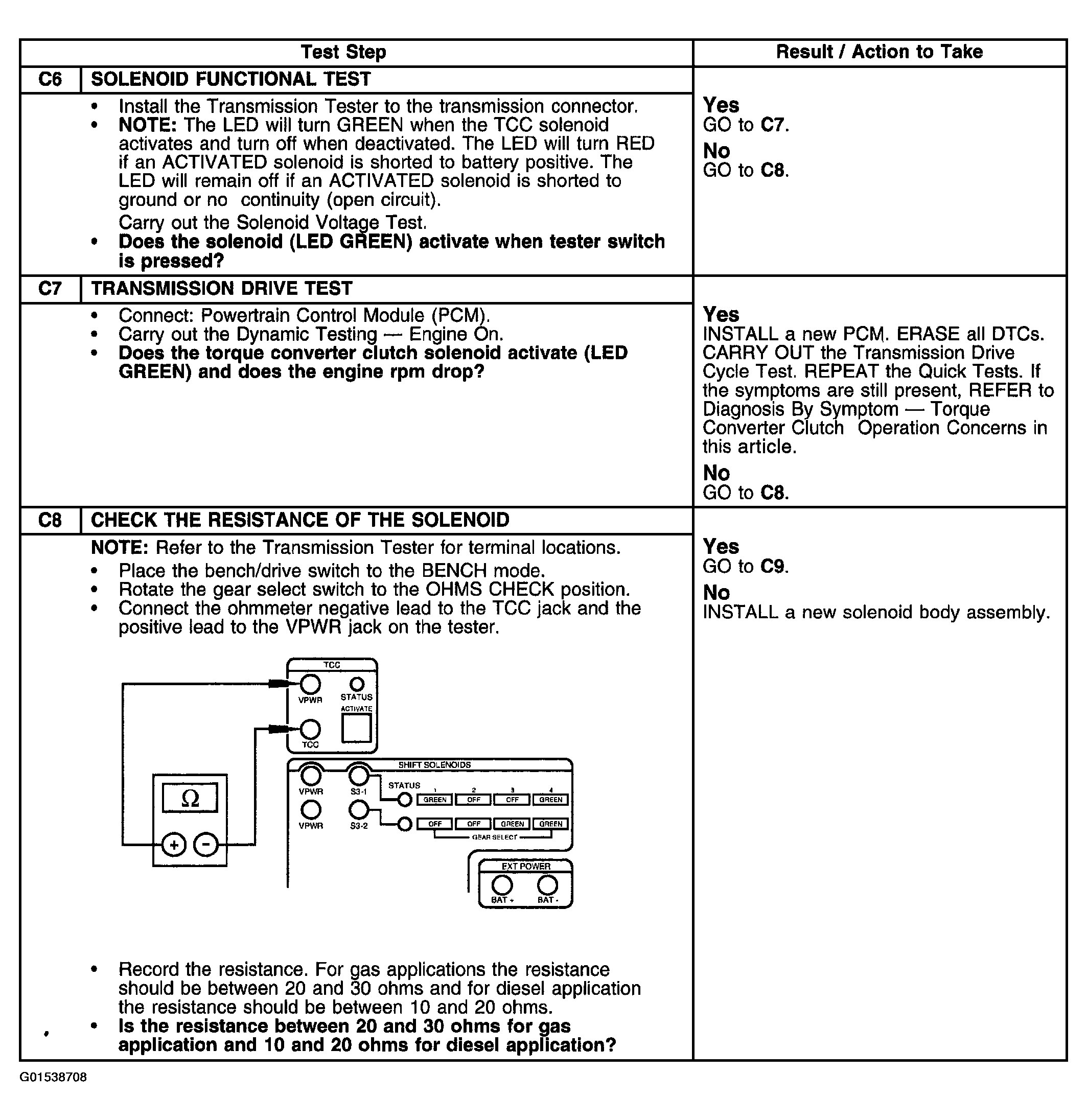

Fig 4: Pinpoint Test C: Torque Converter Clutch Solenoid (Step C6-C8)

Courtesy of FORD MOTOR CO.

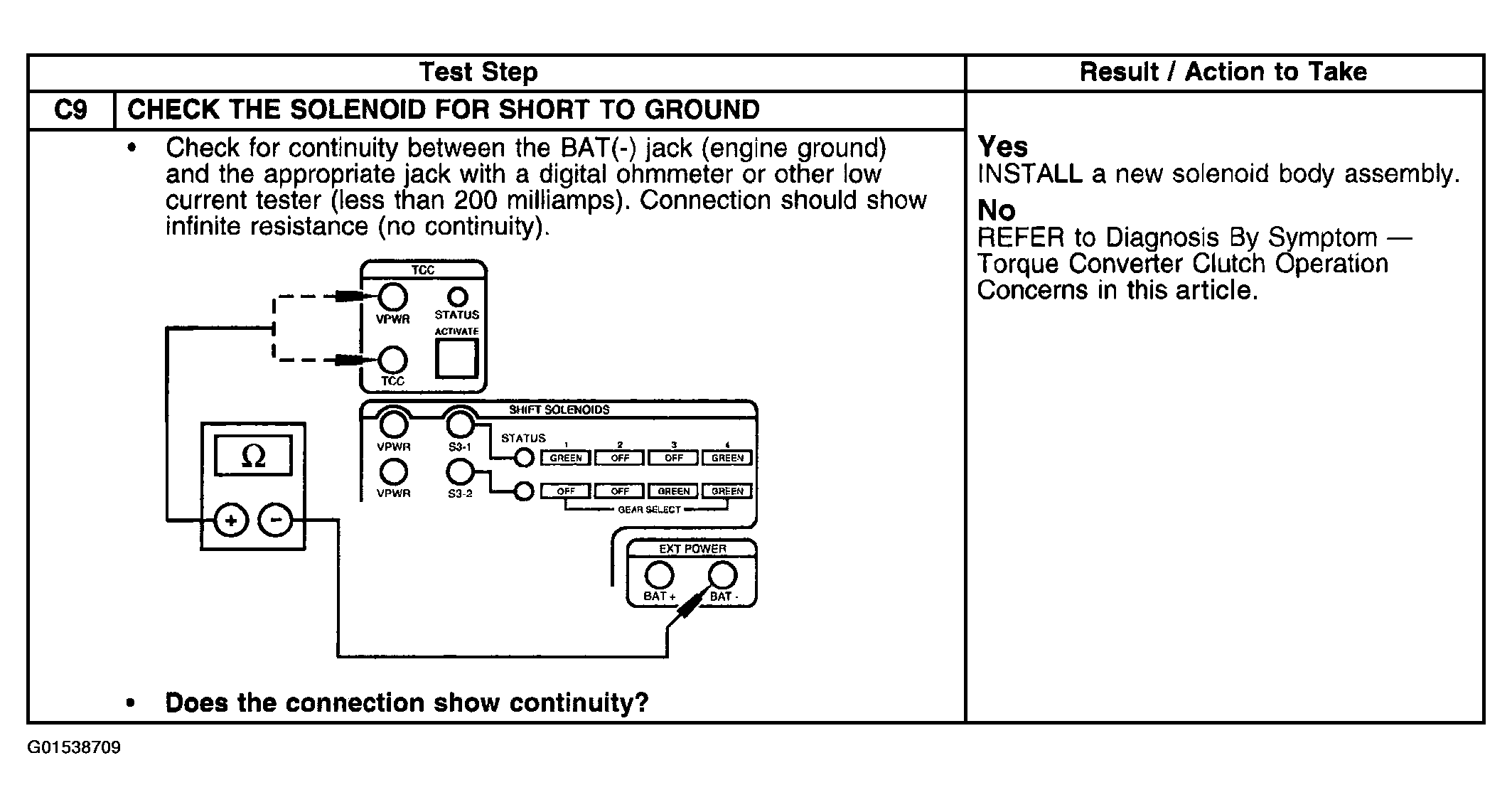

Fig 5: Pinpoint Test C: Torque Converter Clutch Solenoid (Step C9)

Courtesy of FORD MOTOR CO.
