Stall Speed Chart

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

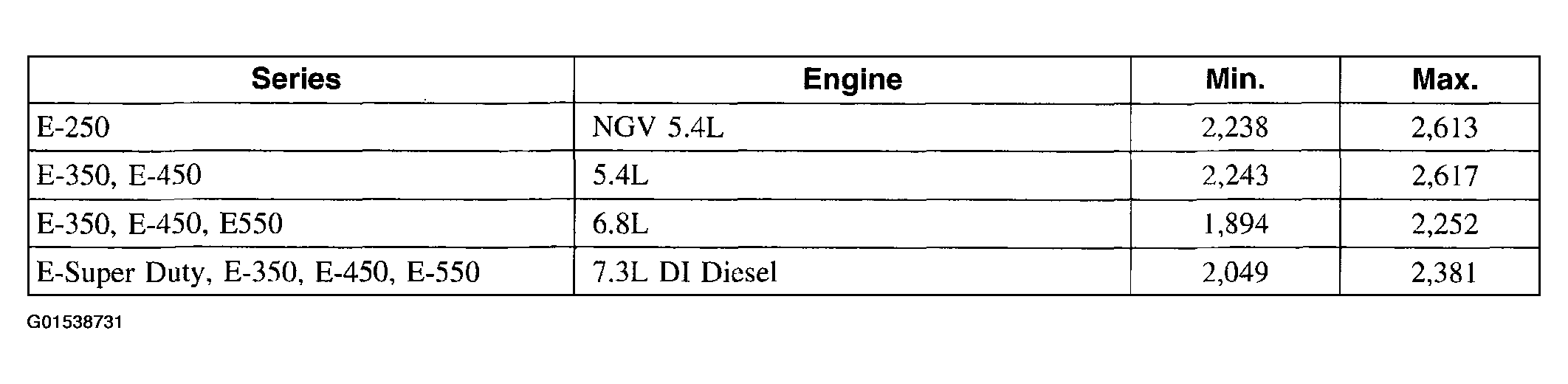

Fig 1: Stall Speed Chart
G01538731Courtesy of FORD MOTOR CO.

If the stall speeds were too high, refer to the following STALL SPEED DIAGNOSIS CHART . If the stall speeds were too low, check engine tune-up. If the engine is OK, remove the torque converter and check the torque converter reactor one-way clutch for slippage.
