Leakage Inspection: Notes

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

The 4R100 transmission has the following parts to prevent external fluid leakage:

Gaskets
Lip-type seals
O-ring seals
Seal rings
Seal grommets
Thread sealant
Cooler bypass valve (CBV) sealing washers

EXTERNAL SEALING

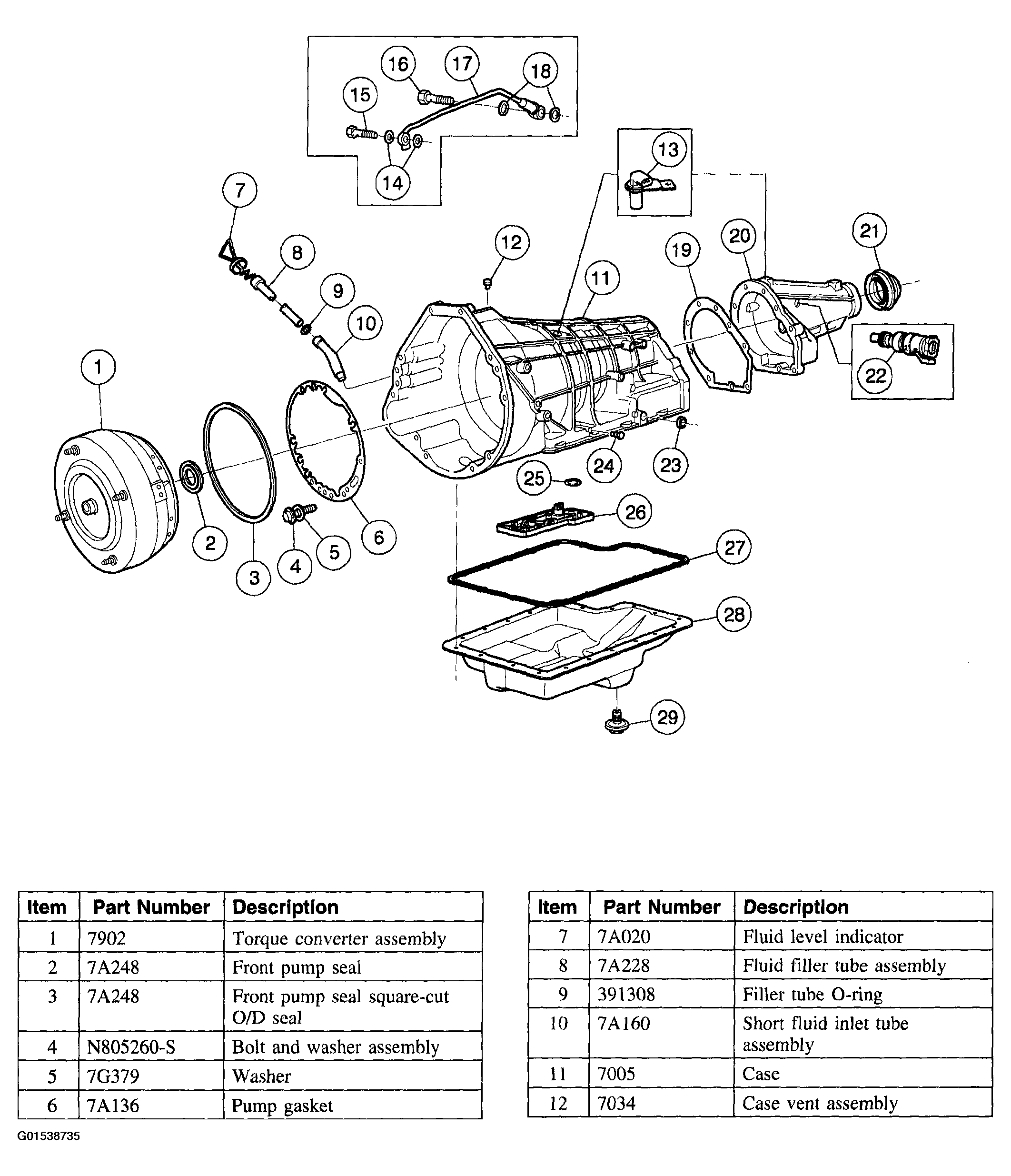

Fig 1: Identifying External Sealing Components (1 Of 2)

Courtesy of FORD MOTOR CO.

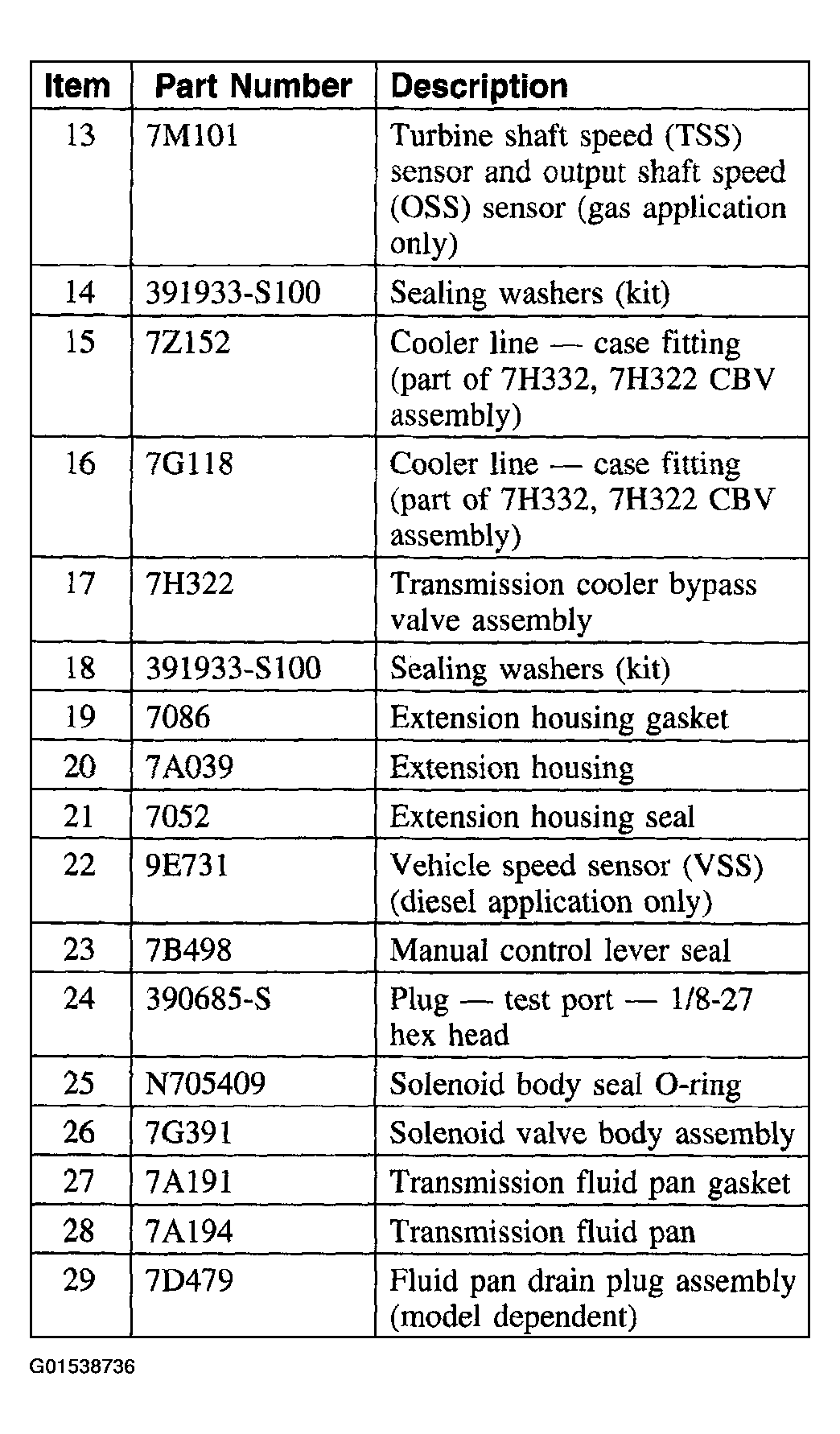

Fig 2: Identifying External Sealing Components (2 Of 2)

Courtesy of FORD MOTOR CO.

Leakage at the transmission pan-to-case gasket can often be stopped by tightening the retaining bolts to specification. Refer to TORQUE SPECIFICATIONS . If necessary, install a new pan-to-case gasket (only if gasket is damaged).

If leakage is found by the solenoid body connector, refer to MAIN CONTROL VALVE BODY - ACCUMULATOR BODY, SOLENOID BODY .

Check the transmission sealing washers on the cooler bypass valve (CBV), fluid filler tube connection at the transmission case. If leakage is found, install a new short fluid inlet tube.

Check the transmission sealing washers on the cooler bypass valve (CBV), fluid lines and fittings between the transmission and the fluid inlet short tube in the radiator tank for looseness, wear or damage. If leakage cannot be stopped by tightening a fluid line tube nut, install new parts. When fluid is found to be leaking between the case and the cooler line fitting, tighten the fitting to maximum specification. Refer to TRANSAXLE/TRANSMISSION COOLING .

CAUTION: Do not try to stop the fluid leak by increasing the torque beyond specification. This can cause damage to the case threads and/or case fittings.

If the leak continues, install a new cooler line fitting and/or sealing washers on cooler bypass valve and tighten to specification. The same procedure should be followed for fluid leaks between the radiator cooler and cooler line fittings.

Check the engine coolant in the radiator. If transmission fluid is present in the coolant, the transmission fluid cooler in the radiator is leaking.

The transmission fluid cooler can be further checked for leaks by disconnecting the lines from the cooler fittings and applying no more than 345 kPa (50 psi) air pressure to the fittings. Remove the radiator cap to relieve the pressure buildup at the exterior of the fluid cooler tank. If the transmission fluid cooler is leaking, will not hold pressure, or both, install a new transmission fluid cooler in the radiator.

If leakage is found at the manual control lever shaft, install a new seal.

When a converter drain plug leaks, remove the drain plug. Install a new drain plug and tighten to specification. Refer to TORQUE SPECIFICATIONS .

Check for fluid leaking from the end of the extension housing. Leakage can result from a damaged seal, missing garter spring or worn extension bushing, or damaged speed sensor plug. Install a new seal assembly, bushing, or both, as necessary.

Inspect the line pressure plug for leakage. Make sure it is tightened to specification. Refer to TORQUE SPECIFICATIONS . If tightening the plug does not stop the leak, the case threads and/or plug could be damaged. Remove the plug and inspect the plug and case thread for damage. Repair as necessary.

Check for leakage on or around the cooler bypass valve (CBV). Repair as required.
