Shift Concerns: Timing - Erratic/Hunting (Some/All) - Routine 212/312

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Diagnostic Routines - Shift Concerns: Timing - Erratic/Hunting (Some/All) - Routine 212/312 (1 Of 2)
G01538759Courtesy of FORD MOTOR CO.

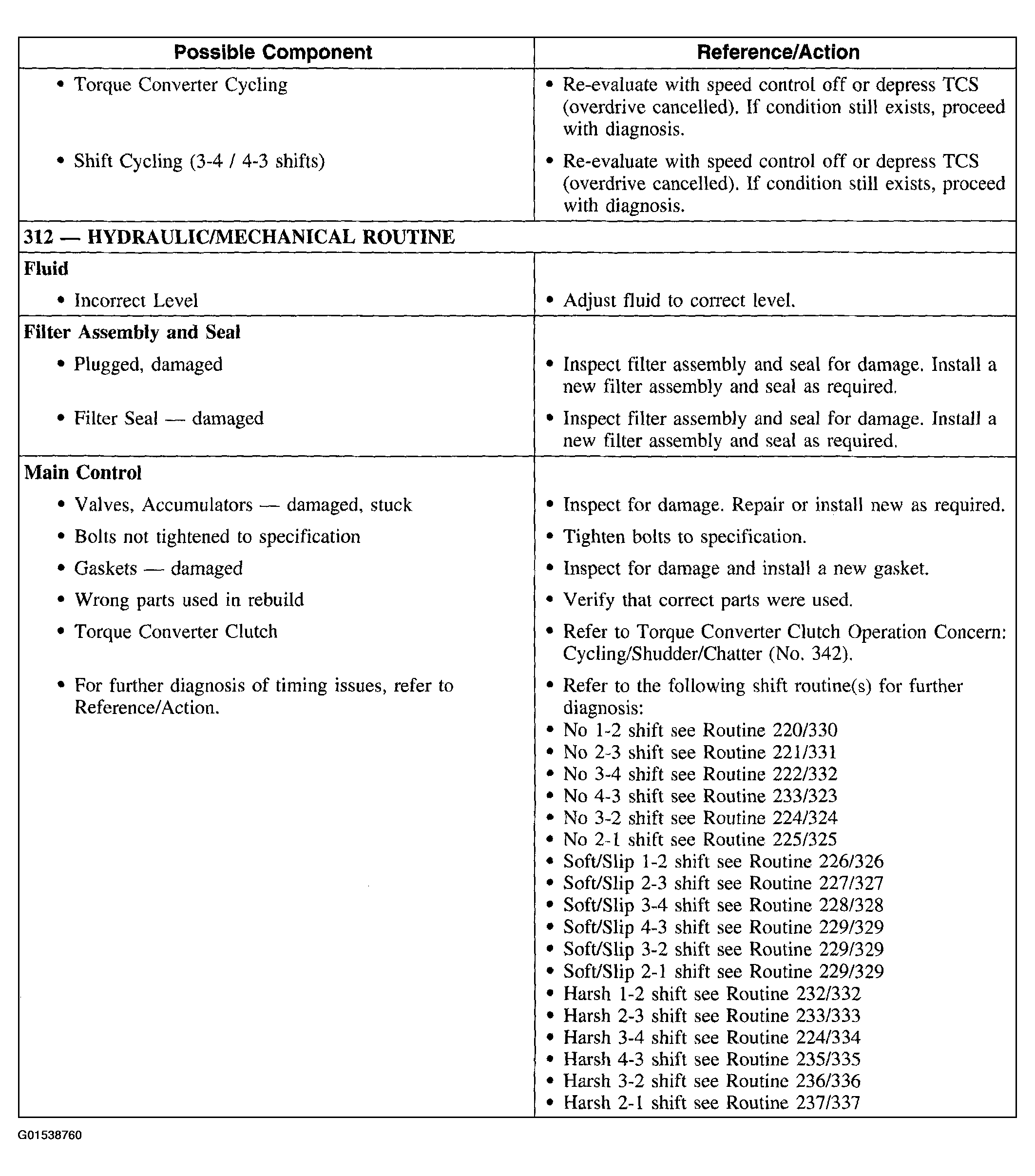

Fig 2: Diagnostic Routines - Shift Concerns: Timing - Erratic/Hunting (Some/All) - Routine 212/312 (2 Of 2)
G01538760Courtesy of FORD MOTOR CO.
